Modular automation for crushing, splitting and grinding- The integrated solution for sample preparation of the extractive industry
Area of application
Use
- Crushing, splitting, fine grinding of sample material for X-ray fluorescence analysis, diffractometry and other methods
Material
- Different materials, ores, drilling cores, oxidic material, ferroalloys, raw meal, clinker, cement, slag, ferroalloys (feed size 50 mm)
Operation mode
- Automatic
- Standalone
- Standalone with magazine
- Robot automation
All advantages at a glance
Preparation of large sample volumes
This modular machine is designed for the preparation of coarse ores, minerals and similar materials in the range of 1 to 15 kg input weight with a particle size of less than 50 mm to split off a representative sample of approx. 250g to 1,000g of finely pulverized sample material for analysis.
Modular design

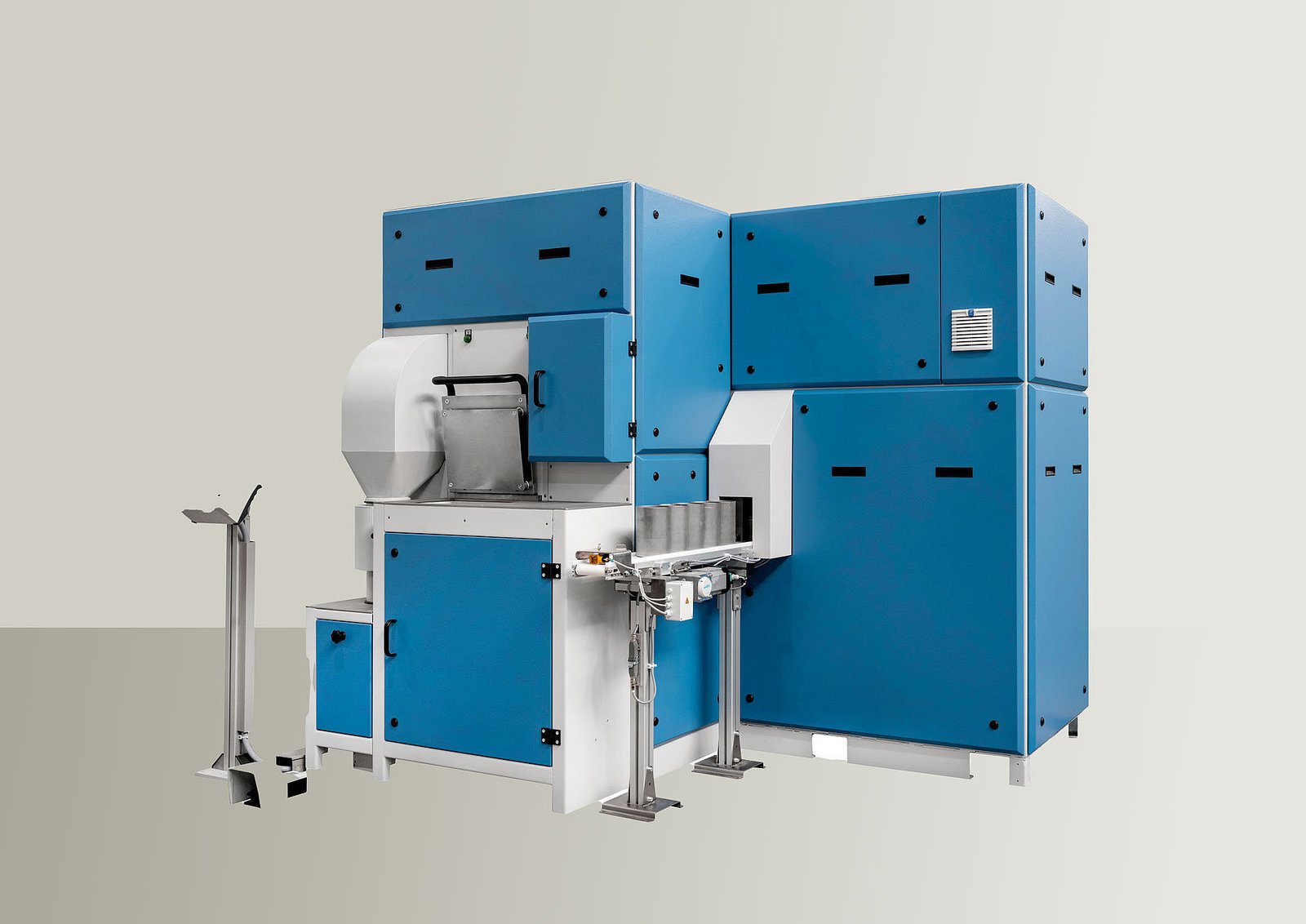

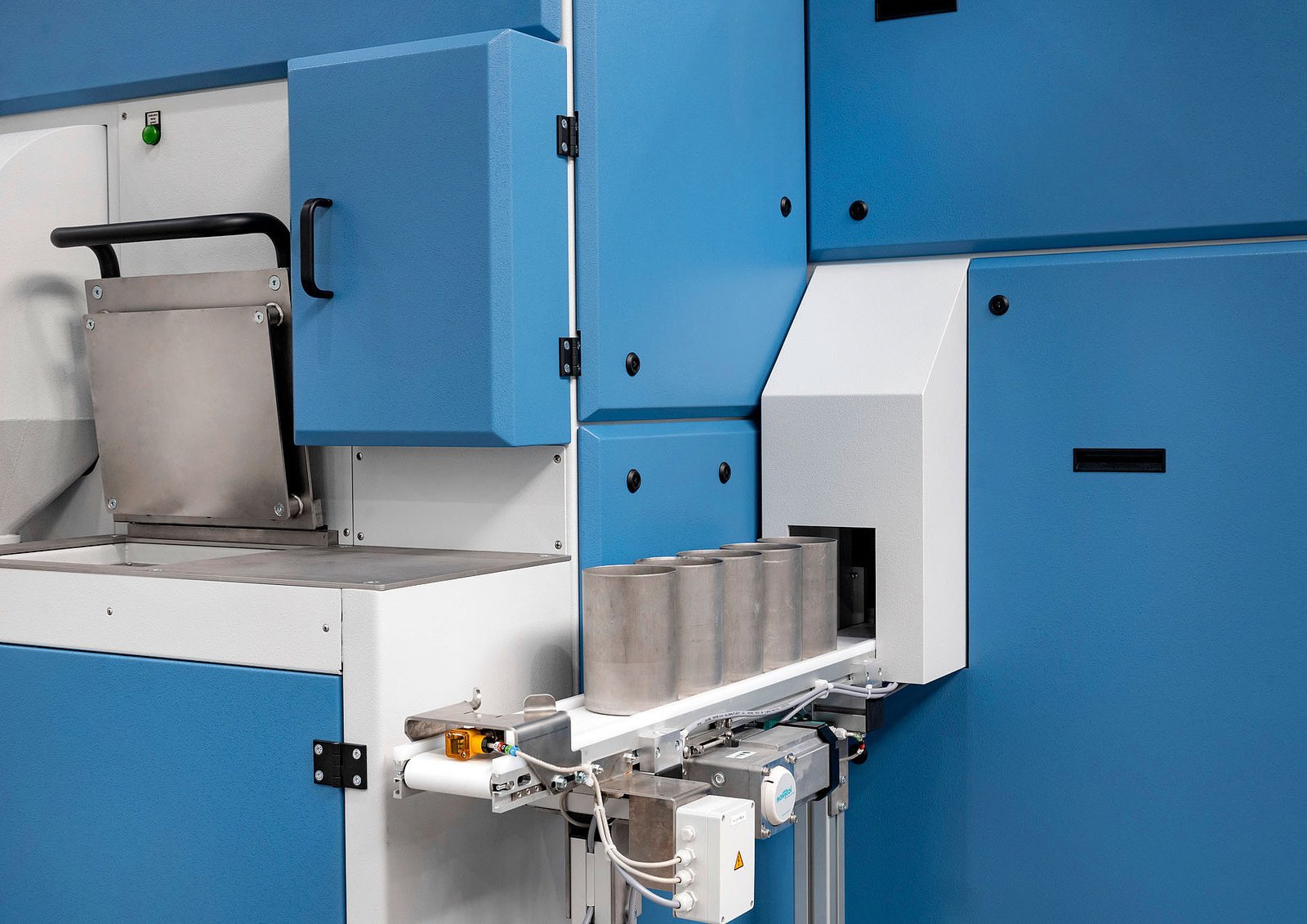

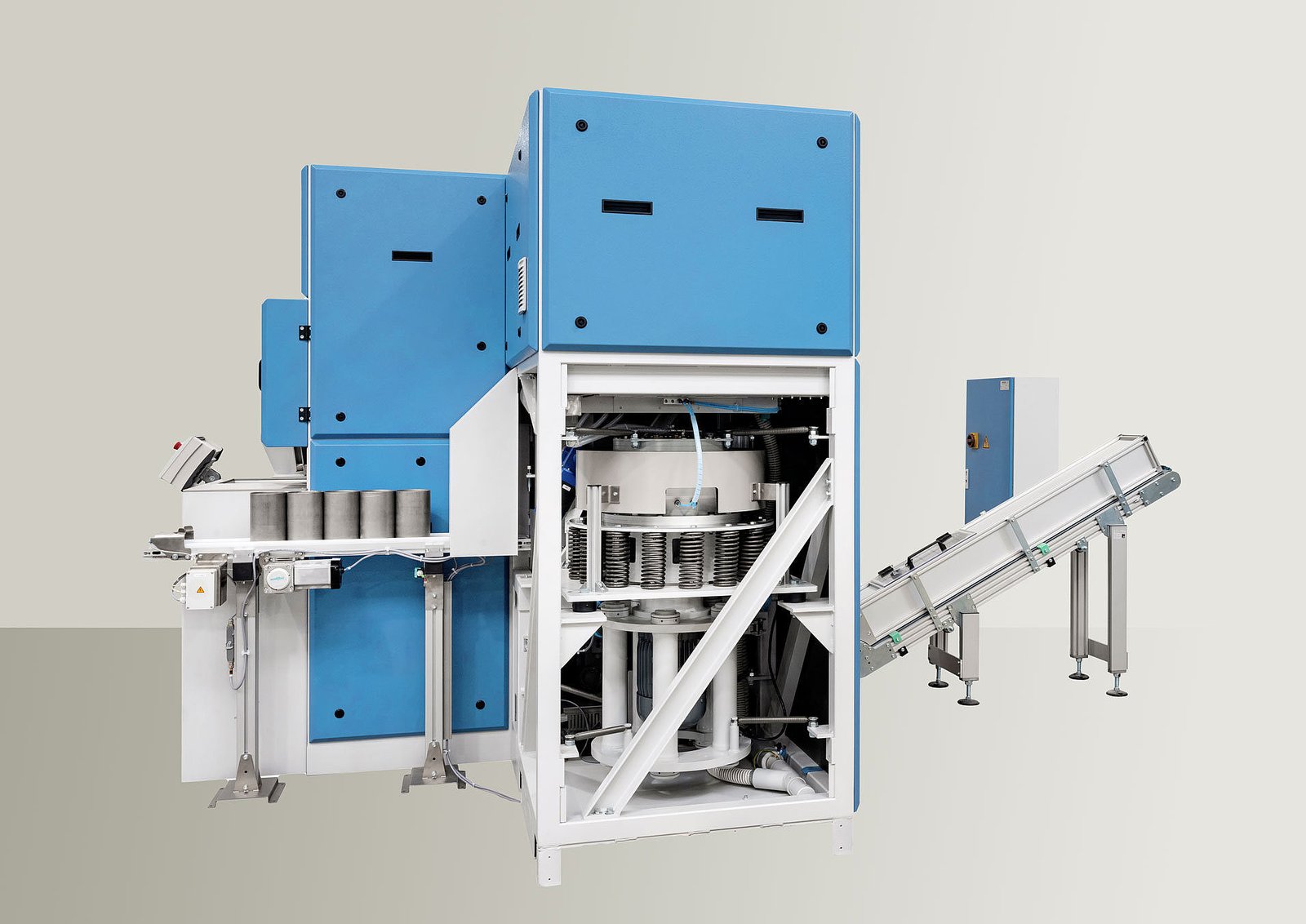

The machine consists of two individual working units: crusher/ linear Splitter (HP- BT) and mill HP- M1500. The crusher/linear splitter HP-BT is equipped with a manual sample input for coarse material, a weighing system, a lift for transporting the sample into the internal in feed position, a jaw crusher, a vibration feeder, a linear Splitter as well as an output for residue material and an input for empty sample cups. The mill HP-M1500 includes a sample take over the device from the crusher to the mill, a cup lift for transporting the sample into the grinding vessel, a sample outlet device, a cup weighing unit and a cup output transport.
Perfectly developed for the mining industry

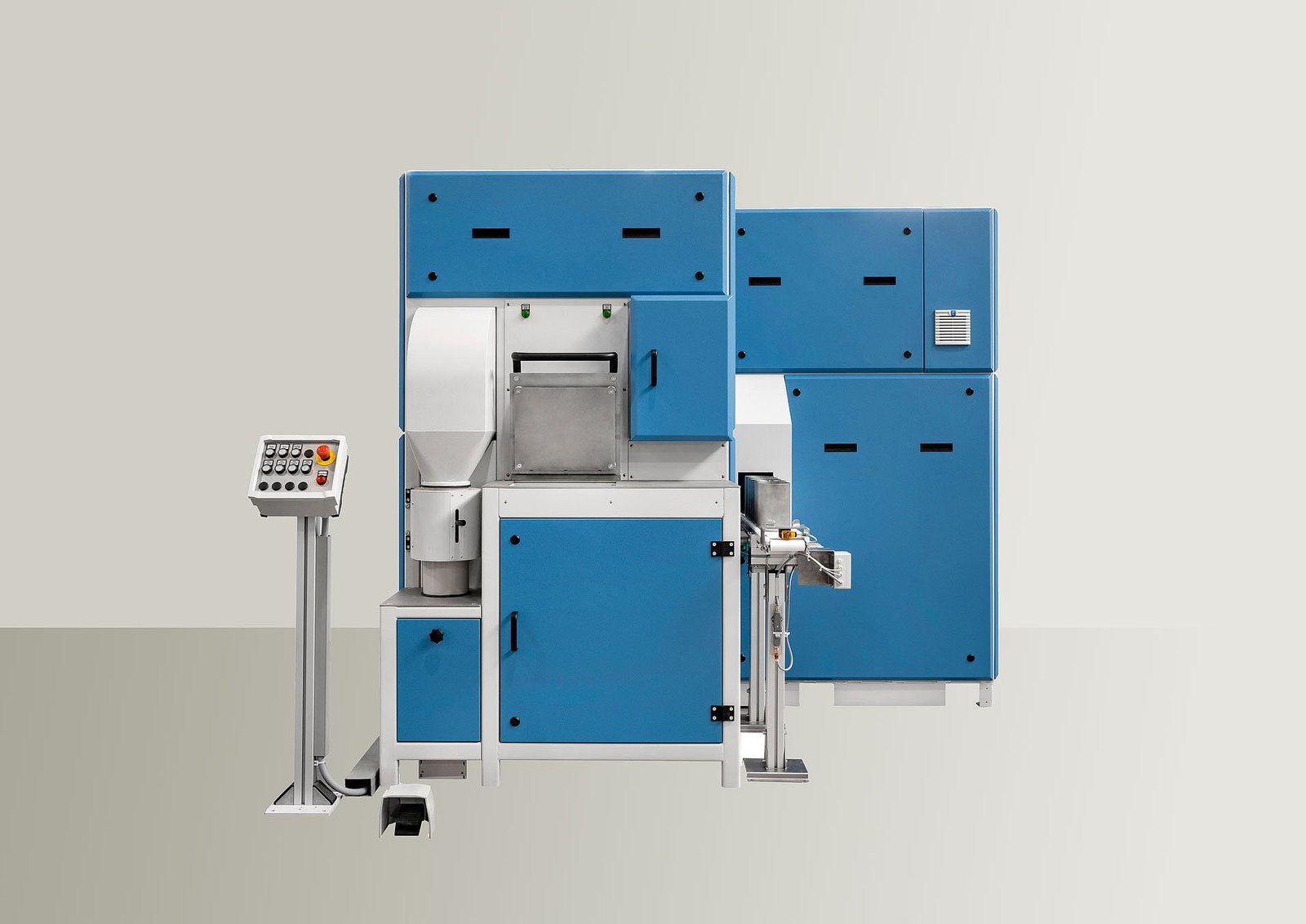

The operator selects one of the available individual programs by pushing a button on a separate front panel. The input flap will open automatically. All further preparation steps including cleaning are fully automatic without the need for operator`s invention. The operator just removes the ready ground material for further processing.
Design options:
- Loading magazine (cups)
- Output magazine (cups)
- Output magazine including dosing unit (vials)
- Grinding vessel chrome steel 1500 ccm
