The solution for manual crushing and pre-crushing of hard and brittle materials- Your choice for superior quality and cost efficiency

Use

• Crushing (jaw crusher) of sample material for further processing, e.g. grinding

Material

• Different materials, raw meal, clinker, cement, slag, ores, oxidic material, ferroalloys (feed size 50 mm)

Operation mode

• Manual
• Automatic (integrated in automatic system)

All advantages at a glance

Best in quality and cost efficiency

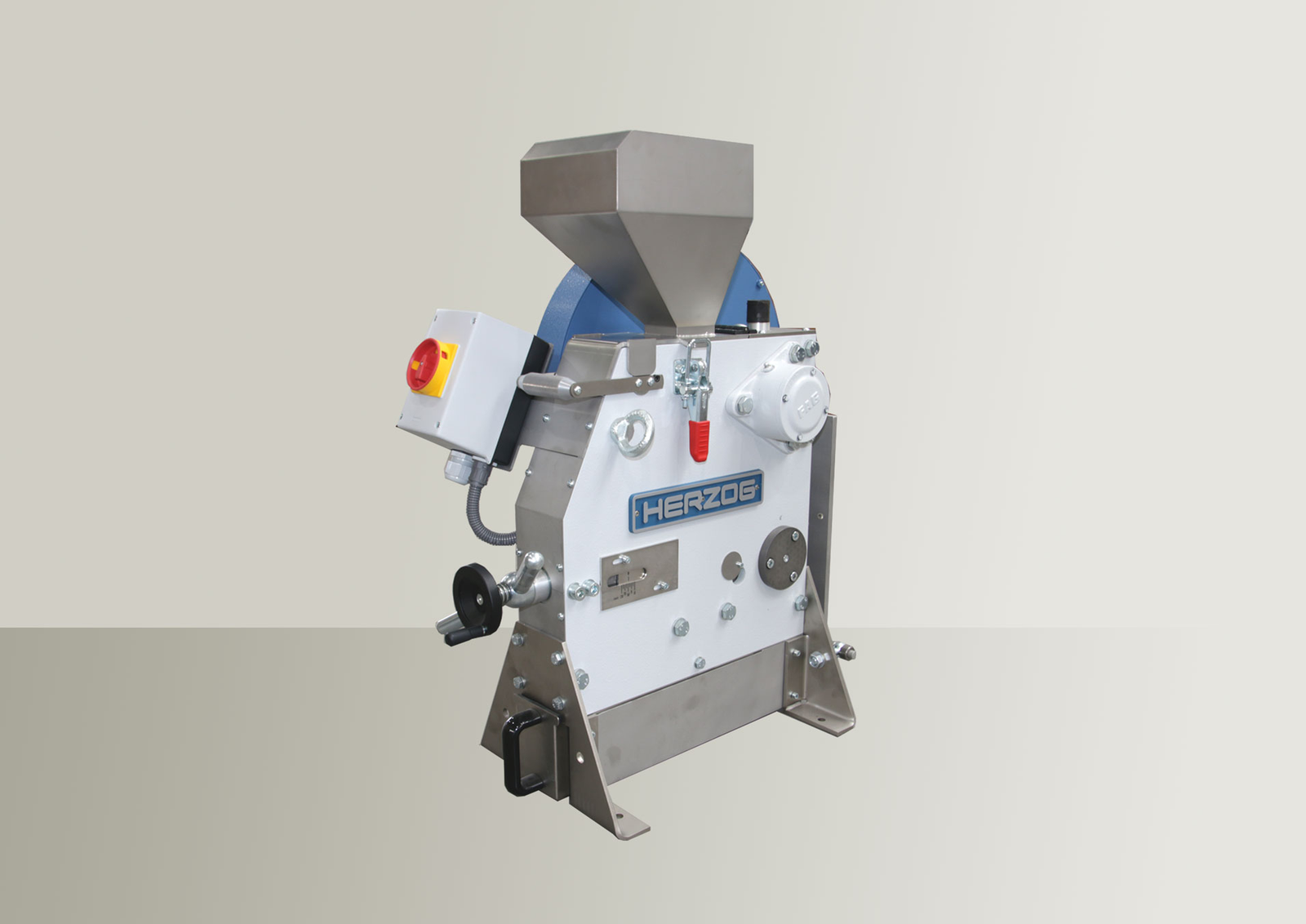

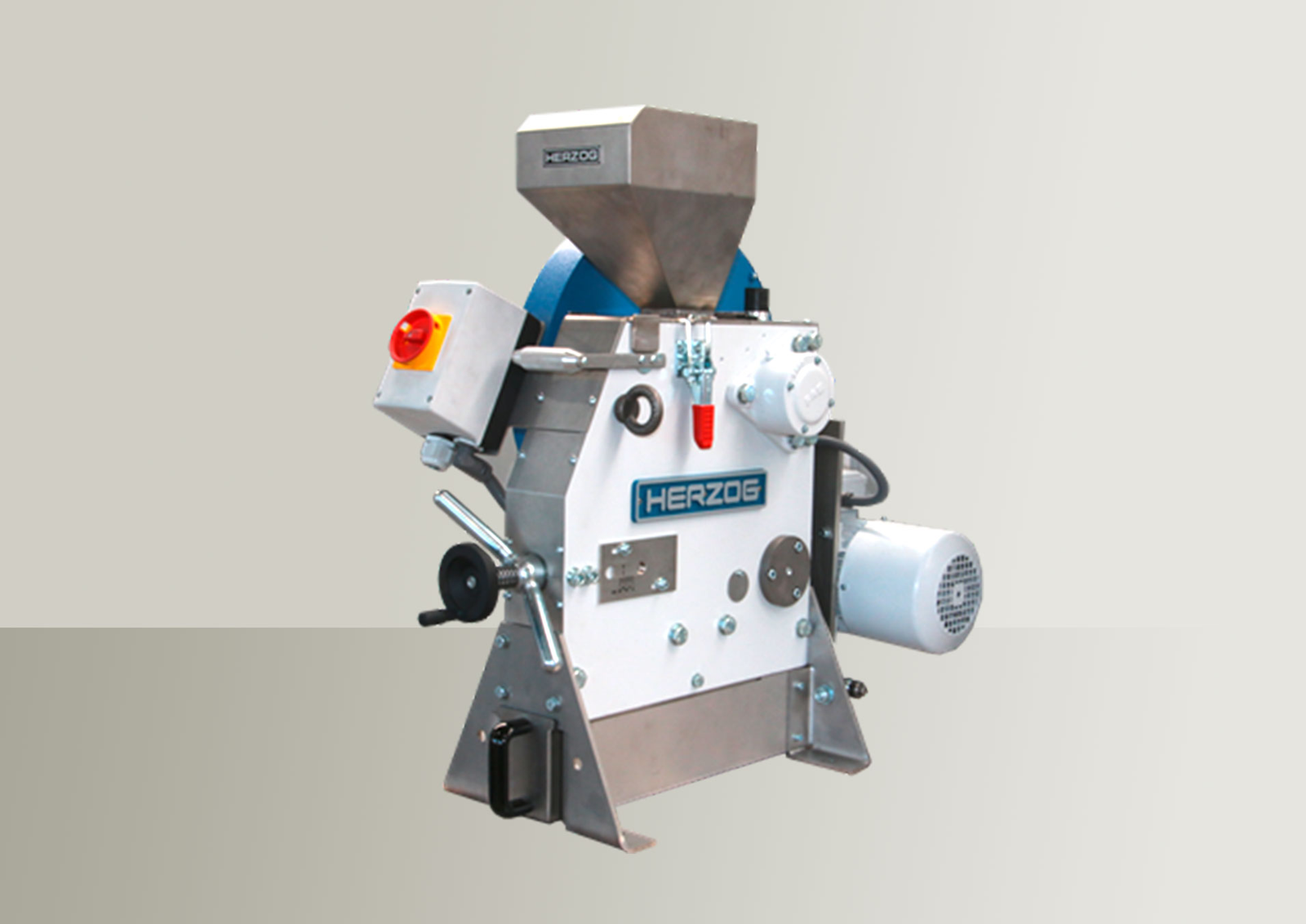

The HSC 550 is the new solution for crushing and pre-crushing of hard and brittle materials. The HSC 550 provides best HERZOG quality made in Germany and guarantees you trouble-free performance and long life. At the same time, affordable machine and jaw prices make the HSC 550 the first choice for economical sample preparation.

Wide range of applications

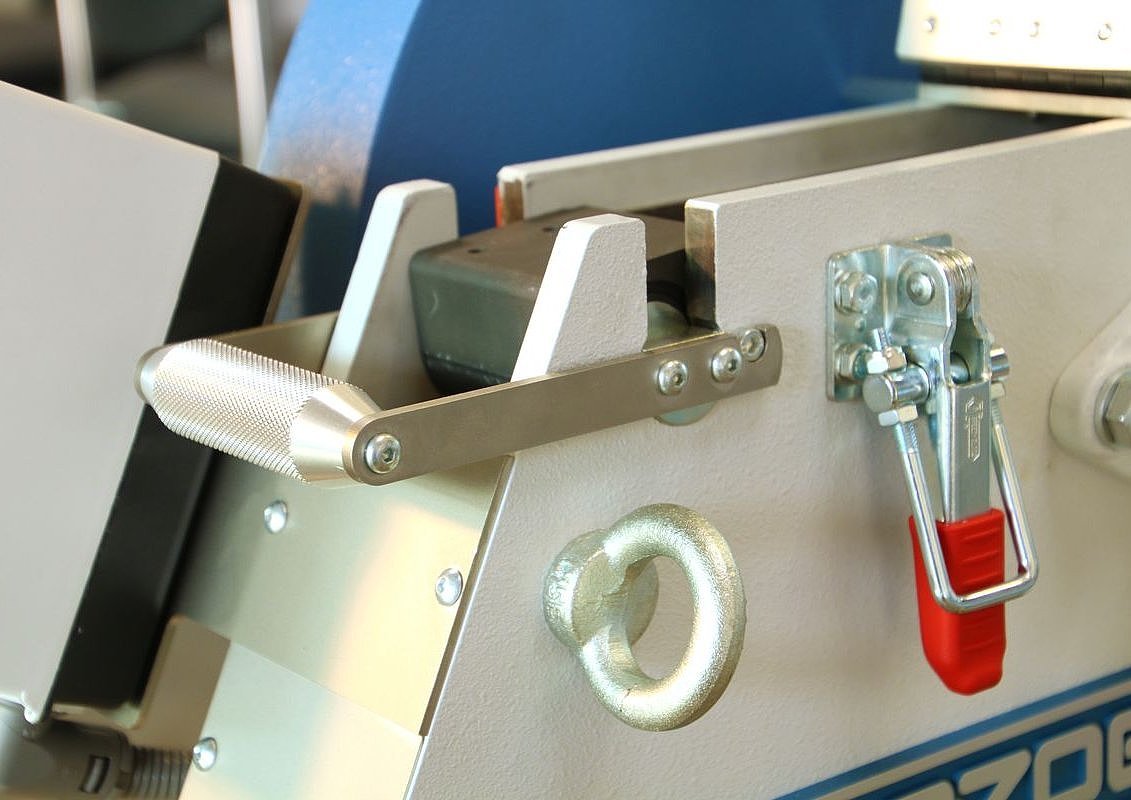

The HSC 550 is suitable for crushing a wide variety of different materials including alloys, slag, minerals, ores, quartz rocks and many more. Next to excellent crushing results the main focus is on ergonomic machine operation. The jaw can be easily unlocked and removed using the wide non-slip handle. This significantly facilitates inspection and cleaning of the crushing chamber. The gap width is continuously adjustable using a width display and allows easy zero-point adjustment for wear compensation.

Safe operation

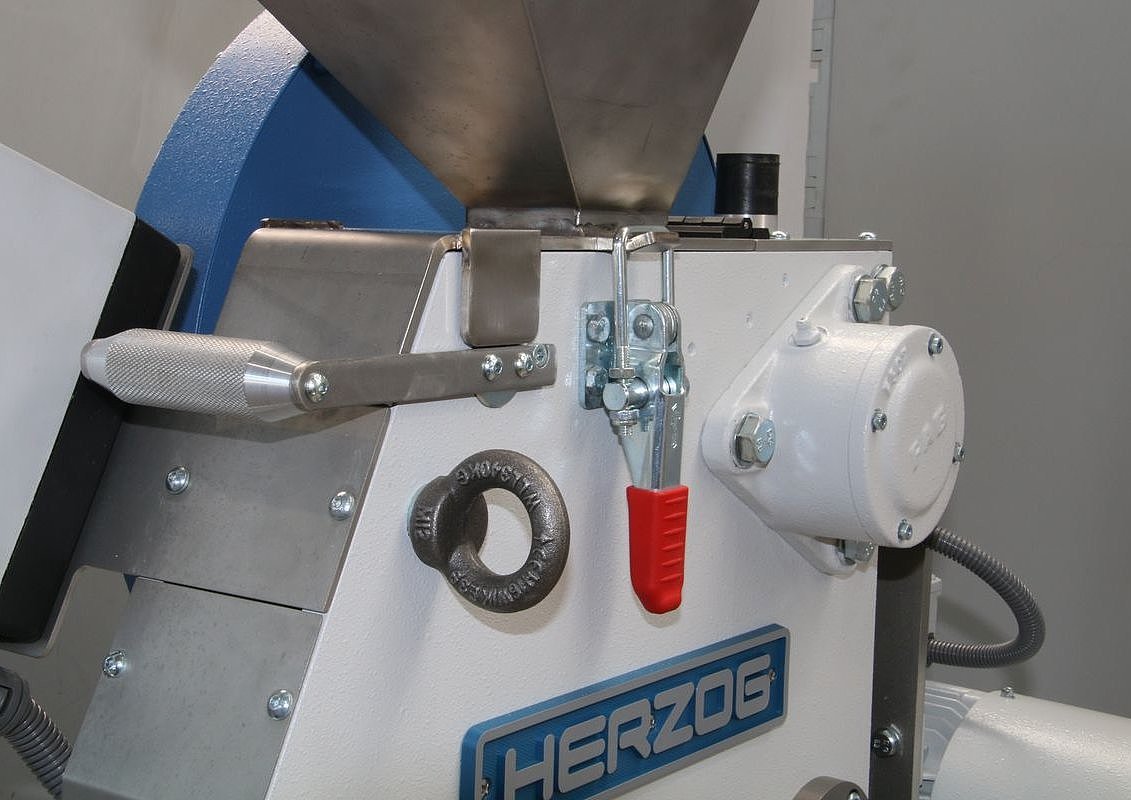

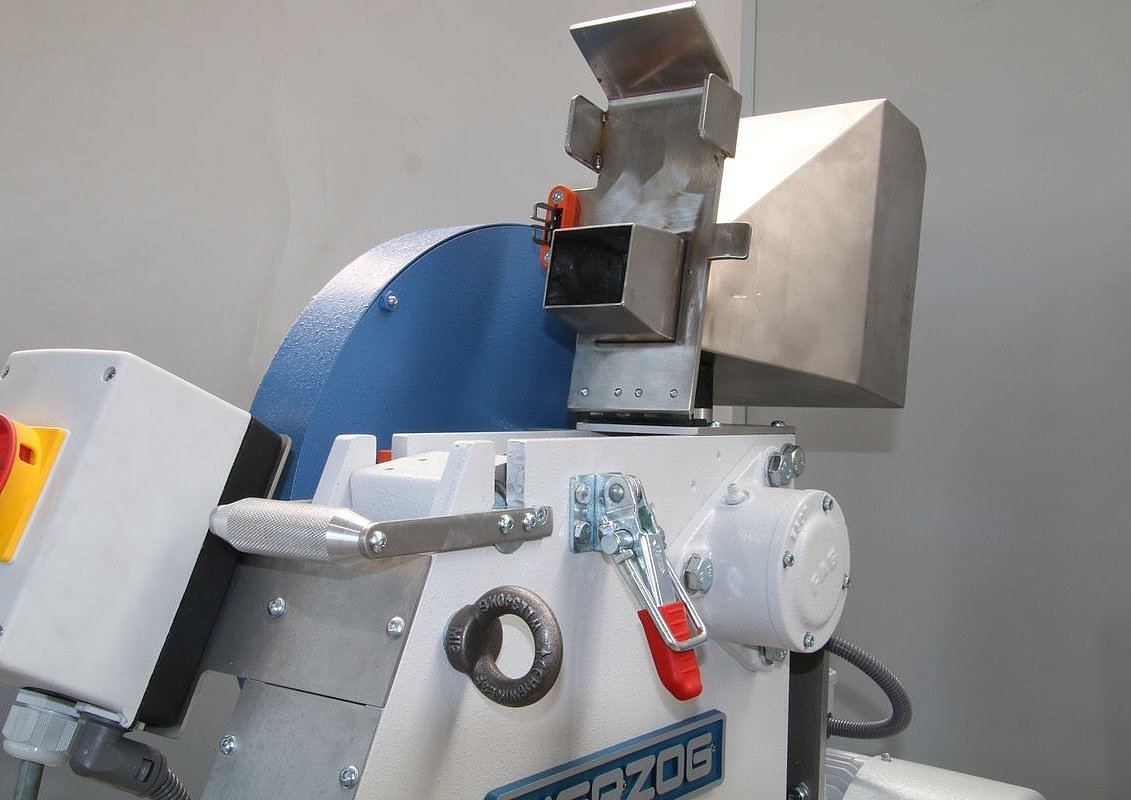

Safety features like no-rebound feed hopper and brake motor minimizes the risks of personal injury of the operator. The feed funnel cannot be reached into and can be simply hinged open for a fast cleaning of the grinding chamber.

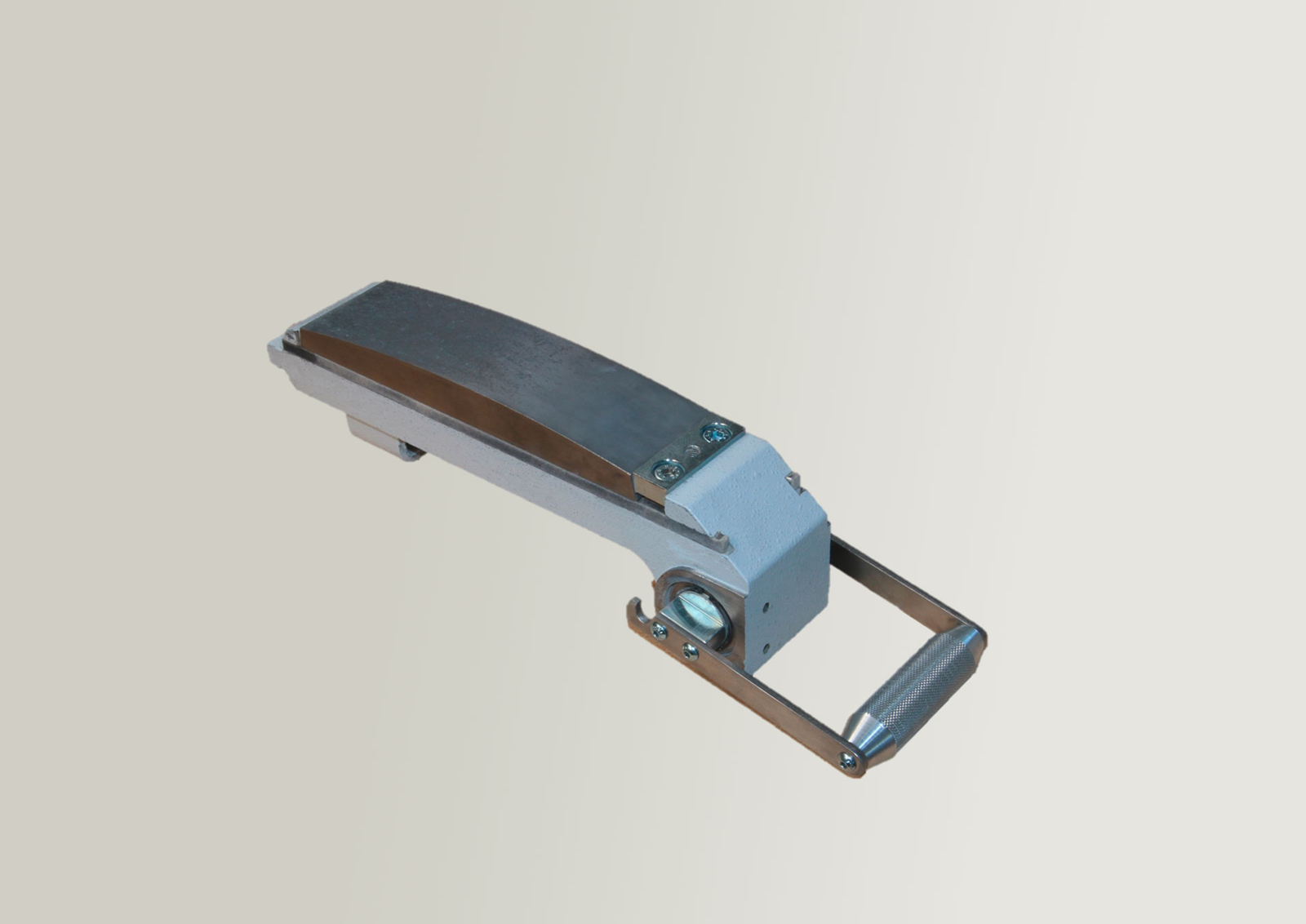

A safety switch and brake motor ensure immediate shut-down if the unit is incorrectly opened or switched on. The fixed crushing arm can be removed easily for cleaning and jaw replacement.

Ergonomic machine handling

The crushed material is collected in a drawer with a capacity of 2 litres respectively. In the case of larger quantities and free discharge downwards, one can work without a drawer.

Also suitable for automatic applications

Thanks to its flexible and robust design, the HSC 550 can also be integrated into an automatic machine or system using the appropriate handling and sensor systems. This enables, for example, the crushing of materials in the plant, e.g. in a clinker operating unit. Yet the HSC 550 can also be used in the laboratory, e.g. for crushing materials before feeding into a fine mill such as the HP-MA.

Design options:

• Jaws manganesse steel
• Jaws stainless steel
• Jaws tungsten carbide
• Jaws special steel grade on request
