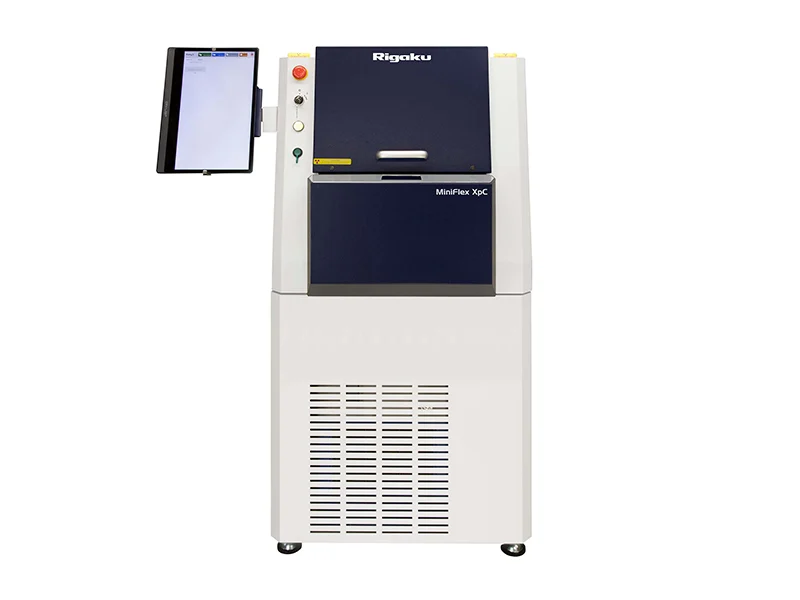

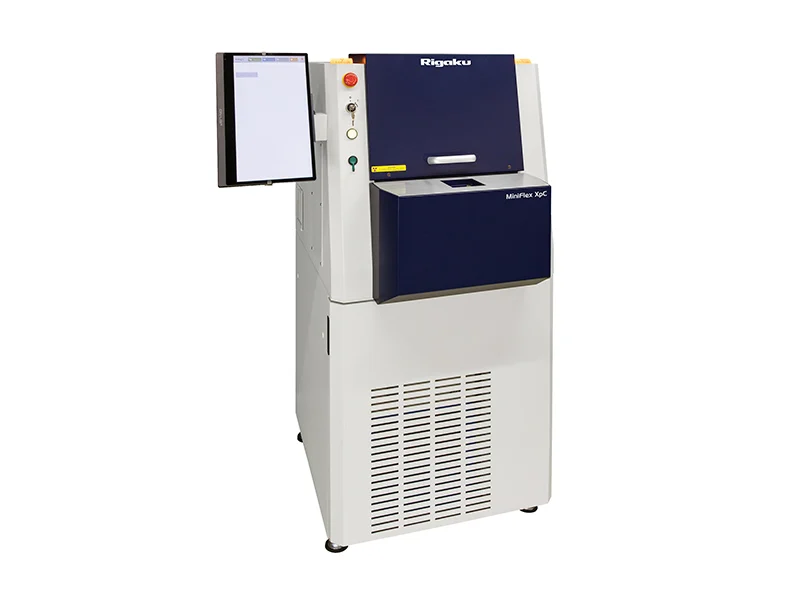

Compact X-ray Diffractometer
Advanced quality control system
In a move to bring lab-quality performance to the manufacturing floor, Rigaku introduces the MiniFlex XpC, a manufacturing-optimized powder diffractometer for fast and accurate quality control measurements. It is extremely easy to operate using Rigaku’s new EasyX quality control software, which requires minimal clicks to run. A minimal interface means there will be no accidental error variance from operator to operator. The MiniFlex XpC can be configured with a conveyor belt or robot for automated sample processing and collaboration with other instruments. With an 800 W X-ray source and a short-diameter goniometer, the system has the performance of a lab unit, and thus can greatly improve throughput for quality control measurements.
MiniFlex XpC Overview

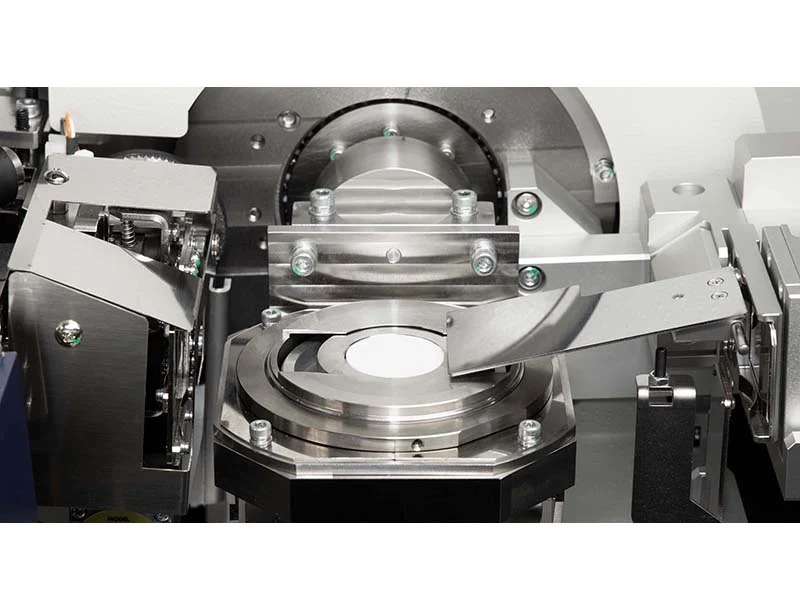

New sample loading mechanism
The optimal loading mechanism for quality control allows the operator to easily place the sample without opening the instrument door. This system also supports online measurement using a transfer robot. Workers can easily place samples not only online but also offline. A newly designed sample spinner can be used with a variety of sample holders.
Highly durable and highly accurate horizontal goniometer suitable for quality control
Using the technology cultivated with SmartLab, we have developed a new, durable, compact horizontal sample goniometer that is optimal for quality control.
New, compact, high-output X-ray generator
The MiniFlex XpC features a compact molded ceramic X-ray tube. The generator for the X-ray source has also been improved, enabling a high output of 800 W while being almost the same size as the 600 W generator of the MiniFlex desktop X-ray diffractometer.
High-resolution, high-speed one-dimensional detector boasting a wide detection area
The D/teX Ultra250 has a detection area 1.5 times larger than the D/teX Ultra2 used in the desktop MiniFlex, achieving higher-intensity measurement data. Therefore, measurement time can be reduced.
EasyX software for screening and quality control
Simple measurement, automatic analysis, display of results and pass/fail judgment are possible with this software, so even those who are unfamiliar with analysis can use it with confidence. In addition, the trend graph creation function makes it possible to visualize the results and tangible changes in the device status.
Automation support
The MiniFlex XpC can be connected to automation equipment by combining with a robot arm or a conveyor belt (both optional). Industry standard sample holders (steel rings) are supported as standard. This apparatus achieves the world’s smallest footprint for an online diffractometer (approx. 1 m²).
MiniFlex XpC Features
Rigaku provides X-ray diffractometers for quality control developed using the X-ray diffractometer technology cultivated for research and development over many years. It is easy for anyone to use and stable analysis results can be obtained regardless of the operator, so there is no difference in the results between operators. Work efficiency can be improved using the sample loading mechanism and D/teX Ultra250 detector.
- The world’s smallest footprint for an online diffractometer
- 100% compatible with sample holders of major online system vendors
- Utilizes newly developed, compact 800 W generator and compact X-ray tube
- Able to connect with a sample-loading robot
- High-resolution, high-speed 1D detector with a wide detection area
- θ-θ sample horizontal goniometer
- EasyX software:
- Touch panel operation
- Runs within 3 taps from measurement to data analysis
- Based on SmartLab Studio II
- Languages: Japanese, English, Chinese
