Anchors produces refractory anchors for bricks linings.
B1 : “BSTP” type anchors
BSTP1/BSTP2 : Brick anchors for linings composed of refractory insulating bricks, this type of lining is common in petrochemistry for example.
B2 : “BR” type anchors
Anchors for lining on dense refractory bricks. Anchors usually made from steel casing or mécano-soudé.

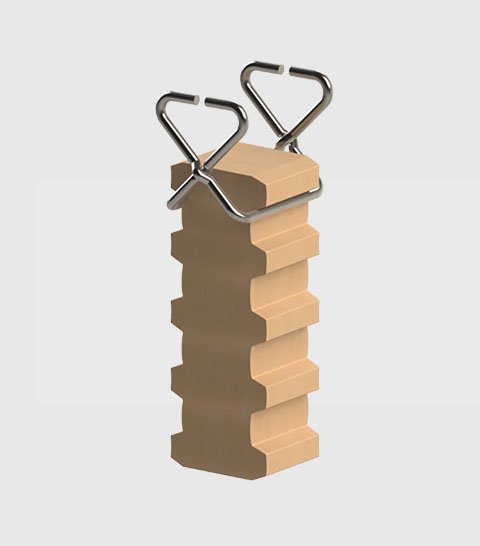

B3 : “RSA” type anchors
Some applications don’t allow the use of metallic anchors, because the temperatures are too high, too many thermal variations, a corrosive atmosphere…Typical example: slab reheating furnace in the steel industry. In this case the lining is anchored with ceramic bricks anchors.These bricks are held by a system of anchors named “scissors” made in round wire and which is directly attached to the metallic outerframe of the furnace. This system corresponds to one set composed of 2 scissors assembled together with a double articulation like a jaw.
B4 : “ANC” type anchors
Ceramic anchoring elements are used because metallic anchoring systems reach their limits here. Usually on 60% of Alumina content. Higher % on request. Available in dimensions 305, 356 and 406 mm other dim on request.
B5 : “C-CLIP” type anchors
Claw anchors are in flat material to maintain ceramic anchoring bricks on the wall or hanging from the ceiling of the furnace.
B6 : “RI” type anchors
shear connector used to attach refractory ceramic tiles in the installations of refuse incinerators.
