Abrasion tester for natural stones and concrete

Abrasion tester for natural stones and concrete

Categories: , , , , , , , , , ,
Facebook
Twitter
LinkedIn
WhatsApp
verschleisstester-naturstein

Product Details

Article number: 17.5112

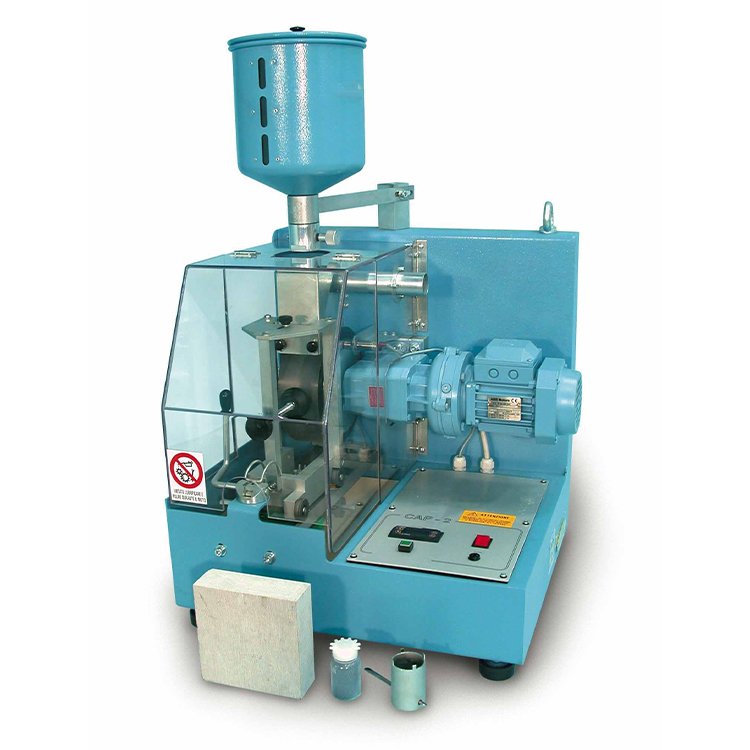

According to EN 1338, EN 1341, EN 1342, EN 1343, EN 14157, CEN-TC 178, UNI 10532, BS 6717. For the determination of the resistance to abrasion and wear of concrete products and natural stones, by measuring the length of a groove produced on the specimen surface by a disc with thickness of 70 mm that rotates at controlled speed and makes a constant pressure on the specimen. A charge of abrasive material must be interposed between the disc and the specimen. The instrument is supplied with electronic speed controller and shut­ting off device after the set number of revolutions, 1 kg of abrasive material.

Dimensions
(W x D x H) = 450 x 420 x 800 mm
Weight: 85 kg
230 V / 50 Hz / 500 W
