Article number: 22.1404.02-SV-i20

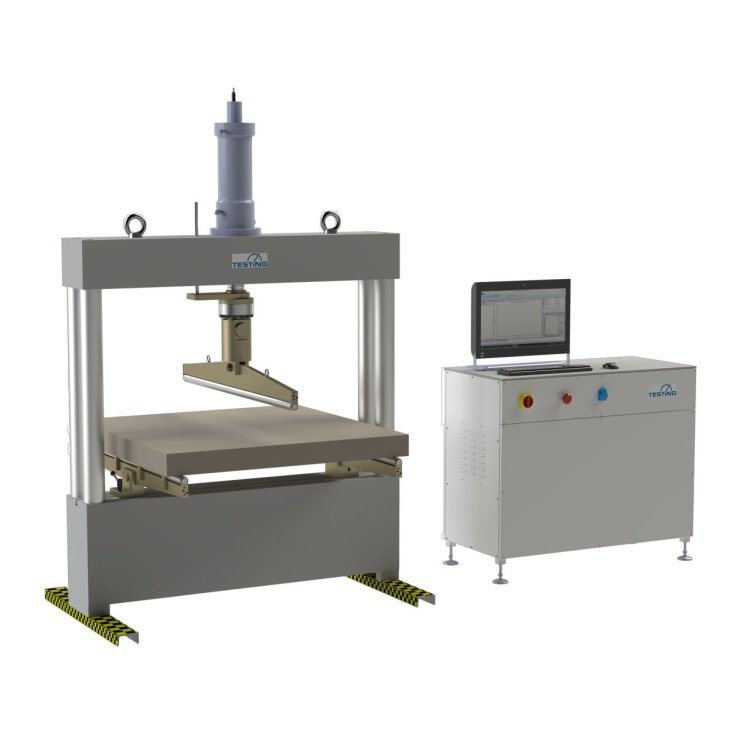

The flexure testing machine is suitable for flexural tensile strength testing of a wide variety of concrete specimens, such as concrete beams, curbs, concrete slabs, bricks, etc. The solid steel frame is extremely torsion-resistant, the columns are clamped without any play. A displacement measuring system can be optionally installed in the cylinder, allowing displacement and deformation controlled tests.
Norms: DIN EN 12390-5, 1339, 1340, ASTM C78, C293, C469, C496, C1019, C109/C109M
Other force ranges:
100 kN, 150 kN, 200 kN
Frame type: 4-column
Force display range: 0 – 100 kN
Force measuring range: 1 – 100 kN, class 1
Stroke: 220 mm
Distance between columns: Front 900 mm / Side 800 mm
Bending roll length: 620 mm
Bending roll diameter: Ø 40 mm
Bending roll distance at the bottom: 80 – 840 mm
Safety
The testing machine is equipped with an impact-resistant, transparent polycarbonate test chamber made of polycarbonate.
Control Unit
Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories). Automatic break detection.
Dimensions
Test frame: (W x D x H) = 1110 x 680 x 2000 mm
Weight: approx. 1000 kg
Control cabinet: (W x D x H) = 1200 x 570 x 1050 mm
Weight: approx. 280 kg
3 ~ 400 V / 50 Hz / 1,1 kW
