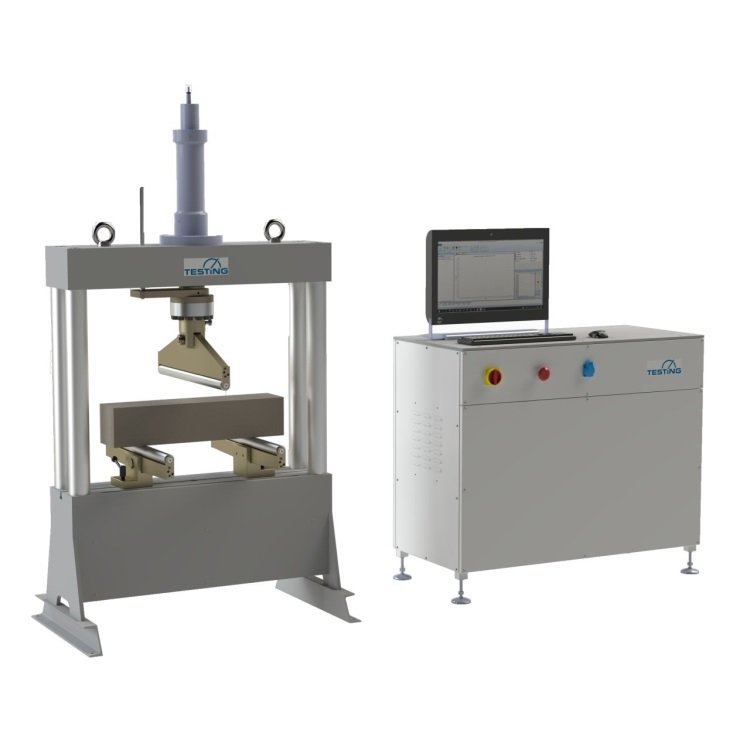

The bending testing machine is suitable for flexural strength tests of various concrete specimens, such as Concrete beams, curbs, concrete slabs, bricks etc High accuracy class 1 according to DIN EN 7500-1 in a very wide measuring range.
Norms: DIN EN 12390-5, 1339, 1340, ASTM C78, C293, C469, C496, C1019, C109/C109M
Other force ranges:
22.1401.01-SV-i20: 100 kN
22.1403.01-SV-i20: 200 kN
22.1404.01-SV-i20: 300 kN
Technical Data
Frame type: 4-column
Force display range: 0 – 150 kN
Force measuring range: 1,5 – 150 kN, class 1 (individual measuring range class 1 optionally possible)
Stroke: 220 mm
Distance between columns: Front 900 mm / Side 80 mm
Bending roll length: 620 mm
Bending roll diameter: Ø40 mm (optionally other diameters and lengths)
Bending roll distance at the bottom: 80 – 840 mm
Safety
A large area of the testing machine is equipped with an impact-resistant, transparent test room protection made of polycarbonate.
Control Unit
Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories). Automatic break detection.
