Article number: 2.0276-3621/17

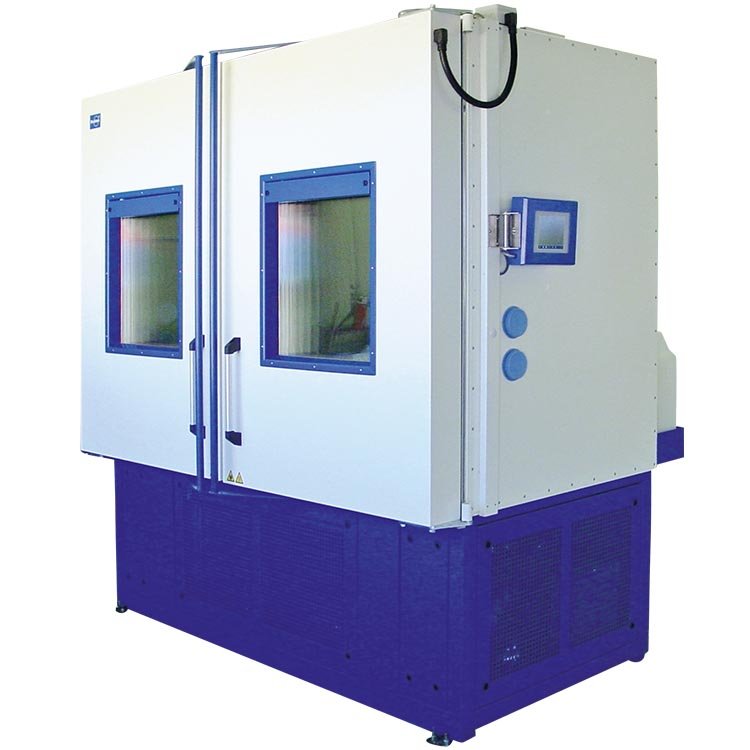

With control for humidity, temperature and CO2, especially for analysis of the potential carbonization resistance of concrete test cube (120 x 120 x 340 mm). Different temperatures, humidity and gas volumes can be maintained in the two compartments.
- Technical data
- Temperature of the test chamber:
Temperature range: 5 – 100°C
Humidity difference: +/- 0,2 – +/- 0,5 K
Humidity of the test chamber
Humidity range: 10 – 95%
Humidity difference: < +/- 3%
CO2 concentration
Dosing volume flow: 20 ml/s
Measuring range for the sensors: 0 – 10% CO2
Display precision: 0,2‰
Volume per chamber: 600 liter - Dimensions
- Interior dim. of both chambers:
(W x D x H) = 770 x 745 x 1020 mm
External dimensions:
(W x D x H) = 2700 x 1600 x 2360 mm
230 / 400 V / 3-phase + N + PE / 50 Hz
