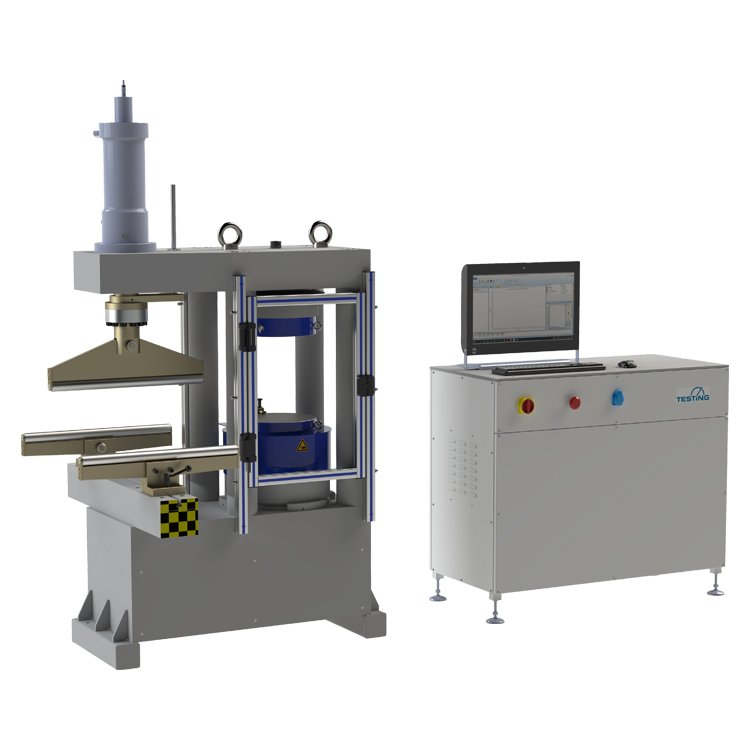

Article number: 22.2404.01-SV-i20
Norms: DIN EN 12390-3, 12504-1, 12390-6, 12390-13, 1338, 206, ASTM C39, C140, C1314, E4, AASHTO T22, DIN EN 12390-5, 1339, 1340, ASTM C78, C293, C469, C496, C1019, C109/C109M
Other force ranges:
22.2401.01-SV-i20: 3000 / 100 kN
22.2402.01-SV-i20: 3000 / 150 kN
22.2403.01-SV-i20: 3000 / 200 kN
Samples
Cubes (edge length): 200, 150, 100 mm
Cylinder (height): 300, 200 mm
Devices (height): up to 330 mm e.g. splitting tensile
Beams: 150 x 150 x 750 / 100 x 100 x 500
Other samples possible
Technical Specifications Compression Side
Force display range: 0 – 3000 kN
Force measuring range: 60 – 3000kN, class 1
Stroke: 100 mm
Test chamber height: 340 mm
Column spacing: front 360 mm; side 260 mm
Machine platens: Ø 320 mm according to DIN EN 12390-4
Optional rectangular machine platen variants
Technical Specifications Side
Frame type: open C-Frame
Force display range: 0 – 300 kN
Force measuring range: 3 – 300kN, class 1
Stroke: 220 mm
Distance between Bending edges: 220 mm
Bending roll length: 620 mm
Bending roll diameter: Ø 40 mm
Distance between lower bending rolls: 70 – 850 mm
Optional addition length and diameter
Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories), automatic break detection.
Dmensions
Control Unit: (W x D x H) = 1200 x 570 x 1040 mm
Weight: approx. 350 kg
3 ~ 400 V / 50 Hz – 1.5 kW
Test Frame: (W x D x H) = 1170 x 1040 x 2280 mm
Weight: approx. 2500 kg
