Article number: 21.2401.01-SV-i20

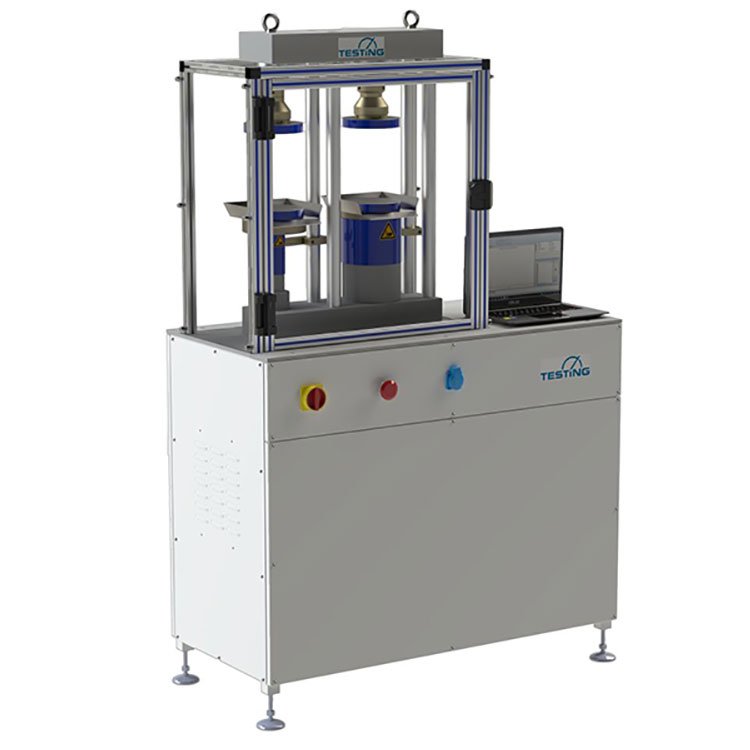

The testing machine combination is suitable for compressive strength tests of gypsum, mortar- and cement samples, as well as light- and aerated concrete. The massive steel frame is extremely stiff, the columns are tensioned without any play. On both side is a simple insertion of different test fixture, inserts and devices possible. According to DIN EN 196 and class 1 according to DIN EN 7500-1.
Norms: DIN EN 196, 1015, ISO 679, BS 3892, ASTM C109, ASTM C348, C349 (and many more).
Other force ranges:
Pressure side: 50kN, 100kN, 150kN, 200kN
Bending side: 10kN, 20kN, 25kN, 30kN
Technical Specifications Compression Side
Force display range: 0 – 300 kN
Force measuring range: 6 – 300kN, class 1
Stroke: 60 mm
Test chamber height: max. 210 mm
Column spacing: Front 280 mm
Machine platens Ø165 mm acc. to EN 196
(Optional further machine platens dimension and fixed test inserts available)
Technical Specifications Bending Side
Frame type: open C-Frame
Force display range: 0 – 15 kN
Force measuring range: 0,3 – 15kN, class 1
Stroke: 60 mm
Test chamber height: max. 210 mm
Machine platens Ø165 mm acc. to EN 196
(Optional further machine platens dimension and fixed test inserts available)
Control Unit
Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests, automatic break detection.
Safety
Dimensions
(W x D x H) = 1200 x 570 x 1950 mm
Weight: approx. 450 kg
3 ~ 400 V / 50 Hz / 1.1 kW
