Article number: 22.2401.01-SV-i20

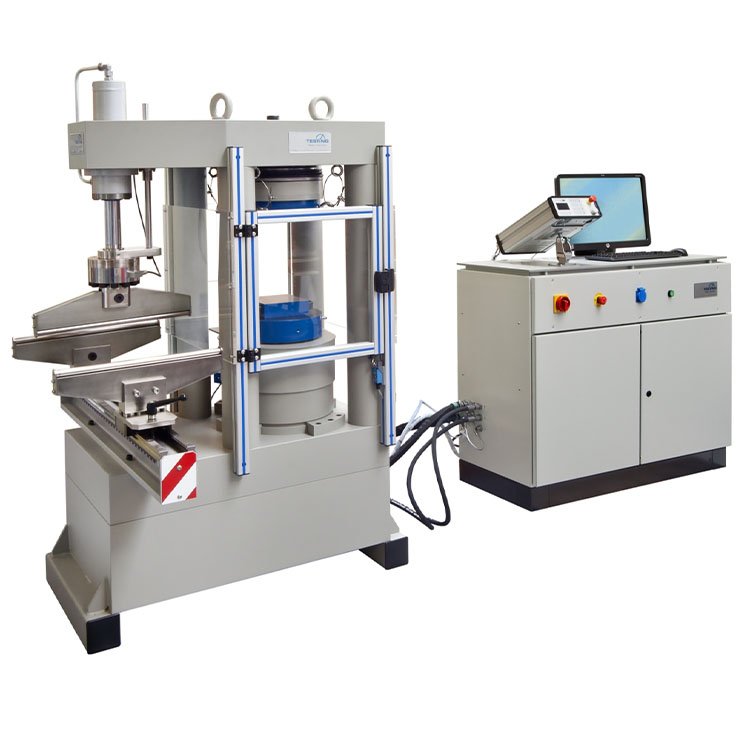

The testing machine combination is a space-saving unit consisting of compression – and Bending testing machine, which is suitable for compressive strength tests of light, normal and heavy concrete. Optionally a position measuring system can be installed. The massive steel frame is extremely stiff, the columns are tensioned without any play. According to DIN EN 12390-4 and class 1 according to DIN EN 7500-1 in the specified measuring range.
Standards: DIN EN 12390-3, 12504-1, 12390-6, 12390-13, 1338, 206, ASTM C39, C140, C1314, E4, AASHTO T22, DIN EN 12390-5, 1339, 1340, ASTM C78, C293, C469, C496, C1019, C109/C109M
Samples
Cubes (edge length): 200, 150, 100 mm
Cylinder (height): 300, 200 mm
Devices (height): up to 330 mm e.g. splitting tensile
Beams: 150 x 150 x 750 / 100 x 100 x 500
Other samples possible
Technical Specifications Compression Side
Force display range: 0 – 3000 kN
Force measuring range: 60 – 3000 kN, class 1
Stroke: 100 mm
Test chamber height: 340 mm
Column spacing: front 360 mm; side 260 mm
Machine platens: Ø 320 mm according to DIN EN 12390-4
Optional rectangular machine platen variants
Technical Specifications Flexure Side
Frame type: open C-Frame
Force display range: 0 – 100 kN
Force measuring range: 1 – 100 kN, class 1
Stroke: 220 mm
Distance between bending edges: 220 mm
Bending roll length: 620 mm
Bending roll diameter: Ø 40 mm
Distance between lower bending rolls: 70 – 850 mm
Optional addition length and diameter
Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories), automatic break detection.
A large area of the testing machine is equipped with an impact-resistant, transparent test room protection made of polycarbonate.
Control Unit: (W x D x H) = 1200 x 570 x 1040 mm
Weight: approx. 350 kg
3 ~ 400 V / 50 Hz – 1.5 kW
Test Frame: (W x D x H) = 1170 x 1040 x 2280 mm
Weight: approx. 2500 kg
