Article number: 21.1402.01-SV-i20

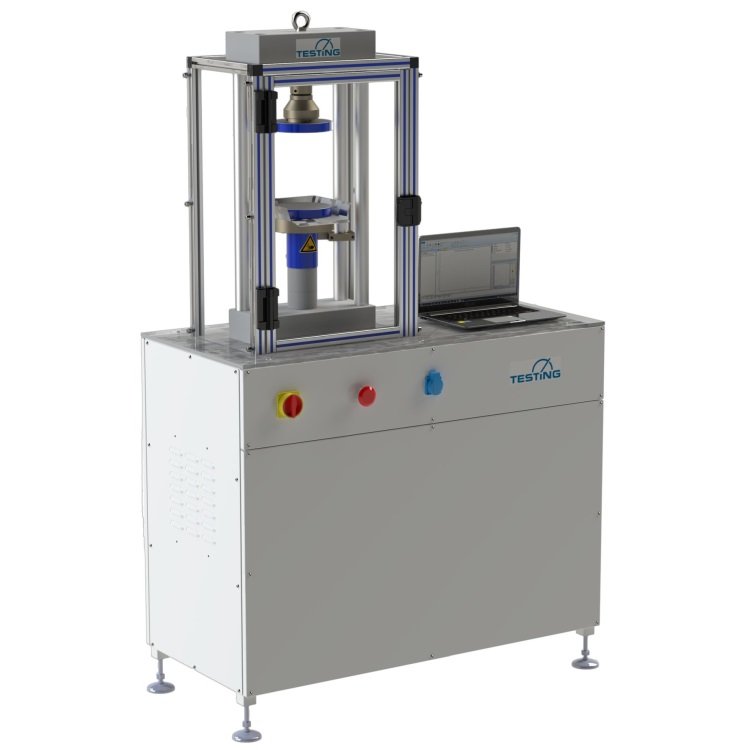

The testing machine combination is suitable for compressive strength tests of gypsum, mortar- and cement samples, as well as light- and aerated concrete. The massive steel frame is extremely stiff, the columns are tensioned without any play. On both side is a simple insertion of different test fixtures, inserts and devices possible. According to DIN EN 196 and class 1 according to DIN EN 7500-1.
Norms: DIN EN 196, 1015, ISO 679, BS 3892, ASTM C109, ASTM C348, C349 (and many more).
Other force ranges:
100 kN, 150 kN, 200 kN
Technical Specifications
Force display range: 0 – 300 kN
Force measuring range: 6 – 300 kN, class 1
Stroke: 60 mm
Test chamber height: max. 210 mm
Column spacing: front 280 mm
Machine platens dia. 165 mm acc. to EN 196
Optional further machine platens and fixed test inserts are available.
Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories). Automatic break detection.
Safety
A large area of the testing machine is equipped with a impact-resistant,transparent test room protection made of polycarbonate.
Dimensions
(W x D x H) = 1200 x 570 x 1950 mm
Weight: approx. 420 kg
3 ~ 400 V / 50 Hz / 1.1 kW
