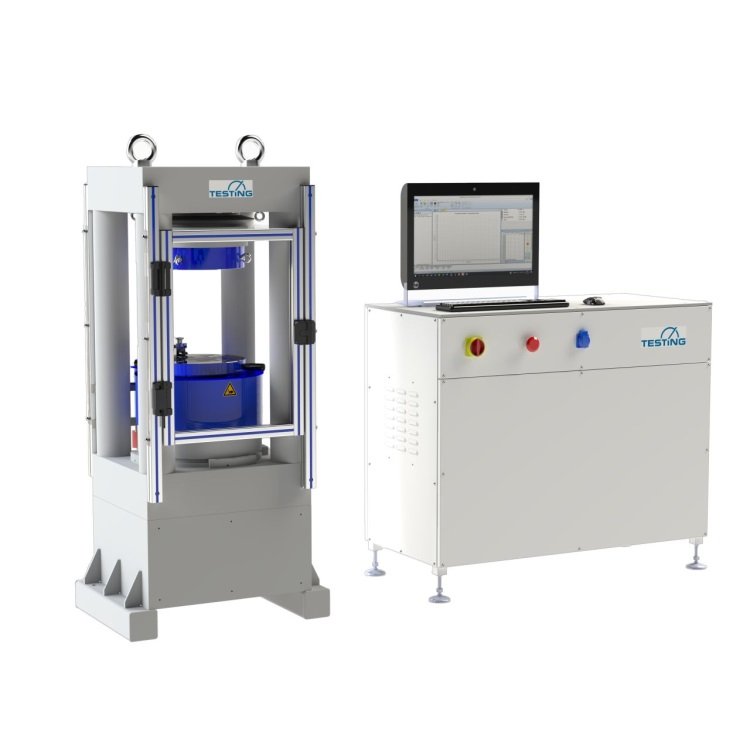

Compression testing machine 3000 kN

Compression testing machine 3000 kN

Facebook
Twitter
LinkedIn
WhatsApp

Product Details

Article number: 22.1101.01-FU-i20

Test frame with hydraulic cylinder for compression strength test in strain gauged column according to DIN EN 12390-4 and class 1 according to DIN EN 7500-1 in the specified measuring range. The compression testing machine is suitable for compressive strength testing of light, normal and heavy concrete.

Standards: DIN EN 12390-3, 12504-1, 12390-6, 12390-13, 1338, 206, ASTM C39, C140, C1314, E4, AASHTO T22

Samples

Cubes (edge length): 200, 150, 100 mm (auxiliary platens required)
Cylinder (height): 300, 200 mm
Devices (height): up to 310 mm e.g. splitting tensile
Other samples are possible.

Technical Data

Force display range: 0 – 3000 kN
Force measuring range: 100 – 3000 kN, class 1
Stroke: 100 mm
Test chamber height: 315 mm
Column spacing: front 340 mm; side 270 mm
Machine platens: dia. 320 mm according to DIN EN 12390-4
Optional rectangular machine platens

Controller

Control cabinet FU-i20 with main switch inclusive under voltage release and emergency stop switch. Connector: CEE plug 16A (3 ~ 400V, 50Hz).

Safety

A large area of the testing machine is equipped with an impact-resistant, transparent test room protection made of polycarbonate.

Dimensions

Test frame: (W x D x H) = 750 x 660 x 1580 mm
Weight: approx. 1650 kg
Control cabinet: (W x D x H) = 1200 x 570 x 1040 mm
Weight: approx. 350 kg
3 ~ 400 V / 50 Hz / 1.1 kW
