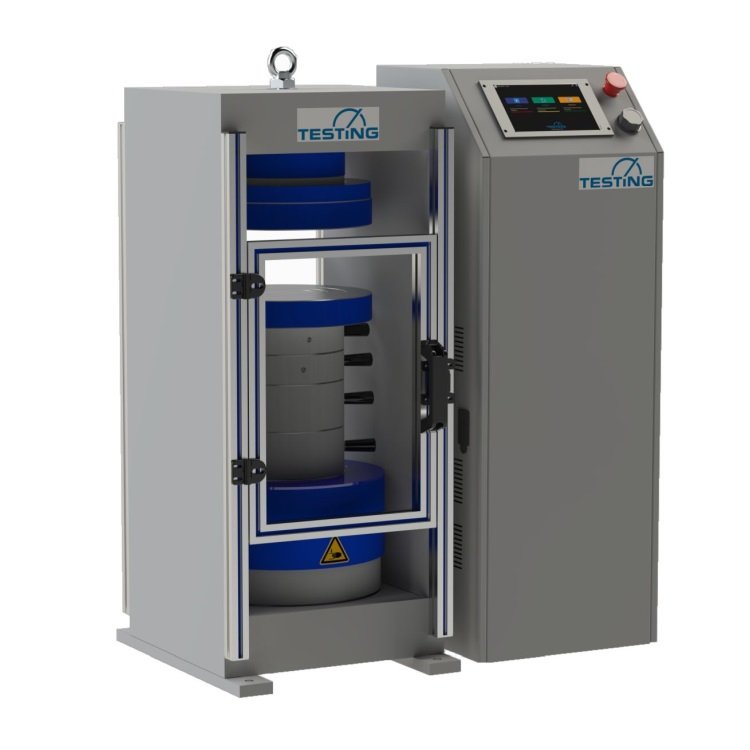

Compression testing machine 3000kN with all-welded frame

Compression testing machine 3000kN with all-welded frame

Facebook
Twitter
LinkedIn
WhatsApp

Product Details

Article number: 2.1204

Straintest version according to EN 12390-4. Accuracy class 1 according to DIN EN ISO 7500-1. Touch pad controller with digital display.
Standards: DIN EN 12390-3, 12504-1, 12390-6, 12390-13, 1338, 206, ASTM C39, C140, C1314, E4, AASHTO T22

Trchnical Data

Compression range: 100 – 3000 kN
Piston stroke: approx. 50 mm
Automatic Break detection inclusive
Saving of peak value
Platens-Ø: 300 mm
Distance between pressure plates: (max.) 370 mm

Scope of delivery

Distance pieces for cubes for 150 x 150 x 150 mm, 200 x 200 x 200 mm and cylinders dia. 150 / 300 mm.

Dimensions

(W x D x H) = 880 x 550 x 1200 mm
Weight: approx. 1380 kg
230 V / 50 Hz
