Versatile X-ray Micro CT Scanner
High-performance benchtop

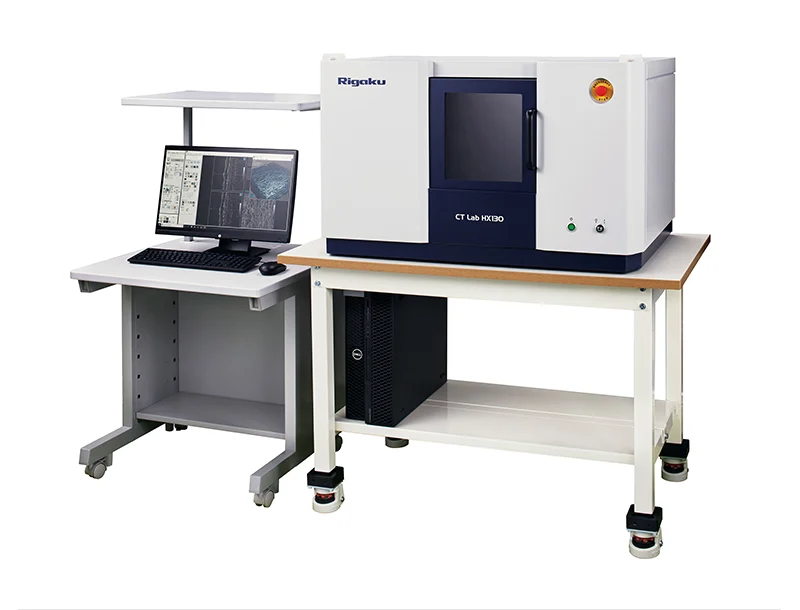

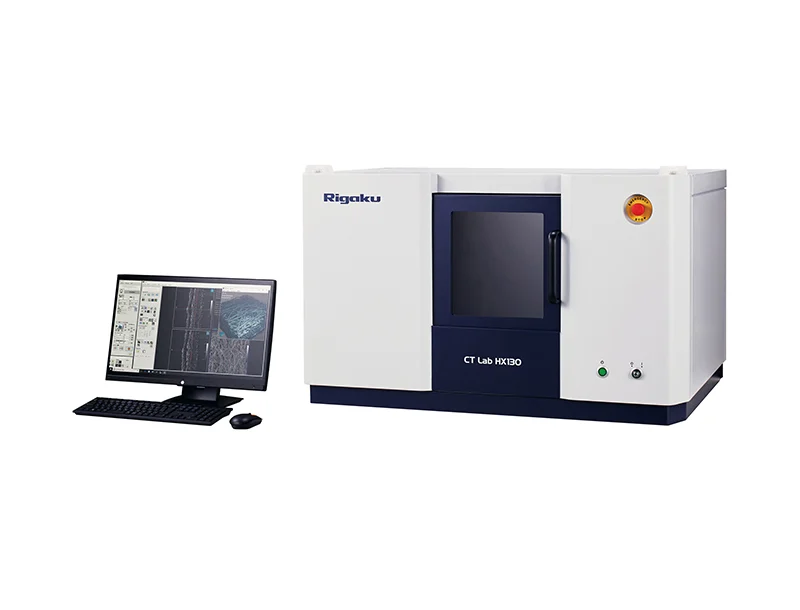

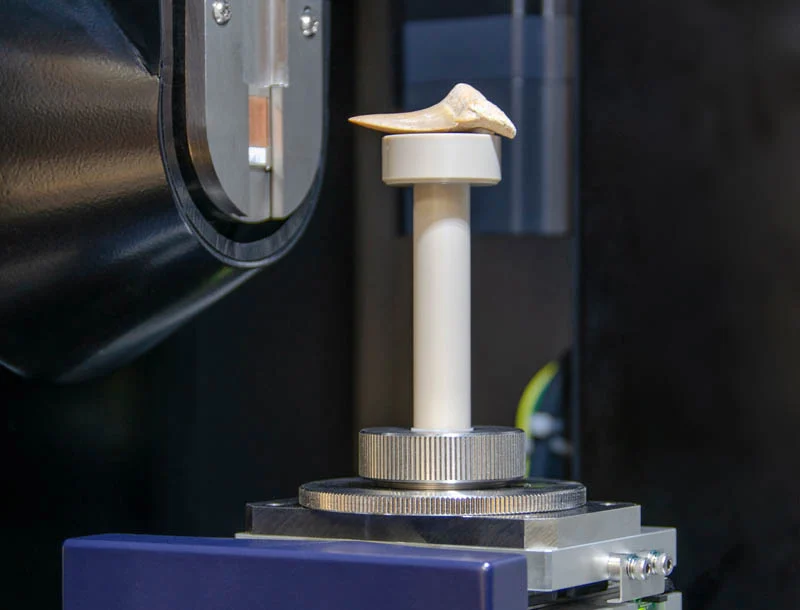

Rigaku CT Lab HX is a benchtop micro CT (computed tomography) scanner. The adjustable SOD (source-to-object distance) and SDD (source-to-detector distance) make this benchtop micro CT scanner flexible. It covers from 2.1-micron voxel resolution in the high-resolution mode and 200 mm FOV (field of view) in the large FOV mode. The CT Lab HX is equipped with a 130 kV – 39 W high-power X-ray source. The X-ray source settings and X-ray filters are adjustable to optimize the X-ray energy to various sample materials and sizes.
CT Lab HX Overview
How do I achieve high resolution?
Rigaku CT Lab HX uses the cone-beam geometry. This geometry uses the X-ray beam divergence to magnify the sample image. The magnification factor is determined by the ratio of SOD (source-to-object distance) and SDD (source-to-detector distance). So to achieve high resolution, you can increase the SDD and/or decrease SOD. CT Lab HX has the flexibility to do them both in its compact design.
With the long SDD and short SOD settings, you can achieve 2.1-micron voxel resolution (~ 5-micron spatial resolution) on the CT Lab HX. This resolution can reveal micro cracks, voids, fibers in composites, etc.
How do I achieve 200 mm FOV?
The FOV (field of view) you can cover in one scan is limited by the size of the detector. However, the offset scan mode doubles the effective detector width to cover a wide FOV without having to change the detector. Rigaku CT Lab HX utilizes this scan mode to achieve 200 mm FOV without having to change the detector or compromising its compact system size.

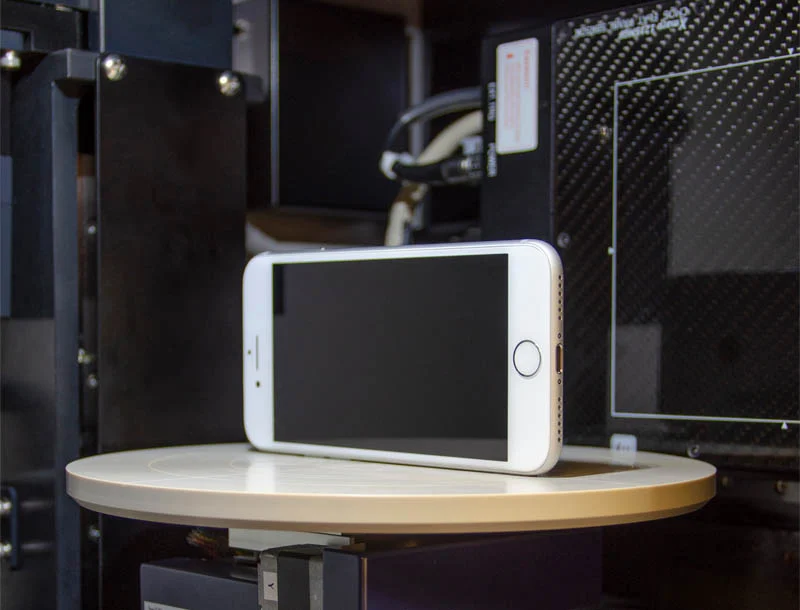

The 200 mm FOV enables a scan of an entire smartphone, 3D printed objects, fruits, etc.
Do I need a large CT scanner to cover both high-resolution and large FOV?
No, you don’t need a large floor standing type CT scanner to cover a wide range of resolution and FOV for most samples under 200 mm in size and made of elements lighter than aluminum.
Rigaku CT Lab HX has the flexibility to change both SOD and SDD to cover from 2.1-micron to about 100-micron voxel resolution. And the offset scan mode can cover 200 mm FOV.
This flexible and compact design makes CT Lab HX an affordable research-grade micro CT scanner ideal for materials science imaging centers.
CT Lab HX Features
- Flexible design to cover high-resolution to large FOV
- Adjustable source to object and detector distances to optimize the geometry for a variety of resolutions and FOV needs
- 2.1 um voxel / 5 um spatial resolution
- High-resolution geometry by the long source to detector distance
- 200 mm FOV
- Offset scan mode doubles the effective detector size to cover a large FOV
CT Lab HX Specifications
| Voxel resolution | 2.1 — 100 μm | |
|---|---|---|
| Field of view (FOV) | 5 — 200 mm | |
| Maximum sample size | 200 mm diameter x 270 mm height | |
| Speed (shortest scan time) | 18 sec | |
| Geometry | Cone beam geometry | |
| X-ray source | 39 W traditional microsource | |
| X-ray energy | W anode, adjustable applied voltage 30 – 130 kV | |
| Detector | Flat panel | |
| Detector pixel size | 49.5 microns | |
| Detector size | 2352 x 2944 pixels | |
| Dimensions | 980 (W) x 580 (H) x 700 (D) mm (PC not included) | |
| Weight | Approx. 380 kg | |
