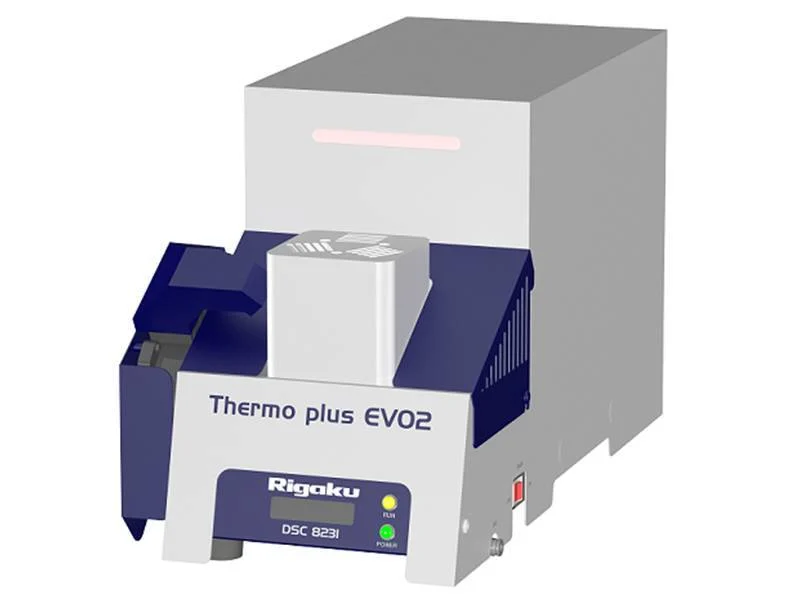

DSC8231

Differential Scanning Calorimeter

Characterize heat gain/loss associated with phase transitions

Differential scanning calorimetry (DSC) quantifies the energy changes in reactions such as melting, transition, crystallization and glass transition temperature and is mainly used for research and development; and quality control in the fields of polymer, pharmaceutical.

Rigaku’s DSC are heat-flux types. Several models are available depending on the maximum temperature and sensitivity difference.

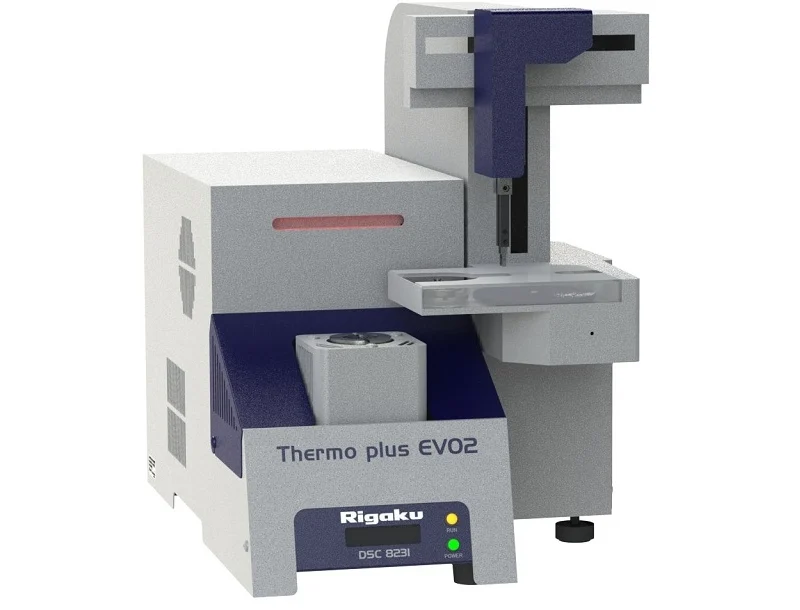

The high-sensitivity type DSC8231 has several available options, such as a LN₂ cooling system, an automatic sample changer depending on the objective of the measurement.

DSC8231 Features

High sensitivity, high performance and low noise, realized by a compact furnace

Quick gas substitution enabled by compact furnace

Remarkable heating and cooling rates that enhance the efficiency of measurement

Safety is emphasized on the entire system

Measuring temperature range: -150°C to 725°C (max. 750°C)

An optional cooling unit is used for temperatures below ambient

Inert gas flow is required for temperatures above 500°C

DSC8231 Specifications

Technique	Differential scanning calorimetry
Benefit	Characterize and quantifies the energy of a reaction associated with phase changes
Technology	DSC is a thermal analysis technique in which the difference in the amount of heat required to increase the temperature of a sample and reference is measured as a function of temperature
Attributes	Using this technique, it is possible to observe fusion and crystallization events as well as glass transition temperatures and can be also used to study oxidation, as well as other chemical reactions
Computer	External PC
Dimensions	210 (W) x 310 (H) x 520 (D) (mm)
Mass	15.5 kg (30.5 kg w/ ASC)
Power requirements	1Ø, AC100-120 V/200-240 V 50/60 Hz 5 A
