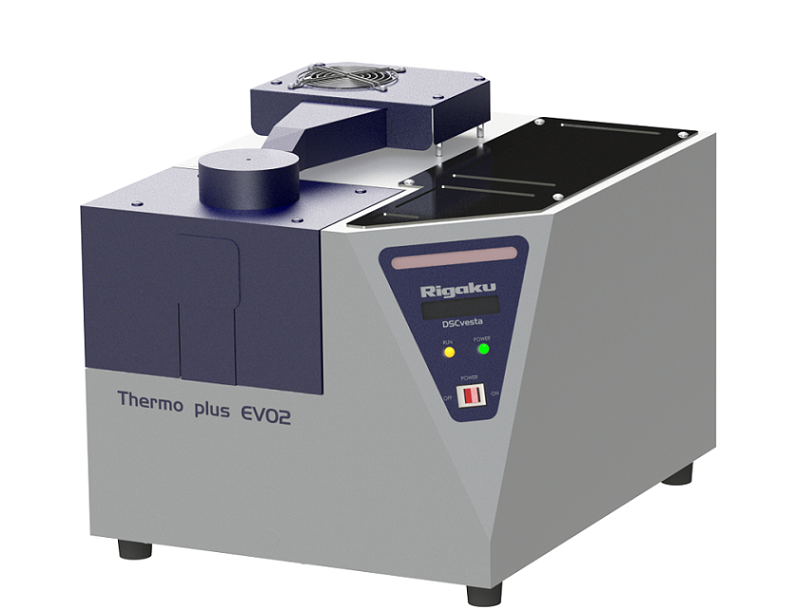

DSCvesta

Differential Scanning Calorimeter

Characterize heat gain/loss associated with phase transitions

Differential scanning calorimetry (DSC) quantifies the energy changes in reactions such as melting, transition, crystallization and glass transition temperature and is mainly used for research and development; and quality control in the fields of polymer, pharmaceutical.

Rigaku’s DSC are heat-flux types. Several models are available depending on the maximum temperature and sensitivity difference.

The high-sensitivity type DSCvesta has several available options, such as a refrigerated cooling system, an automatic sample changer, sample observation, depending on the objective of the measurement.

DSCvesta Features

High sensitivity, high performance and low noise, realized by a compact furnace

Quick gas substitution enabled by compact furnace

Remarkable heating and cooling rates that enhance the efficiency of measurement

Safety is emphasized on the entire system

Measuring temperature range: -170 to 725°C

An optional cooling unit is used for temperatures below ambient

Inert gas flow is required for temperatures above 500°C

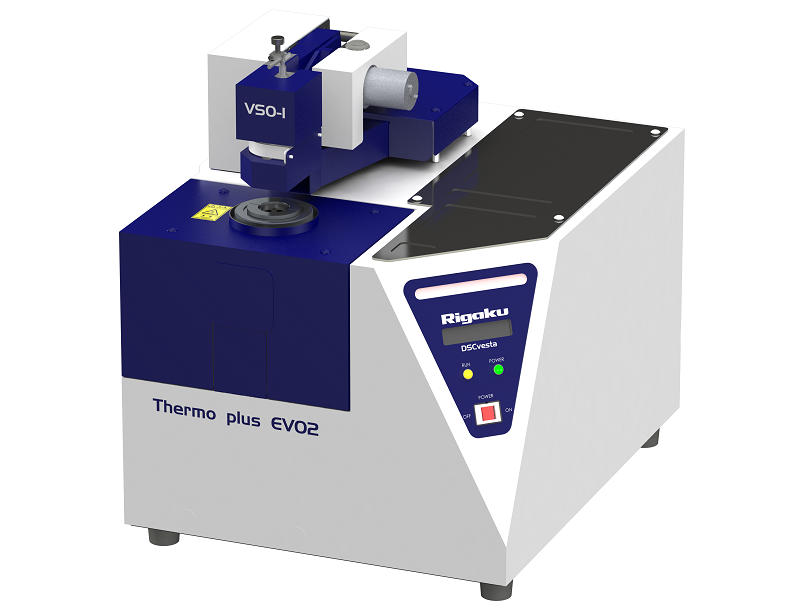

Sample observation DSCvesta
Ambient to 350℃
(When using with cooling unit lowest temperature: -70℃)

DSCvesta Specifications

Technique	Differential scanning calorimetry
Benefit	Characterize and quantifies the energy of a reaction associated with phase changes
Technology	DSC is a thermal analysis technique in which the difference in the amount of heat required to increase the temperature of a sample and reference is measured as a function of temperature
Attributes	Using this technique it is possible to observe fusion and crystallization events as well as glass transition temperatures and can be also used to study oxidation, as well as other chemical reactions

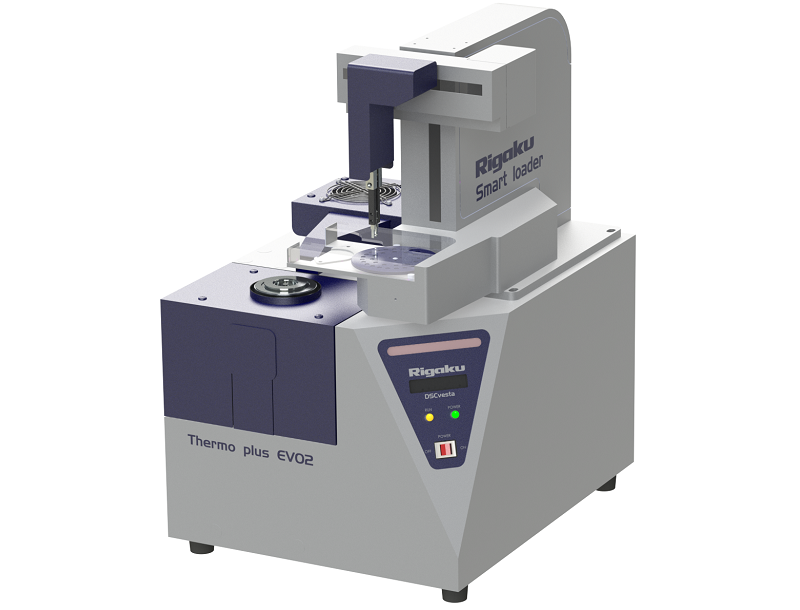

Options	ASC, sample observation unit, cooling unit
Computer	External PC
Dimensions	380 (W) x 367 (H) x 492 (D) (mm)
Mass	28 kg (38 kg w/ ASC)
Power requirements	1Ø, AC100-120V/200-240V 50/60Hz 5A
