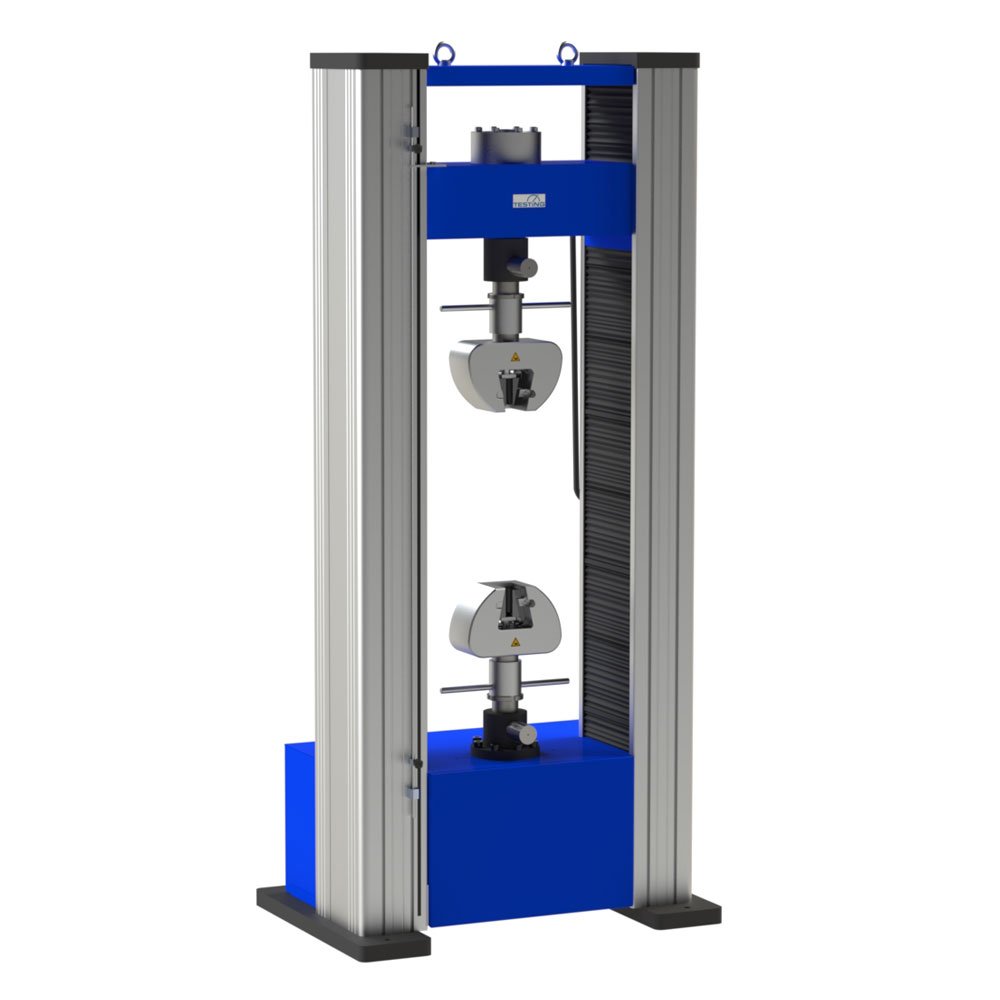

TESTING Universal compression/flexural and tensile testing machine
Electromechanical spindle machine for force/displacement/deformation controlled tests
Order no. / Order no.:
10 kN – 16.1502.01
25 kN – 16.1503.01
50 kN – 16.1504.01
100 kN – 16.1505.01
200 kN – 16.1506.01
250 kN – 16.1507.01
300 kN – 16.1508.01
500 kN – 16.1509.01
600 kN – 16.1510.01
Numerous static and quasi-static compression, tensile, and flexural tests on mortar, steel fiber reinforced concrete, reinforced concrete, steel, polymers, etc.
Universal application in material and component testing, research and development, and quality control.
Accuracy and requirements according to EN ISO 7500-1, ASTM E4, BS1610.
Accuracy of strain measurement according to DIN EN ISO 9513, ASTM E83.
torsionally rigid 4-column test frame including manual wedge clamping devices
Please refer to this overview for the specifications !
- The test frame with control cabinet meets all safety-related requirements according to DIN 51233 and all requirements according to DIN EN ISO 7500-1.
- The complete machine is delivered with an EU Declaration of Conformity and operating instructions in accordance with Machinery Directive 2006/42/EC.
- The test machine can optionally be equipped with a large, impact-resistant, transparent polycarbonate test chamber guard.
(We recommend a test chamber guard in cases of brittle, sudden fracture or splintering.)
A Doli EDCi20 controller is used as a universal digital measurement and control electronics unit for testing machines
- It is mounted in the control cabinet and can optionally be operated via remote control. The control electronics enable fully automated test execution with predefined loading rates for force-, displacement-, and strain-controlled tests.
- Sensitive and adjustable fracture detection ensures early detection of specimen failure.
- Communication to PC: Ethernet port / USB 2.0.
- Configuration: Remote maintenance via TeamViewer (PC required).
- Expansion option: 3 iSI modules (2 onboard)
- System clock: max. 2.5 kHz
- Supply voltage + 24 VDC, 1.5 A
- Control output ±10V
- A/B Pulse sequence for controlling downstream electronics
- Automatic sensor detection via intelligent sensor connector SGS calibration data is stored in the sensor connector
- Accesories
- On request:
• Hydraulic or mechanical crosshead adjustment for adapting the test chamber heights
• Test chamber guard made of impact-resistant, transparent polycarbonate with safety switch
• Axial extensometers, measuring probes and other sensors for all applications
• Video extensometers, crack width transducers, long-stroke transducers
• Separate force transducers for small force measuring ranges
• Bending and compression device, shearing device
