Flexural TESTING machine for railway sleepers

Product Details

Article number: 23.1402.02-SV-i20

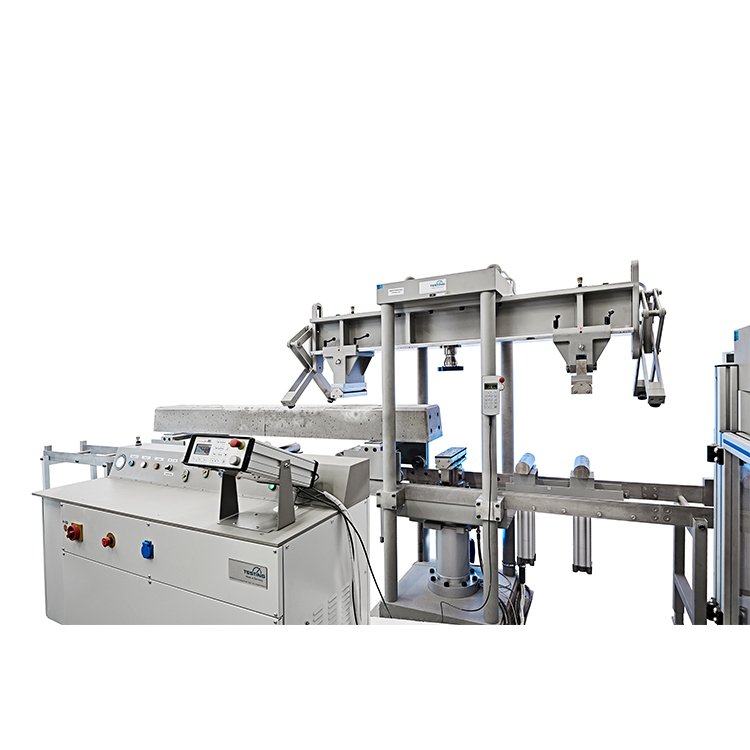

PC-controlled flexure testing machine for concrete sleepers and bearers 600 kN
The flexure testing machine is suitable for quality control of various concrete sleepers and
bearers. Optionally a displacement measuring system can be installed. The solid steel frame is
extremely torsion-resistant. The columns are clamped without any play.
With test cylinder from below, so that the crack can be inspected from above.
Incl. pneumatic lifting system for automatic lifting of the sleepers into the test position for the
head and centre test, as well as a fully automatic centring device for the sleepers.
Accuracy class 1 according to DIN EN ISO 7500-1, servo-controlled.
Standards: EN 13230-2, EN 13230-4, DBS 918 143 (Deutsche Bahn), GOST 33320-2015
Other capacity ranges: 500 kN / 750 kN / 1000 kN

Technical Data

Frame type: 4-column
Force display range: 0 – 600 kN
Force measuring range: 6 – 600 kN, class 1
Stroke: 300 mm
Distance between columns: Front 520 mm / Side 520 mm
with supporters according DIN EN 13230-2
incl. inclination compensation plate and elastic intermediate layer

Control Unit

Doli EDC Controller enables fully automatic test procedures with predefined loading
speed for force controlled tests, data export of the measurement results
Fast lift function and incl. oil-air cooler for long test procedures

Dimensions

Test frame: (B x T x H) 7500 x 850 x 2500 mm
Weight: approx. 2800 kg incl. roller conveyor
Control Cabinet: (B x T x H) 1200 x 570 x 1050 mm
Weight: approx. 300 kg
3 ~ 400 V / 50 Hz – 1,5 kW
