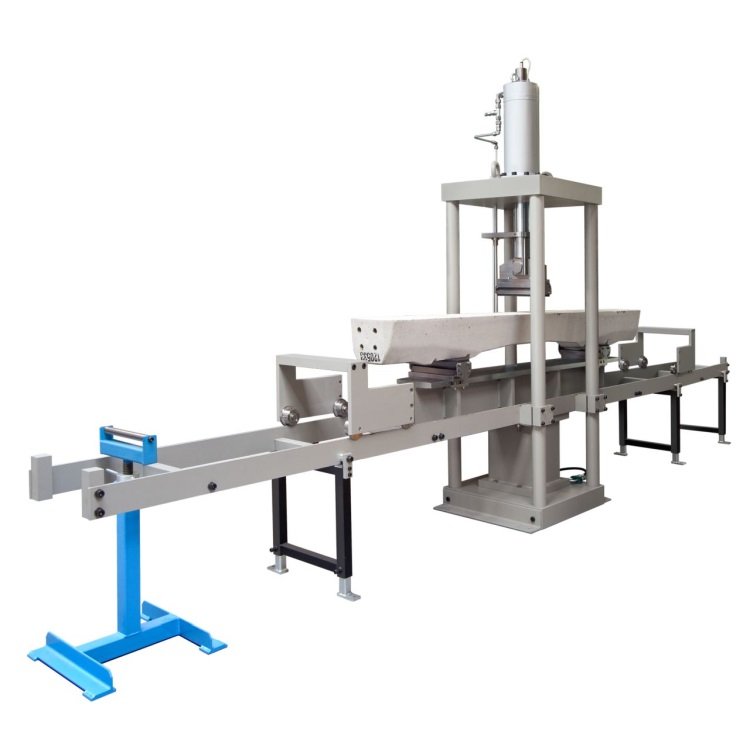

Frame for tests of concrete sleepers

Frame for tests of concrete sleepers

Facebook
Twitter
LinkedIn
WhatsApp

Product Details

Article number: 23.1402.01-SV-i20

Accuracy class 1 according to DIN EN ISO 7500-1. For static tests of concrete railway sleepers.

Test Frame

stiff 4-column press frame
Fmax: 600 kN
Force measuring range: 0 – 600 kN
Class 1 measuring range: 12 kN – 600 kN
Other gradation of class 1 measuring ranges possible
According to BS EN 13230-2 Class 1 according to DIN EN 7500-1
Piston stroke: 300 mm
Distance between columns: Front 520 mm; Side 520 mm
Test space height: 385 mm
Inductive piston displacement transducer: 300 mm
An anti-rotation device prevents the piston rod from twisting with the upper bending beam and the precision force transducer
Measuring length: 0.1 mm installed in the cylinder
Absolute pressure transducer: type HBM, P8AP, 500 bar
Accuracy: 0.3%
Bending traverser for sleepers: Length 2000 mm, width 240 mm
3 articulated supports according to EN 13230-2

Special Runway

Length: approx. 6 m
Elastic underlay
Inclination plates adjustable according to standard
For the transport of sleepers in the test frames according to EN 13230-2
Two transport trolleys with rubber plates for protection
Adjustable roller block for sleeper head testing

Hydrualics

High-pressure radial piston pump for testing
Low-pressure pump for fast approach to the sample
Differential cylinder in servoslide quality (particularly low-friction)
Mounted on the upper crosshead to ensure fast and highly accurate travel during the test
Connection of the 600 kN frame to the control unit
Hydraulic control valves included

Dimensions

(W x D x H) approx.: 1200 x 850 x 2045 mm
Weight incl. substructure: approx. 2500 kg
3 x 230 V / 400 V / 50 / 60 Hz
