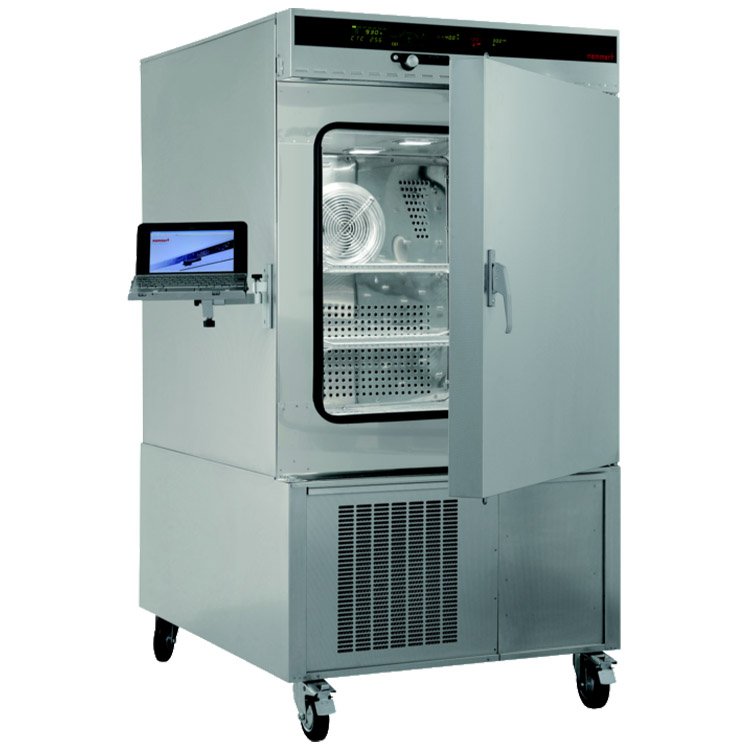

Frost-thaw cabinet type CTC 256

Frost-thaw cabinet type CTC 256

Categories: , , , , , , , , ,
Facebook
Twitter
LinkedIn
WhatsApp
frost-tauwechsel-schrank-typ-ctc-256

Product Details

Article number: 2.0276.CTC256

According to DIN 12880, EN 61010-1,2, EN 60068-2-1, EN 61010-1.2, 2-2 and 2-3. For climate and temperature test.

Technical data
Temperatur range without humidity: from -42°C – +190°C
Temperatur range with humidity: from +10°C – +95°C
Heating rate: 10 K/minute
Cooling rate: 6 K/min
Test space capacity: 256 liter
Temperature protection over / under
Humidity protection (against falling too low)
Adaptive, fuzzy-supported, multifunctional, digital microprocessor PID-controller Timer functions, internal log memory as a circular buffer for about 3 months
Dimensions
Inside: (W x D x H) = 640 x 597 x 670 mm
Outside: (W x D x H) = 898 x 1100 x 1730 mm
Weight: 420 kg
400 V / 50 Hz / 7 kW
