Product Details

The smart solution for automatic flux dosing- Improved precision and release from mundane routine tasks

Use

  • High-precision dosing of flux into plastic beakers

Material

  • Flux

Operation mode

  • Semi-automatic

All advantages at a glance

Automation for release from mundane tasks

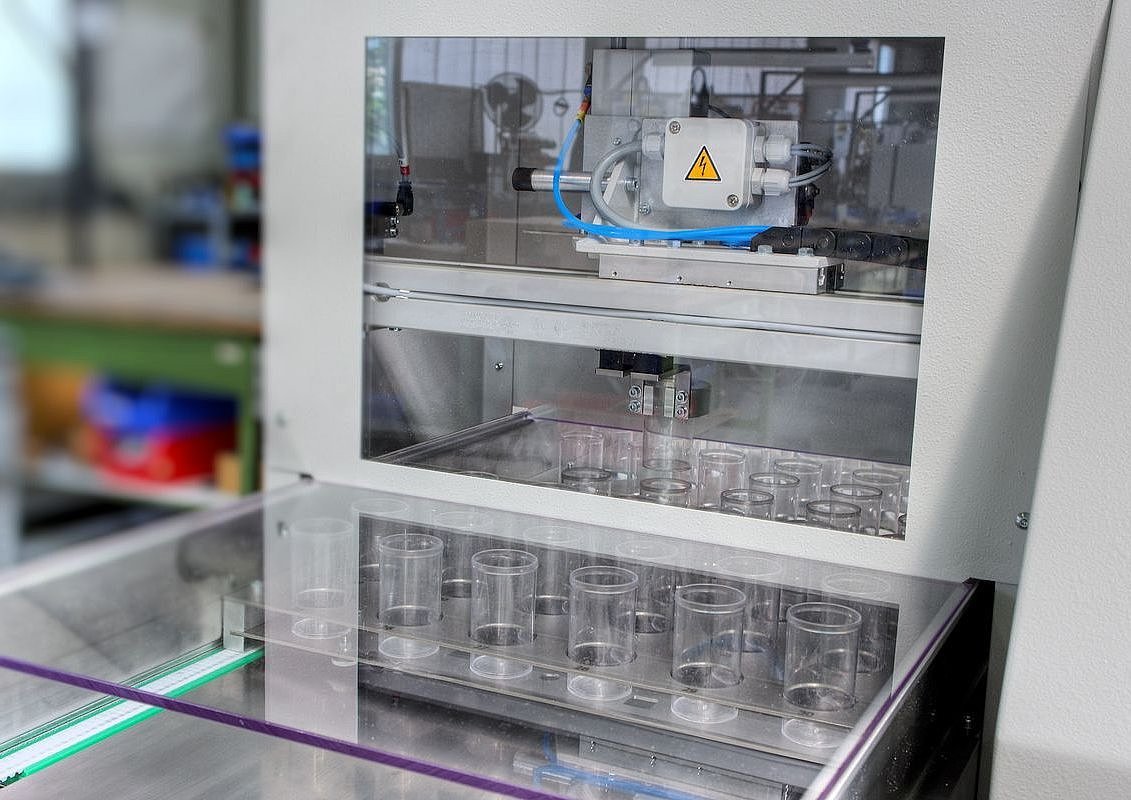

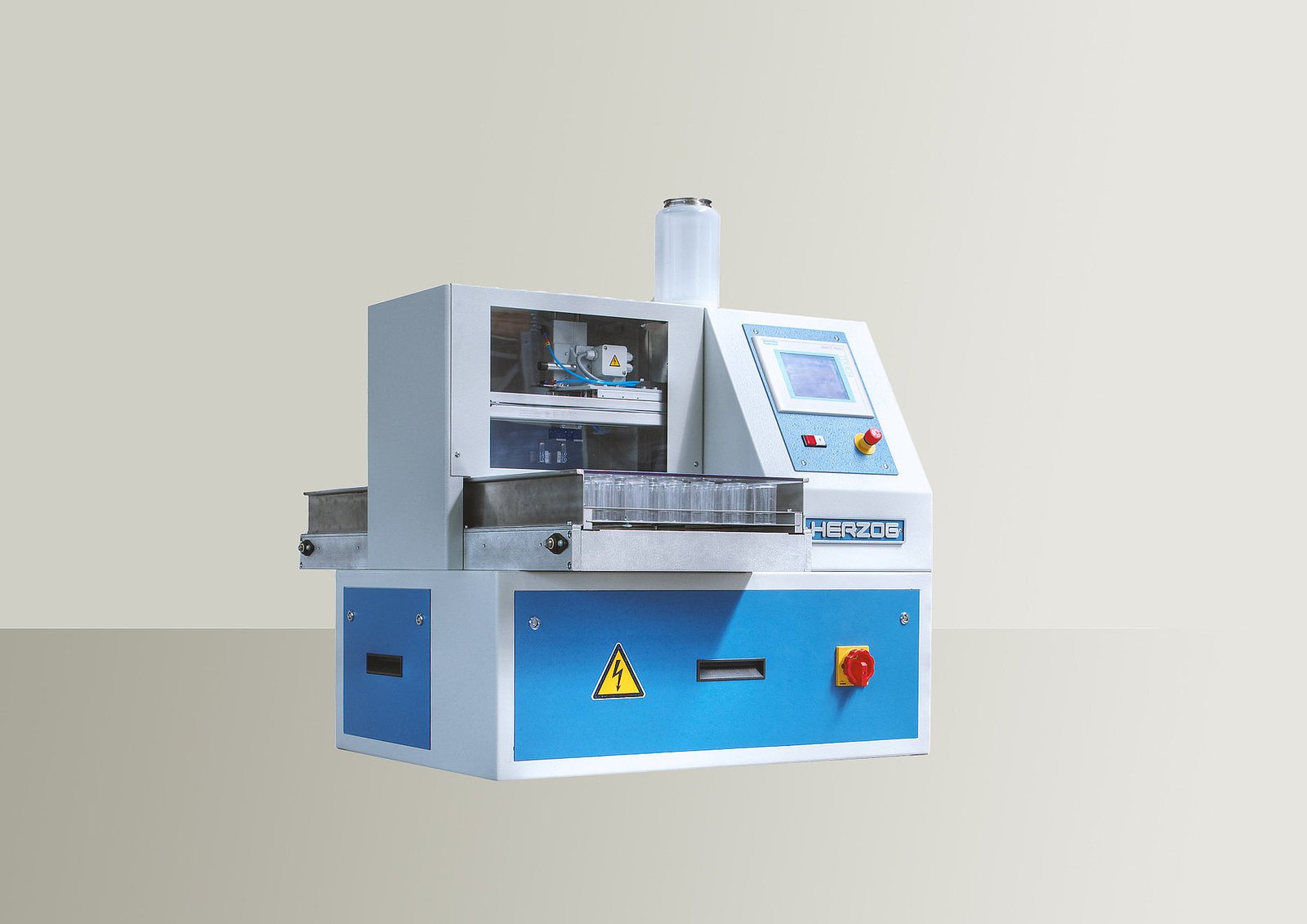

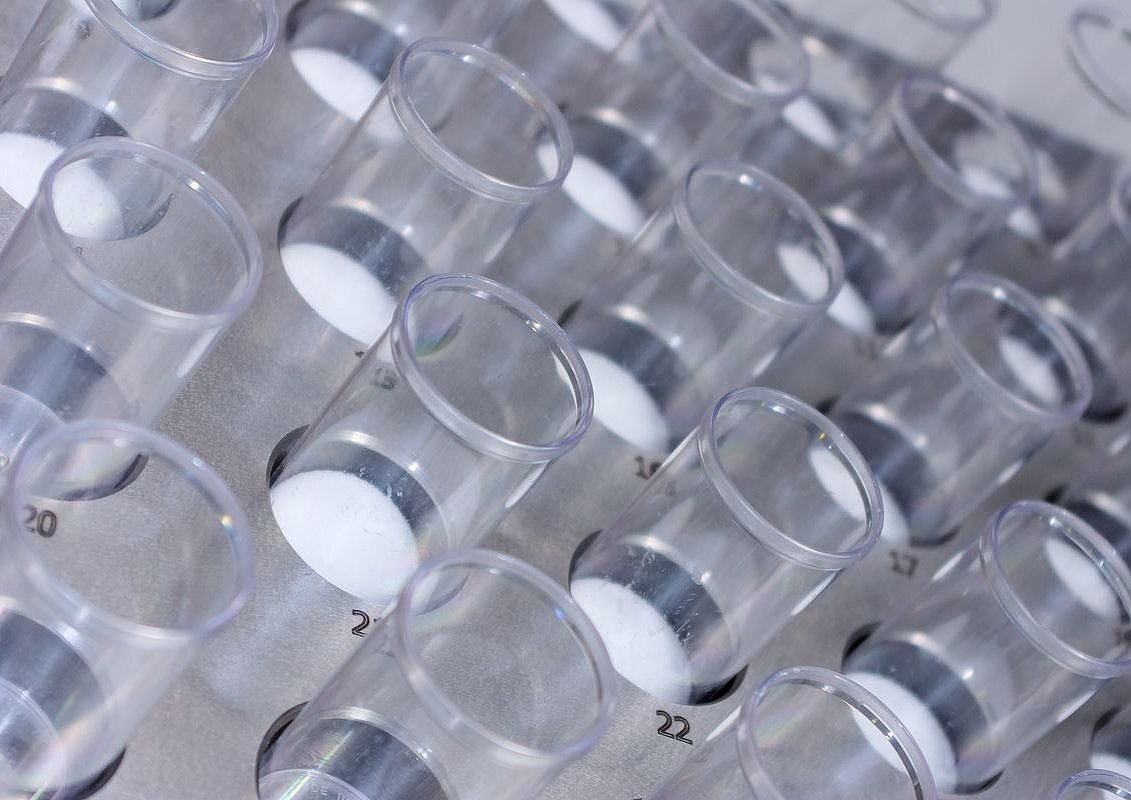

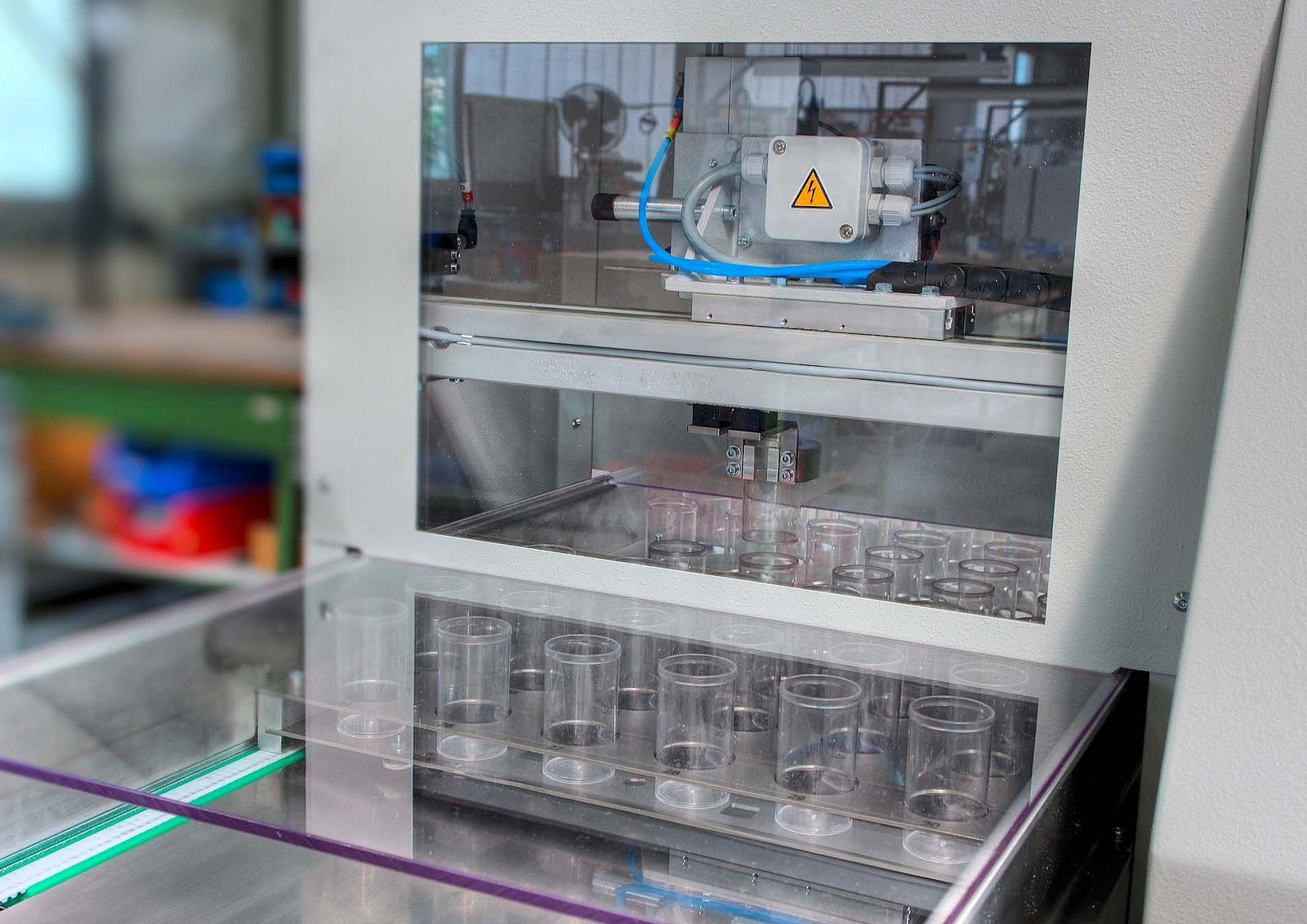

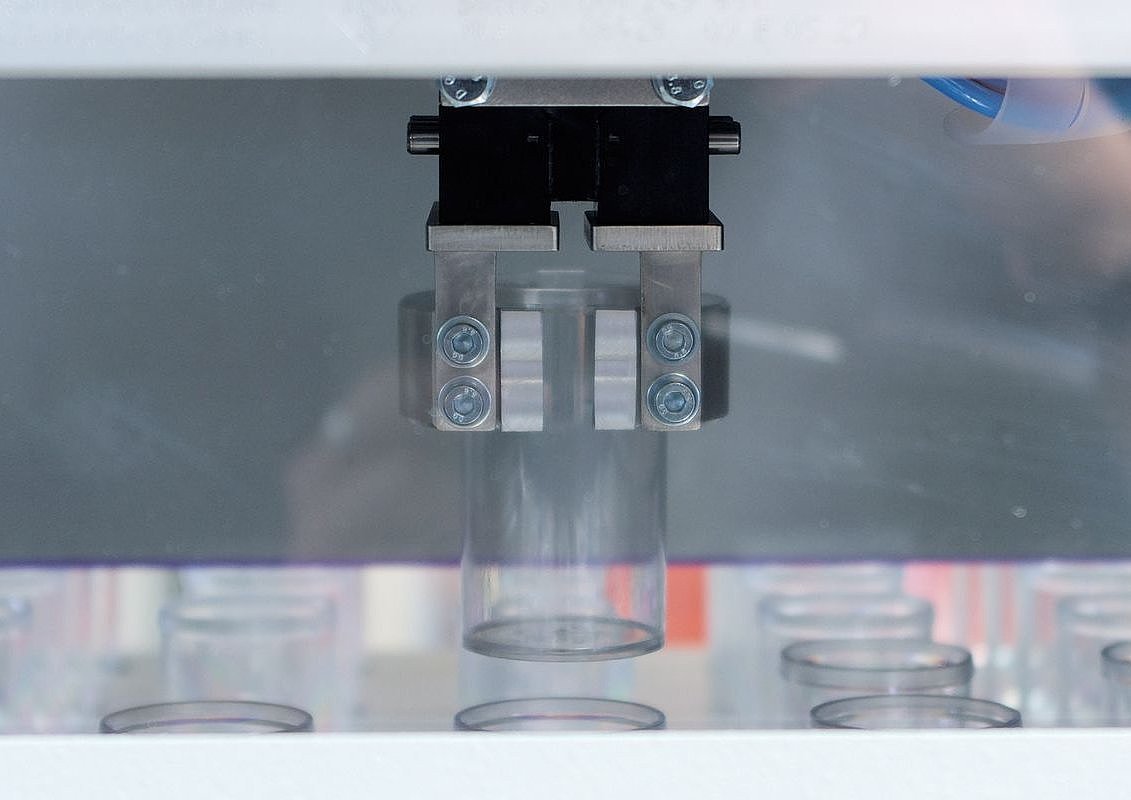

The device is used to dose a defined mass into plastic beakers. The beakers are presented in trays with 30 positions. Ther is space for a total of 3 trays on the feed conveyor. 60 beakers can be dosed without the intervention of the operator. The HP-DT2 is the optimal machine to release the laboratory personnel from mundane tasks, to improve the accuracy of dosing and guarantee a high sample throughput.

High-precision dosing

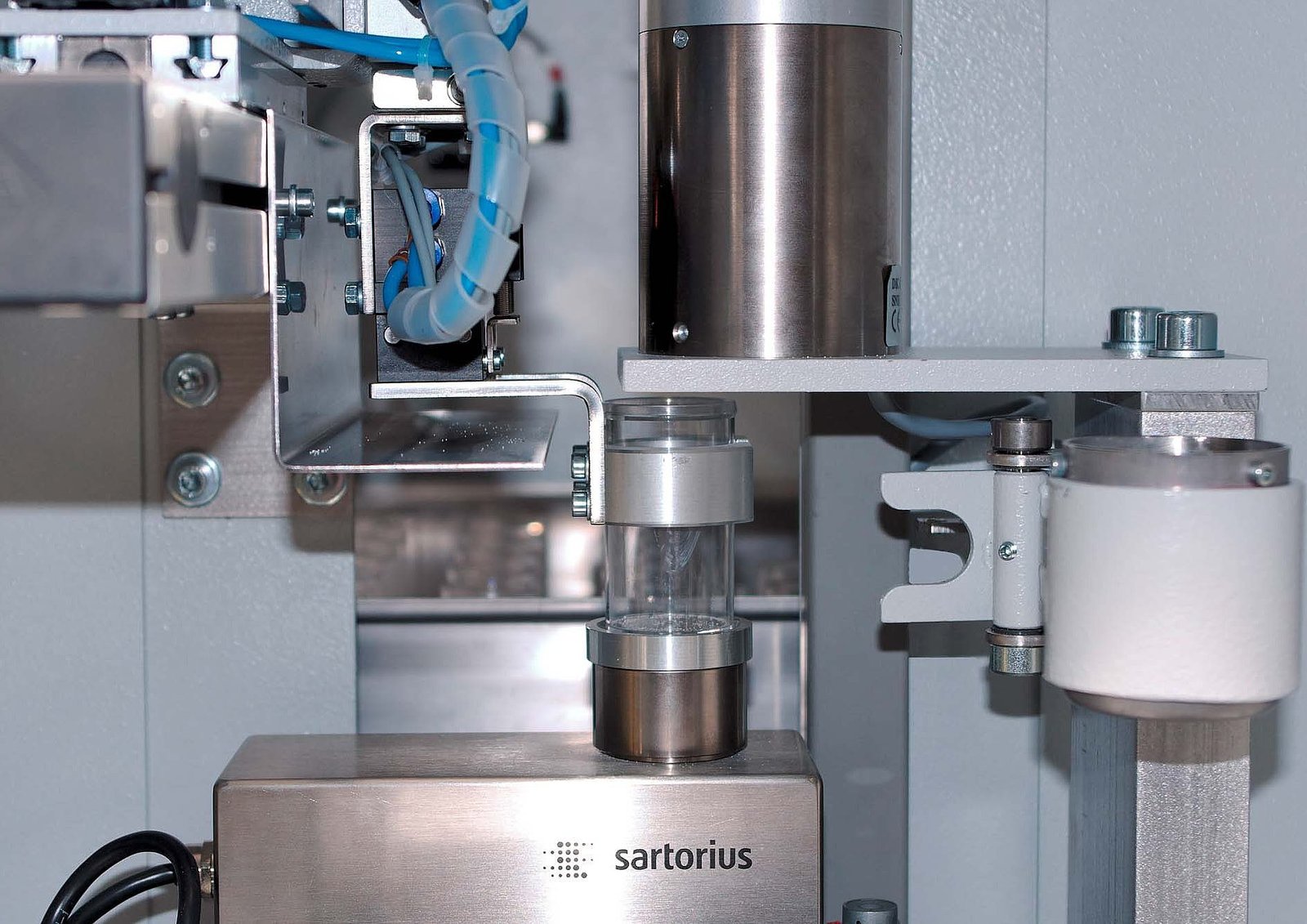

The HP-DT2 is a high-precision dosing unit for flux. The accuracy of the HP-DT2 is +/- 3 mg in a range up to 15 g.
