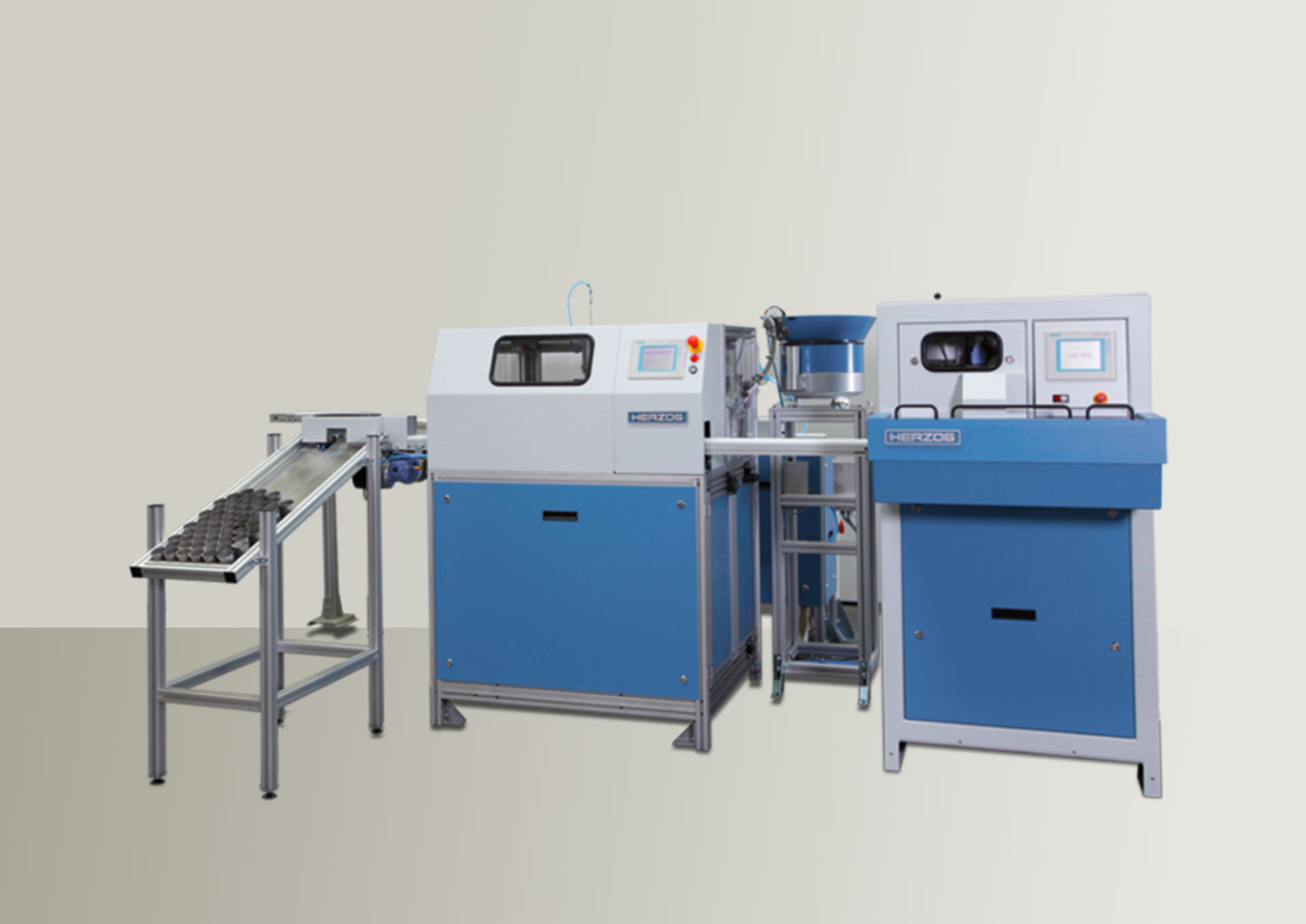

HP-PD6: Automatic diffractometer pellet press

Categories: Cement, Construction Sector, Copper, Fusion & Pelletizing, Glass, Herzog, Laboratory Solutions, Mining & Minerals, Non Ferrous, Oil & Gas, Research & Academia, Sample Preparation, Sectors, Steel

Product Details

The complete solution- Specially designed and perfectly tuned technology for requirements of x-ray diffractometry

Use

Preparation of pellets in steel rings (51. 5 mm diameter) in the backloading method for analysis using X-ray diffraction

Material

Raw meal, clinker, cement, tone, slag, ores, oxidic material and others (feed size 100 µm)

Operation mode

Automatic
Standalone
Standalone with magazine
Linear automation
Robot automation

All advantages at a glance

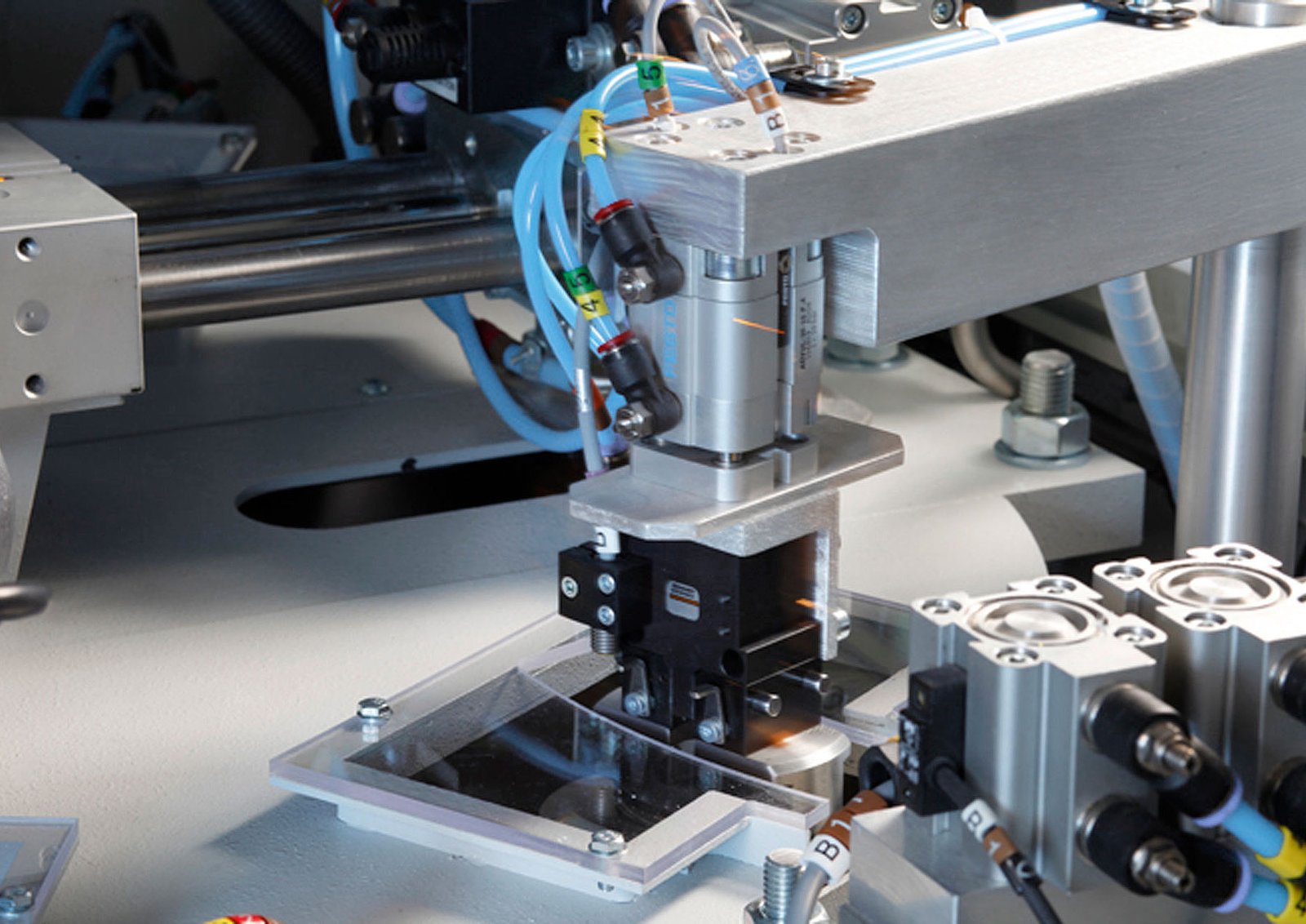

Special pelletizing process

The pressing process is completely compatible with the requirements of the XRD analysis. Low pressing forces are applied to minimize orientation of the crystals. The application using the backloading process ensures especially careful handling of the sample without any adverse influence on the surface to be analyzed. This minimizes preparation influences and enables reproducible analysis of the sample composition.

High throughput

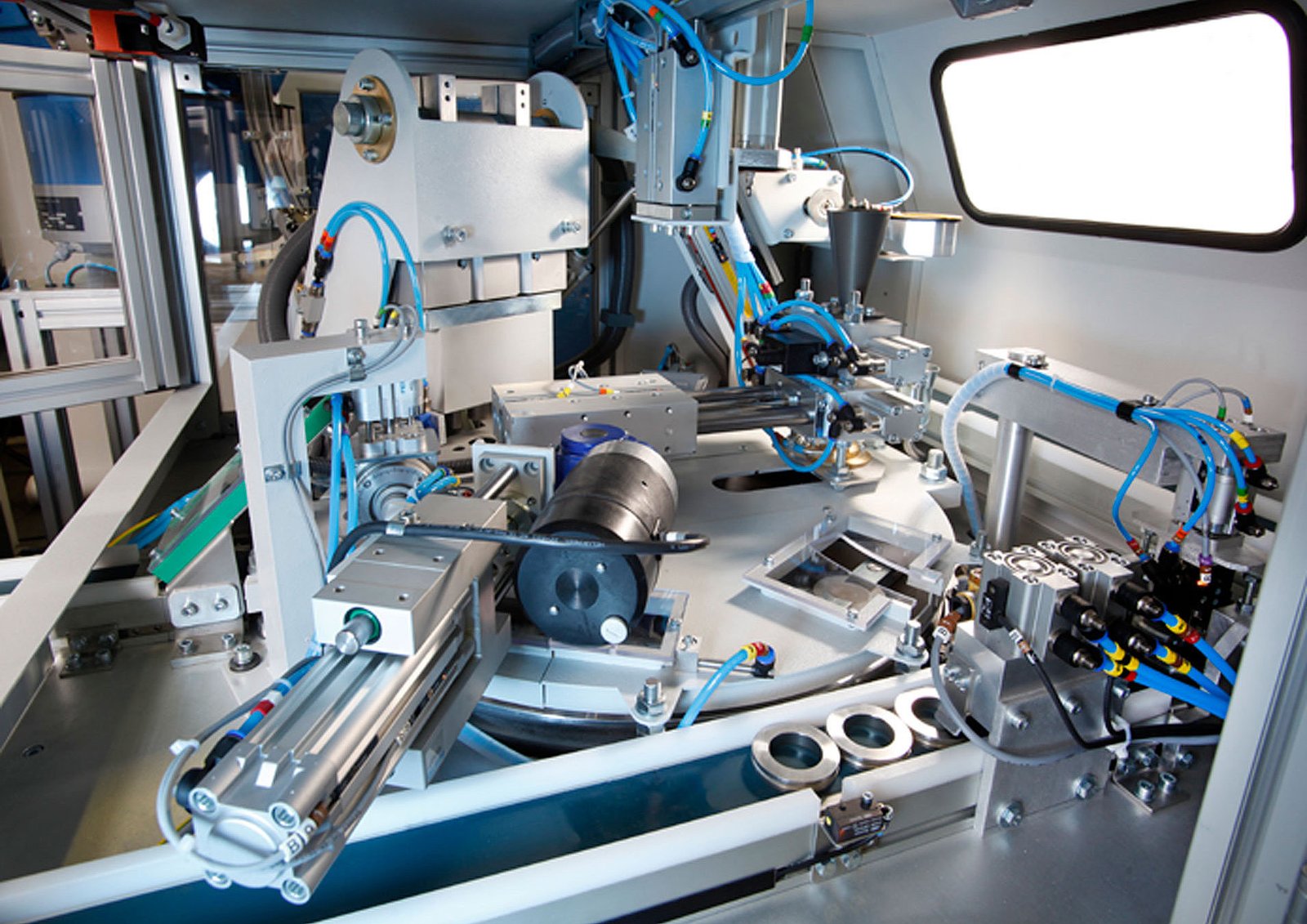

The special design of the automation with simultaneous sample processing guarantees a high sample throughput whenever required.

Reproducibility, avoidance of contamination

HERZOG’s decades of experience combined with leading technology guarantee very precise reproducibility of the sample quality. The special focus on cleaning of relevant machine parts prevents contamination of subsequent samples.

Compact design, scalability

The compact design enables optimum use of space without restricting machine maintenance. All components of the HERZOG automation are perfectly aligned and thus ensure optimum analysis results. The individual preparation steps can be easily configured and are therefore individually adapted to the requirements of sample preparation and specific material properties.

Fully automatic connection to the analyzer

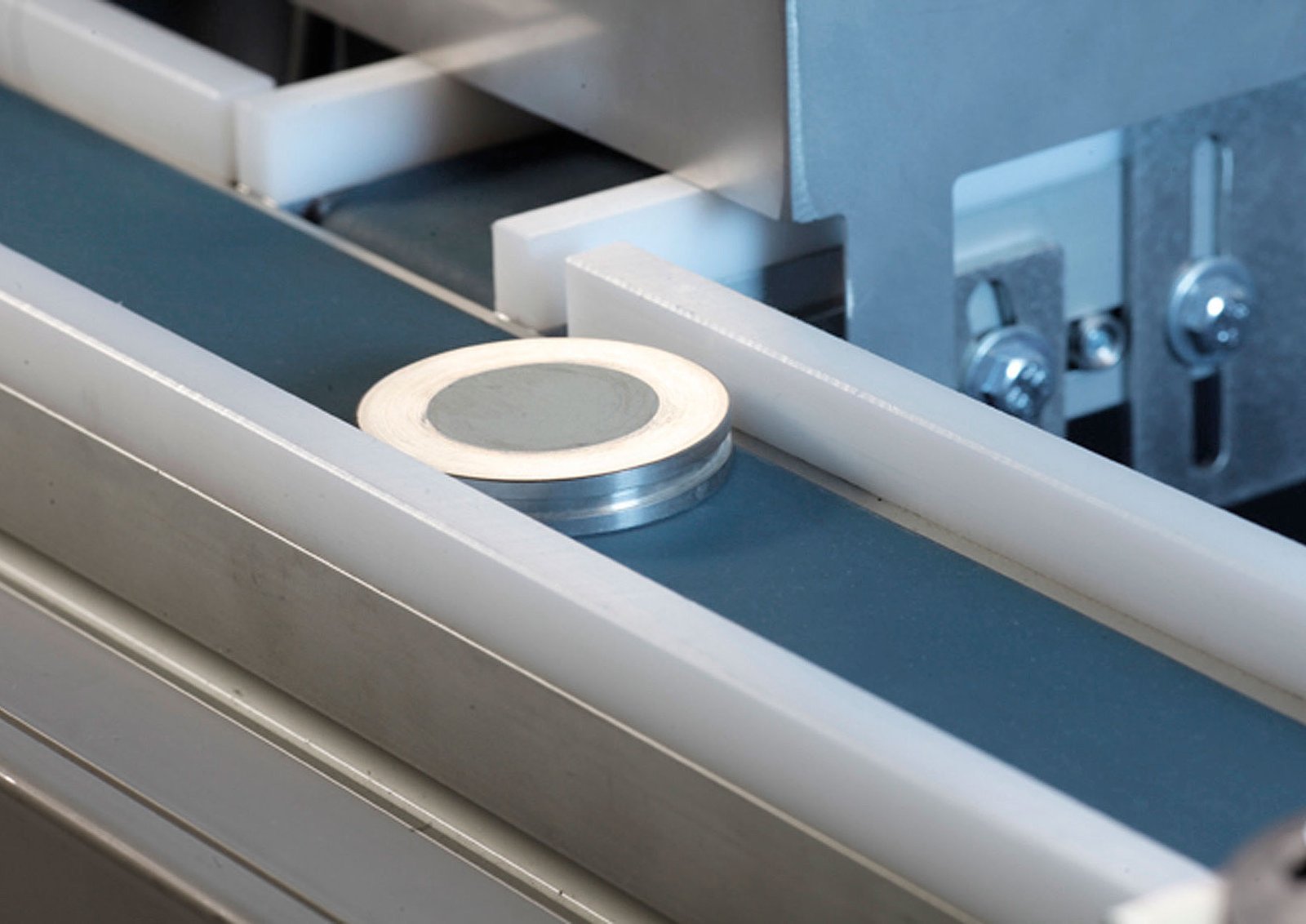

Almost all XRD analyzers produced by leading manufacturers can be easily connected to the HERZOG automation. Analysis surface faces upwards and can be easily conveyed into the analyzer.

Design options:

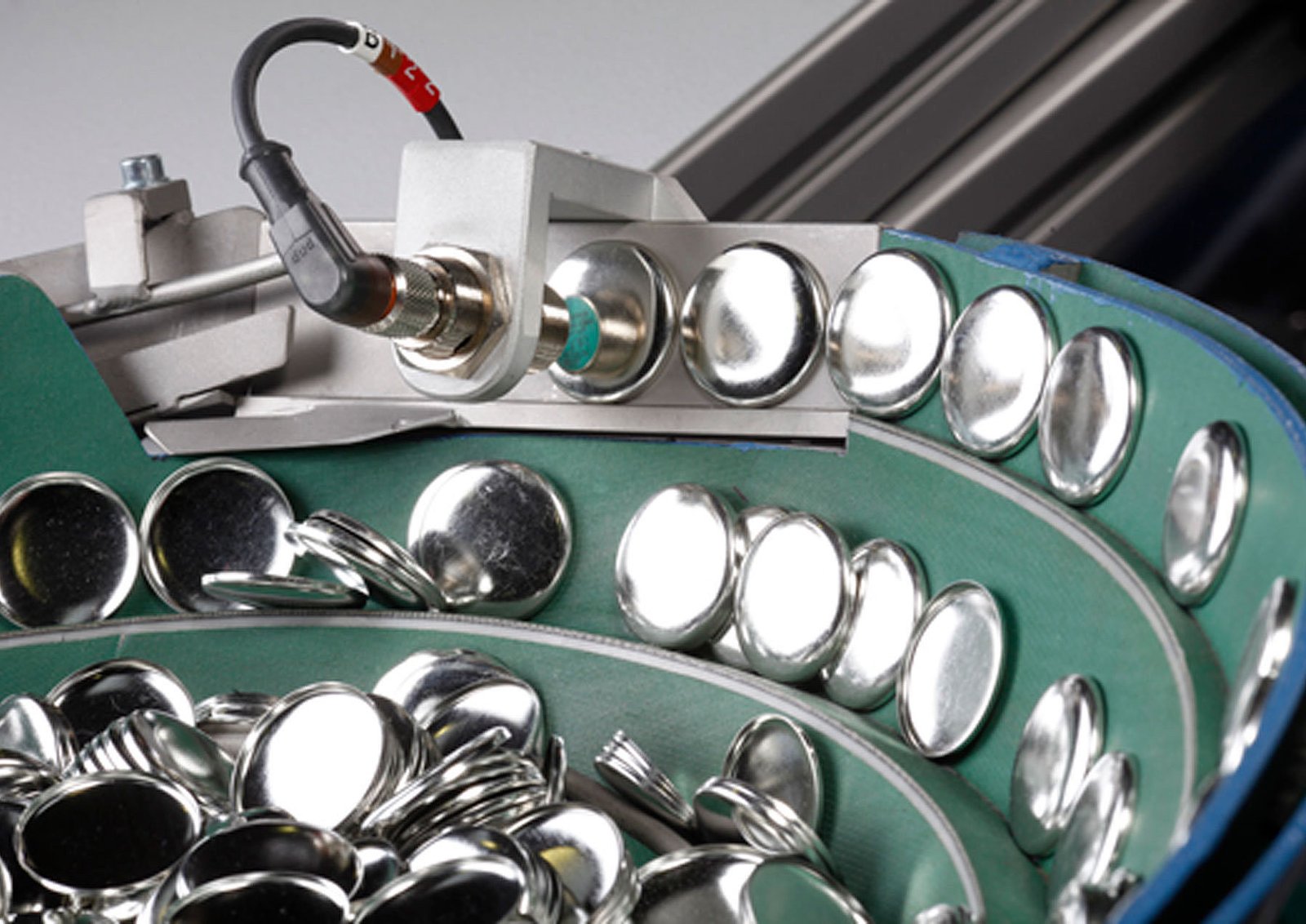

Loading magazine (30 to 300 cups)
Output magazine for empty cups
Automatic ring cleaning device
