The robust solution for sampling of hot powder material from the production process
Use
- Sampling of powder material from vertical or inclined drop chutes
Material
- Powder (hot meal and other, feed size max. < 200 µm, temperature max <900°C)
Operation mode
- Automatic
- Manual
All advantages at a glance
Optimized for sampling of hot powder material

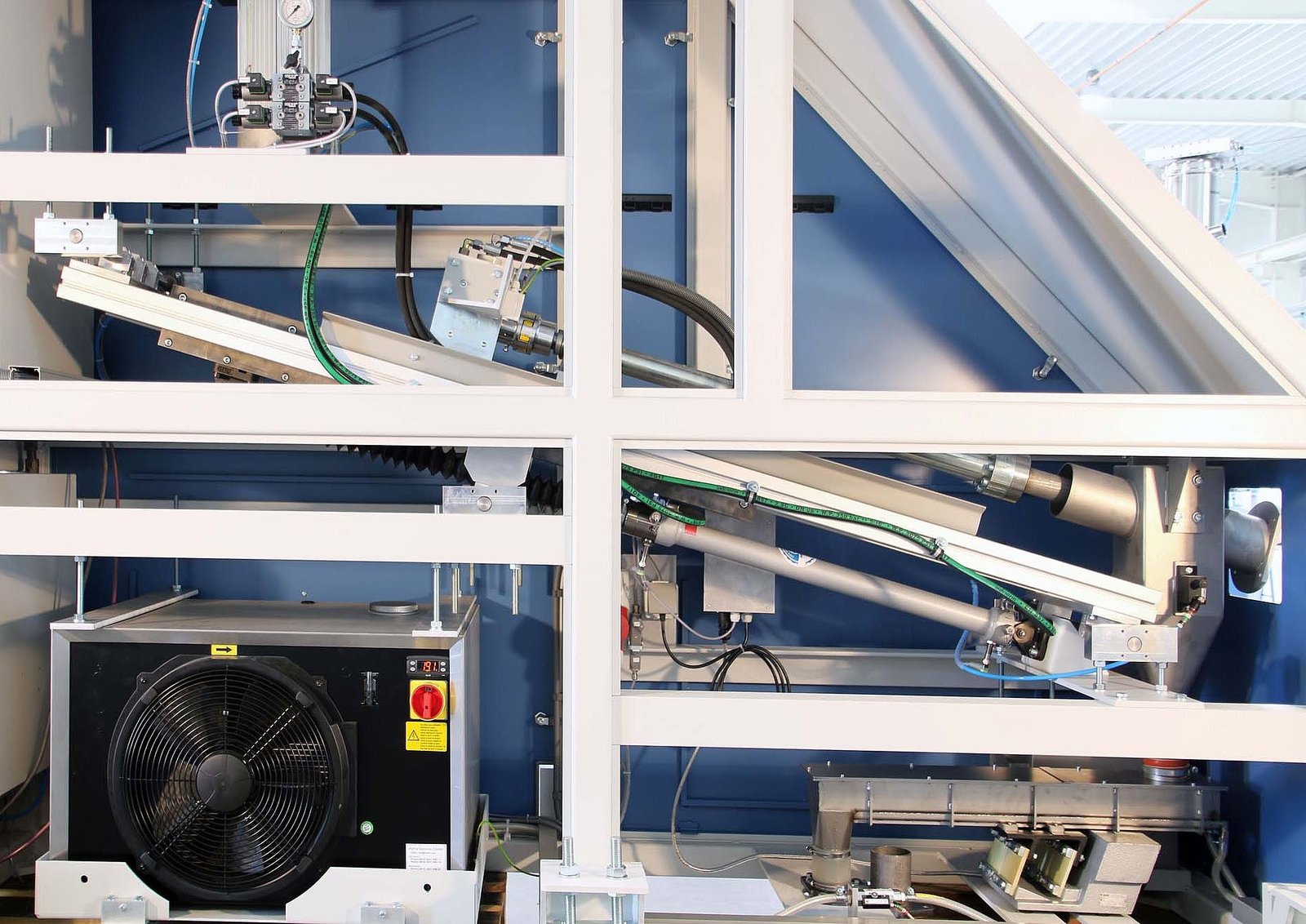

The HR-KNH sampler is designed for the sampling of hot powder and fine-grain material from inclined drop shafts. A linear conveyor transports a spoon into the material stream. After the retraction and unloading of the spoon, the material falls through a funnel into the sending station. The system can be used for both cross-sectional and random spot sampling. The sample quantity can be adjusted by control of the sampling strokes. The sampling cycle can be controlled by the PLC of a process station.
Flexible configuration

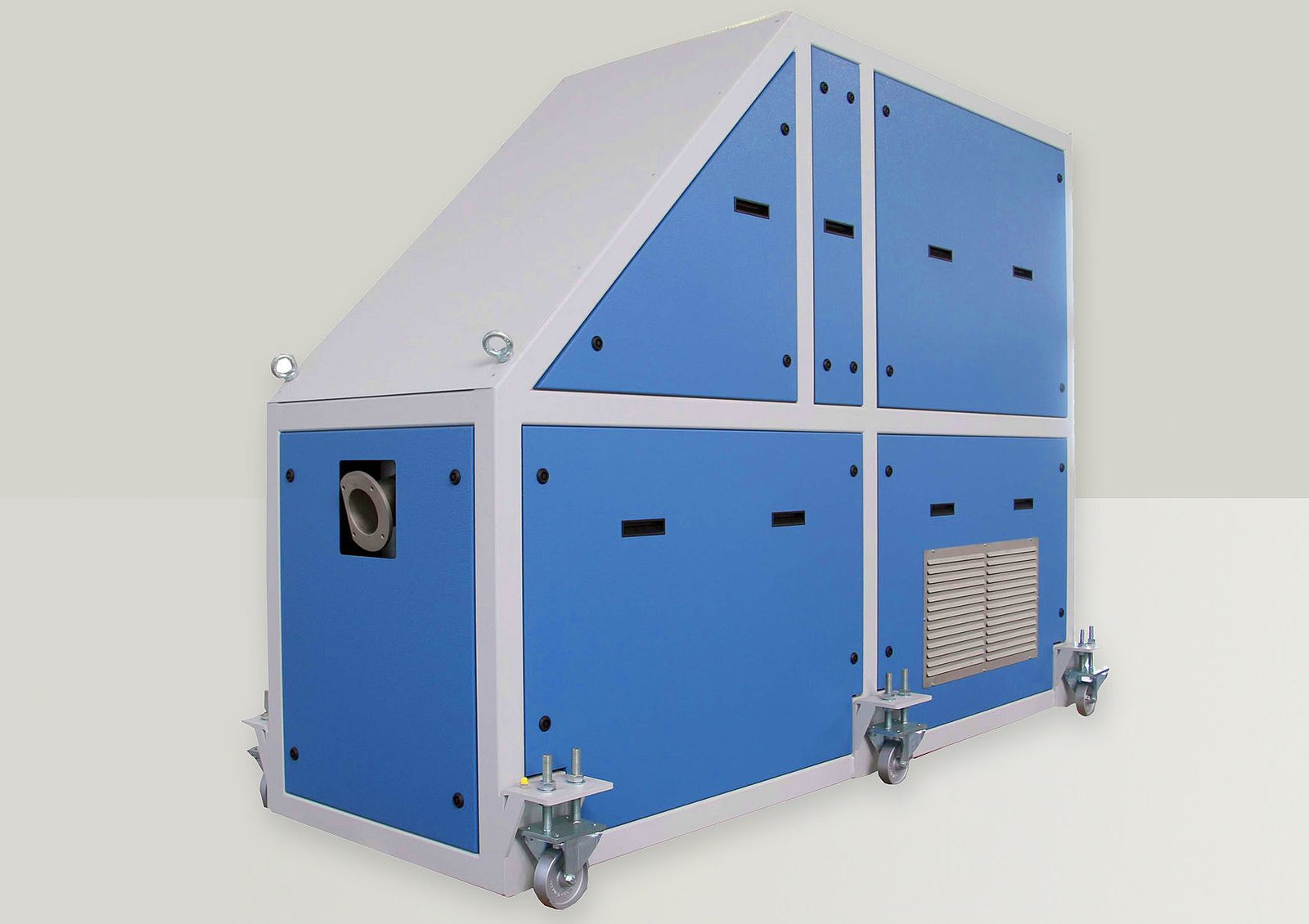

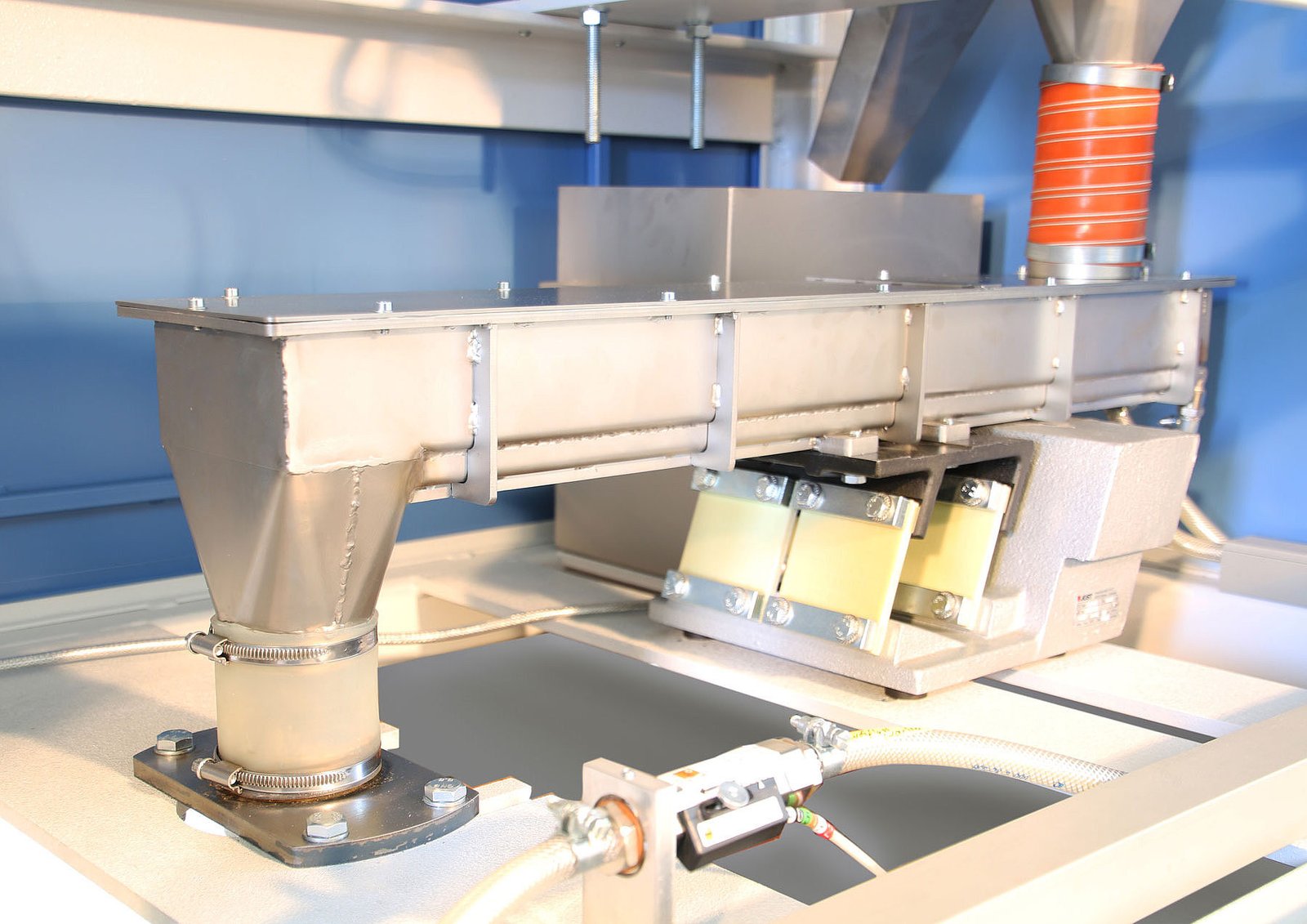

Flexible configuration Optionally, the HR-KN/H is available as an extra-robust version with hydraulic drive and welded frame. Furthermore, a water-cooled feeder is obtainable as an additional sample cooling device. Usually, the sampler HR-PN is linked to the plant station HR-BM. Here, the sample can be collected within the mixer. Alternatively, the material can be filled directly into a pneumatic carrier or cup for transportation into the laboratory. Optionally, the sample can be filled into a collecting container without plant station.
Properties

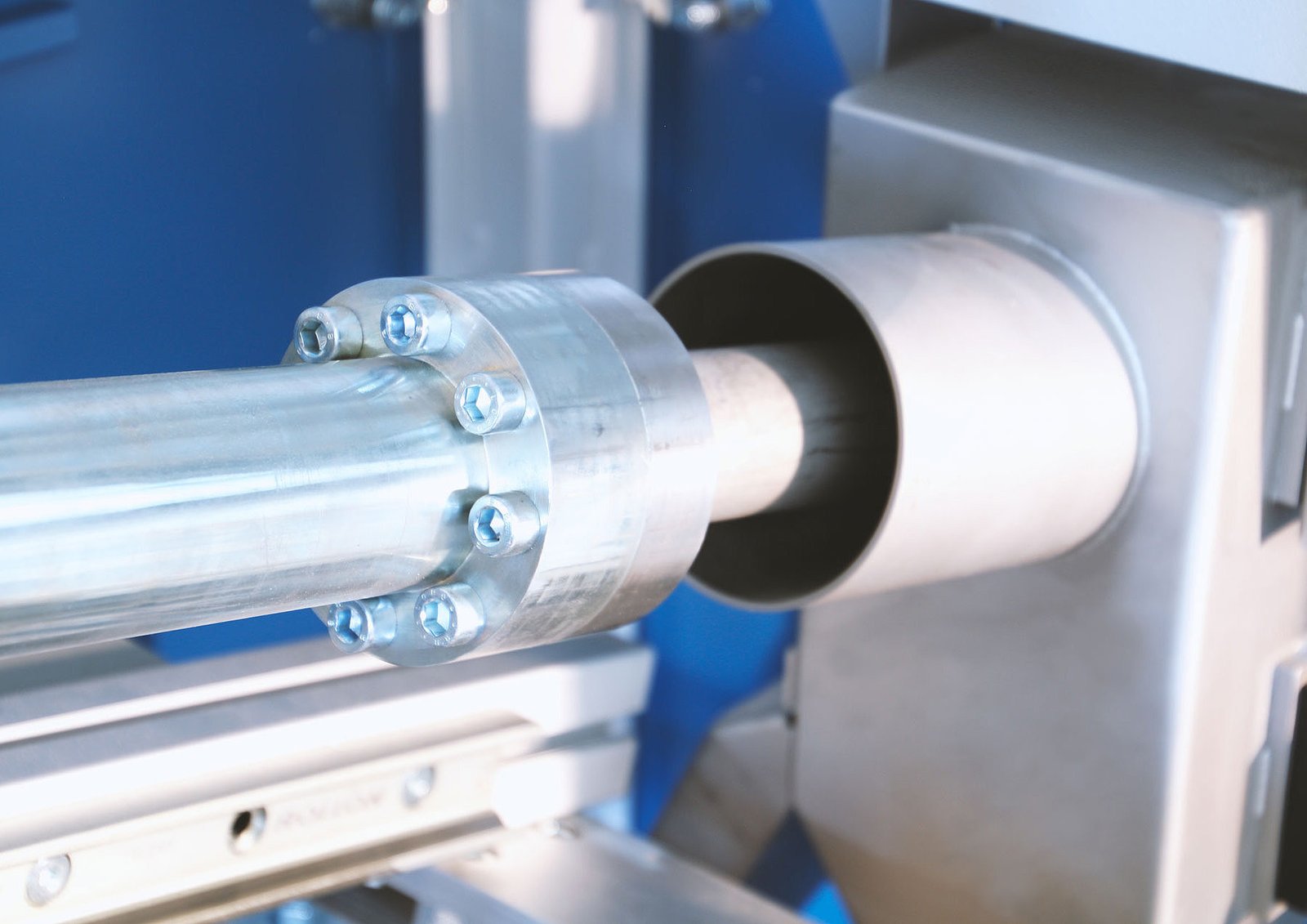

- Slotted piston with pneumatic drive
- Cooling system with fan
- Maximum sample grain size 200 µm
- Max. sample temperature 900 °C
