The reliable and flexible plant station for clinker- the solution for representative sampling and automatic transport
Use
- Collection
- Cooling
- Crushing
- Splitting and dosing of clinker samples
- Pneumatic transport to laboratory
Material
- Clinker
- Other material (feed size 90 mm according to HR-LKC type)
Operation mode
- Automatic
All advantages at a glance
Optimized for processing of clinker

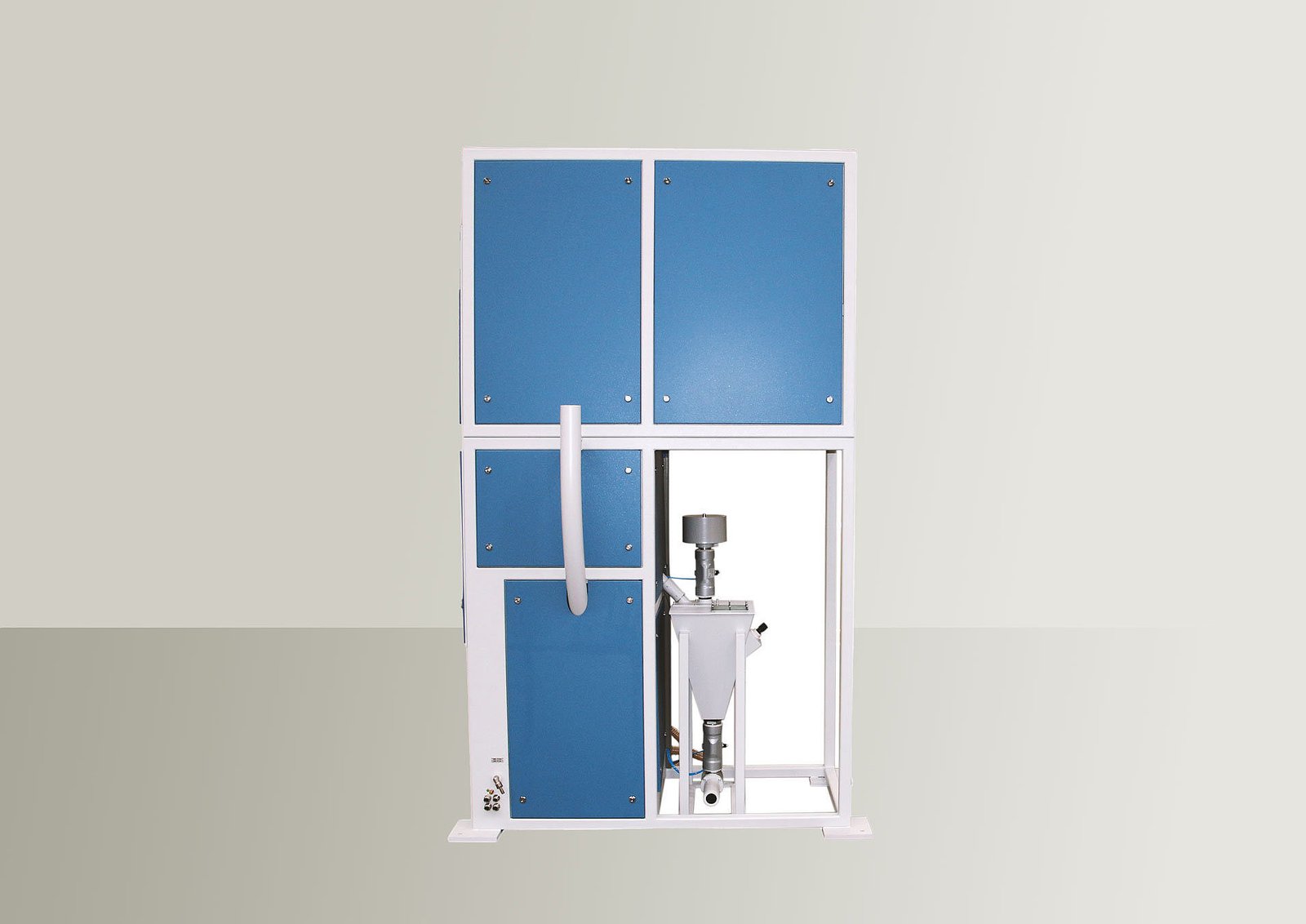

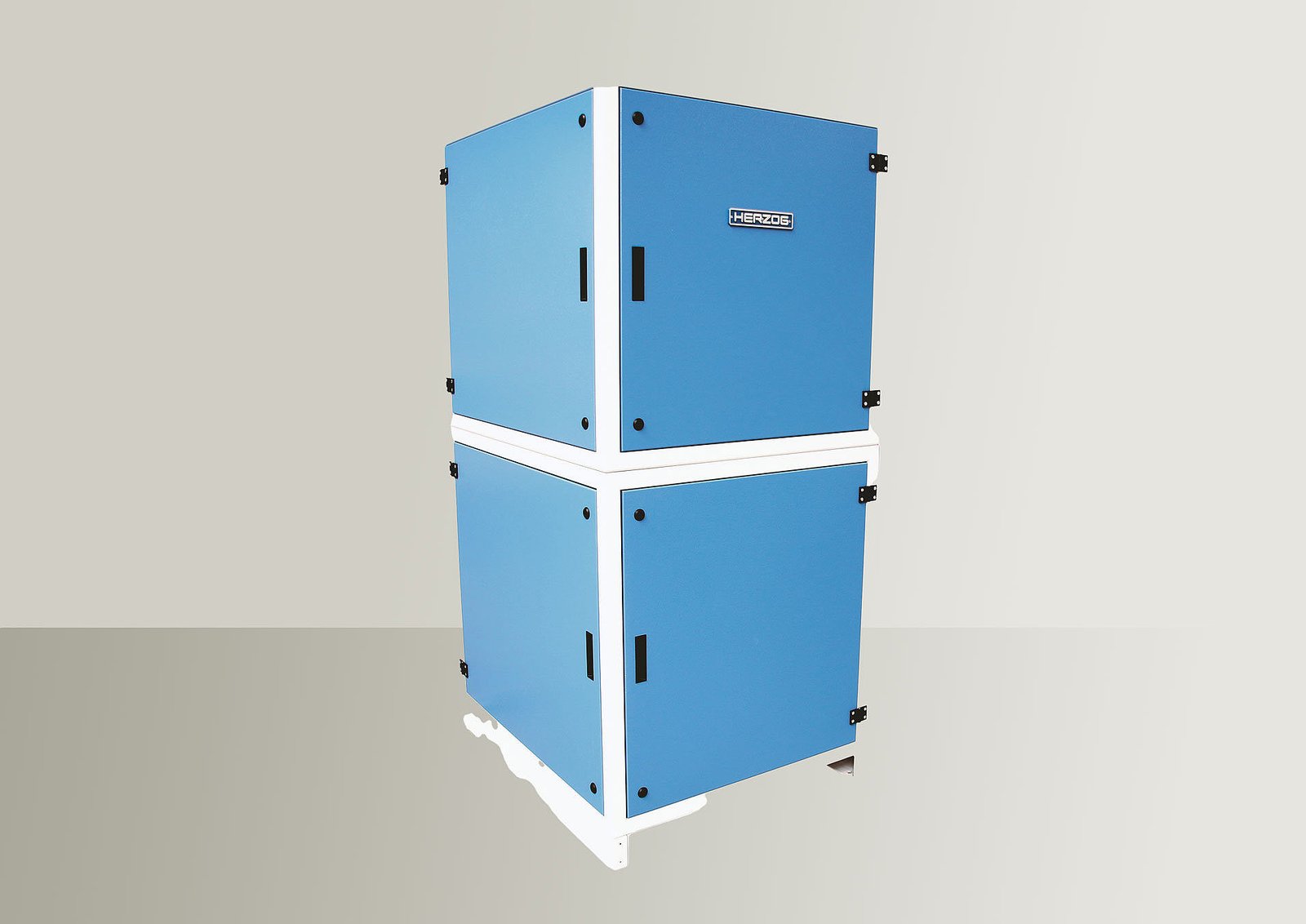

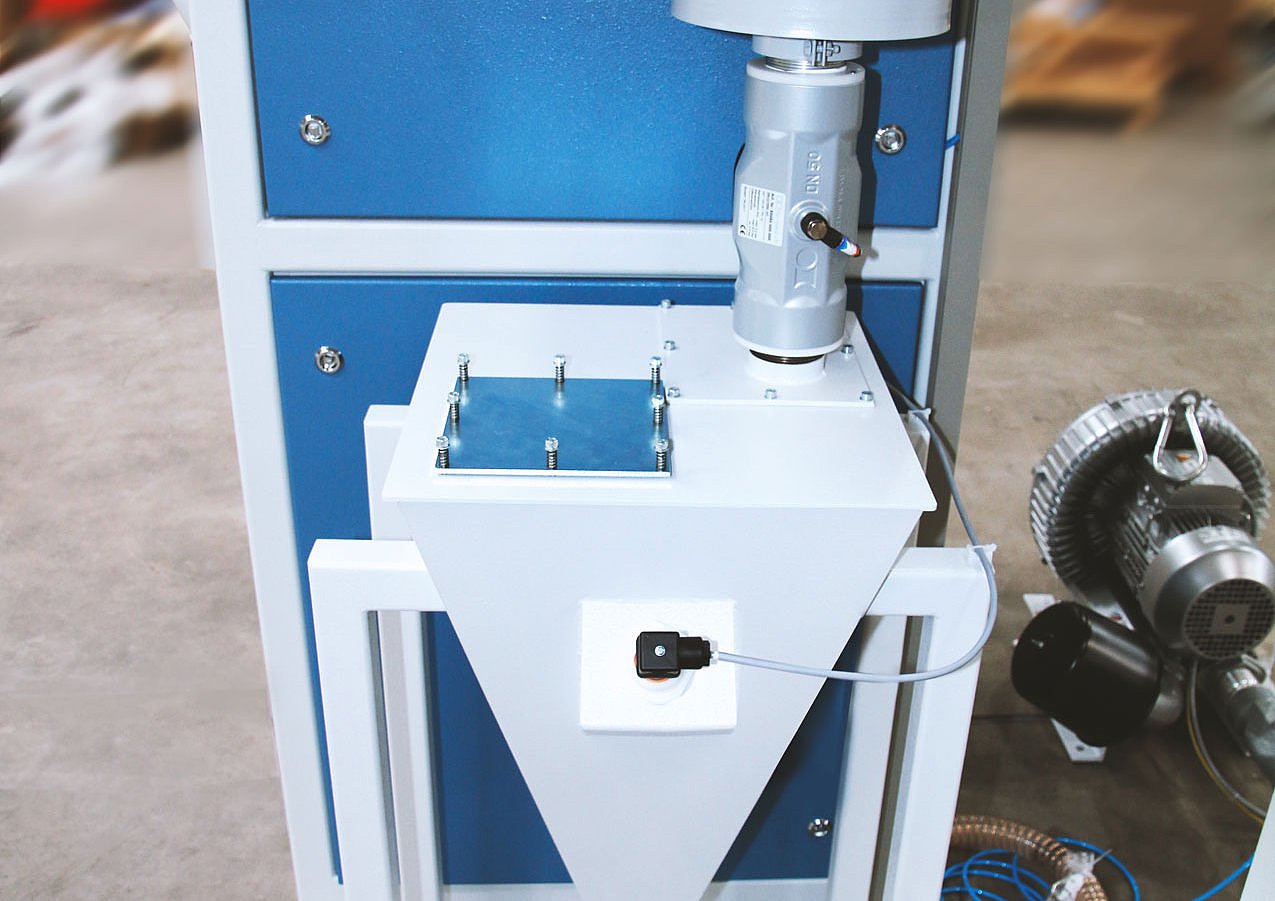

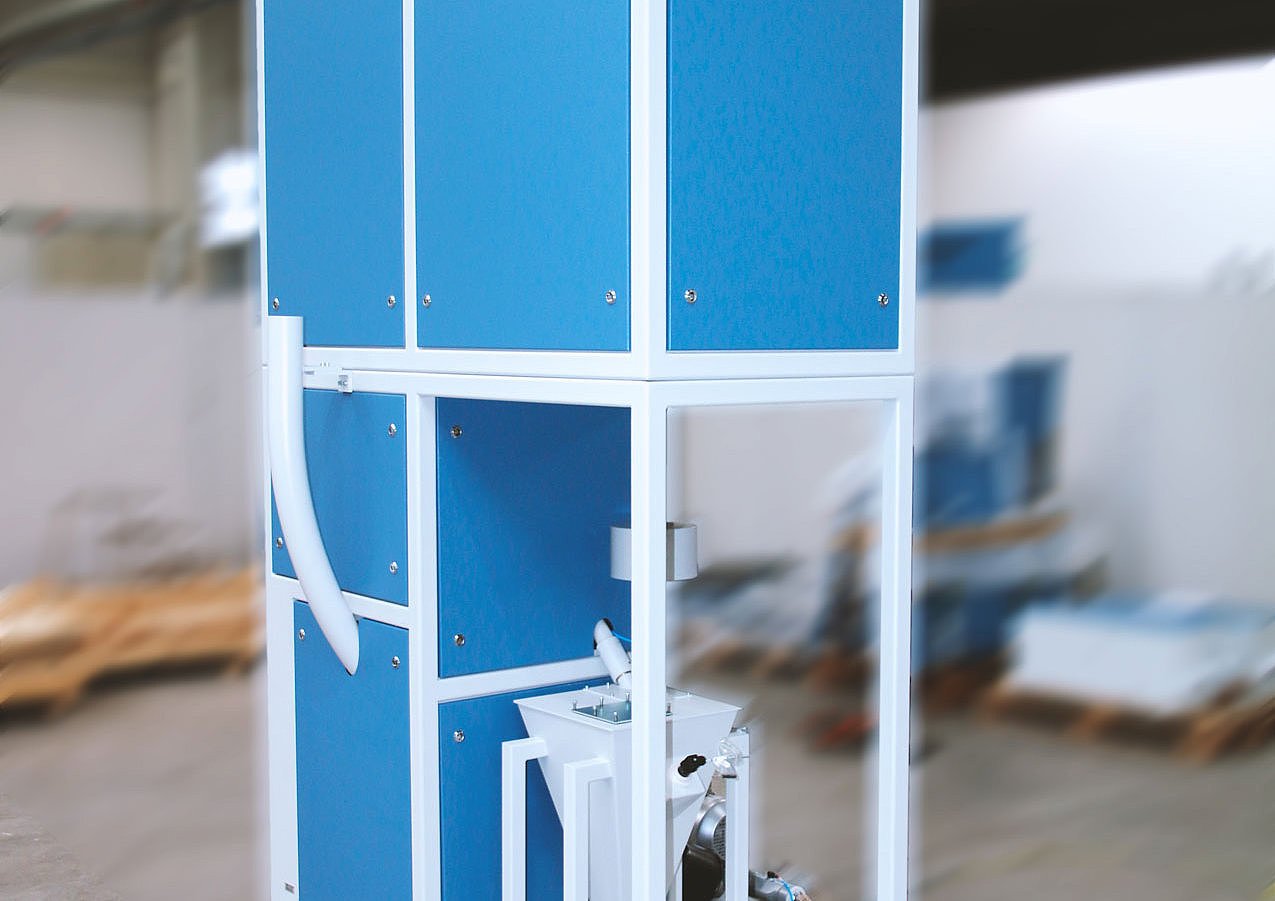

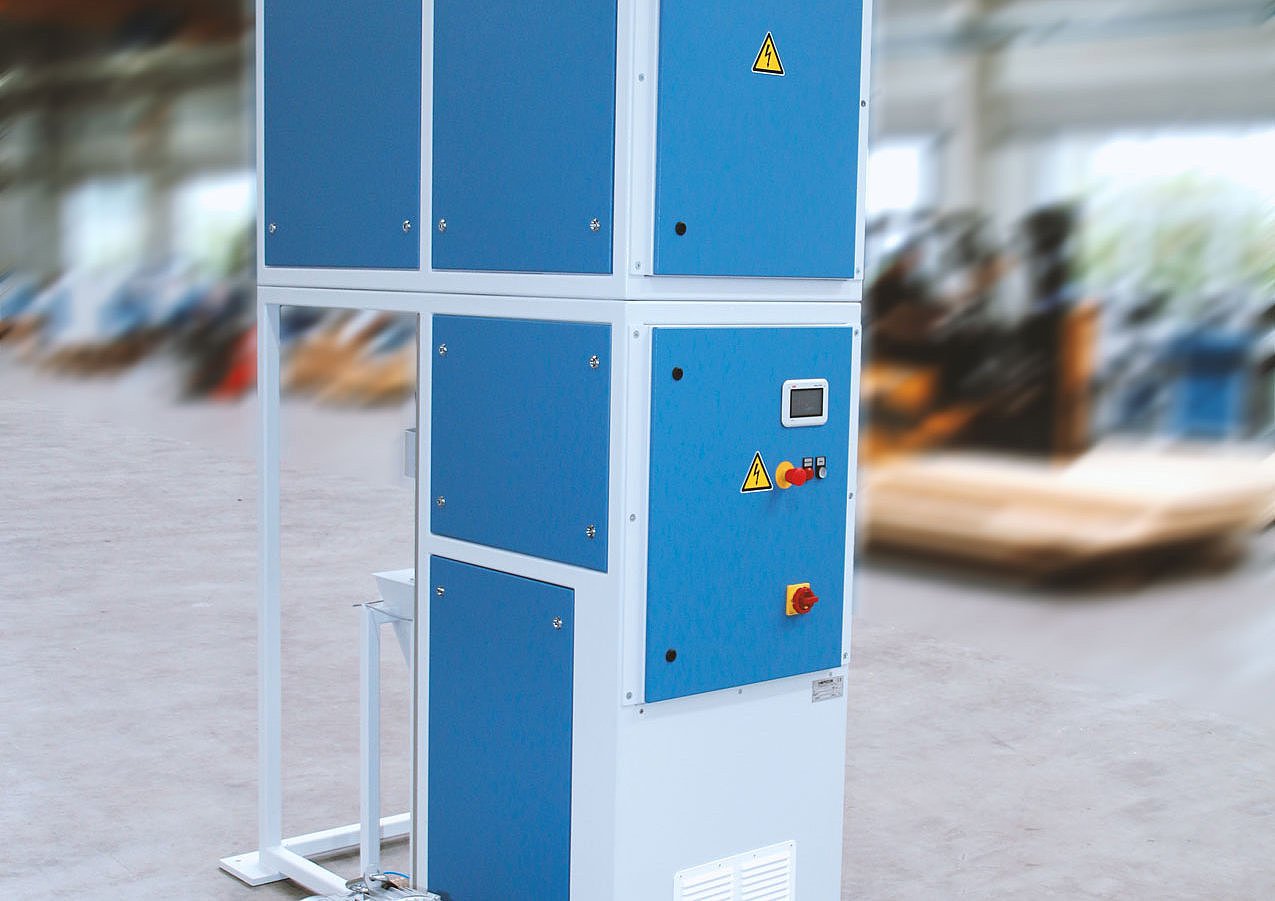

HERZOG offers a variety of different solutions for the processing of clinker samples in the plant. The standard HR-LKC plant station is suitable for clinker samples up to 25 mm and includes a mortar crusher with upstream vibrating chute, a splitter, a sample dosing, and a unit for sending and receiving pneumatic carriers.
Hot samples can be cooled down with a special cooling device. In addition, a sample return system type HR- FRG can be integrated into the clinker station.
Suitable also for large grain size

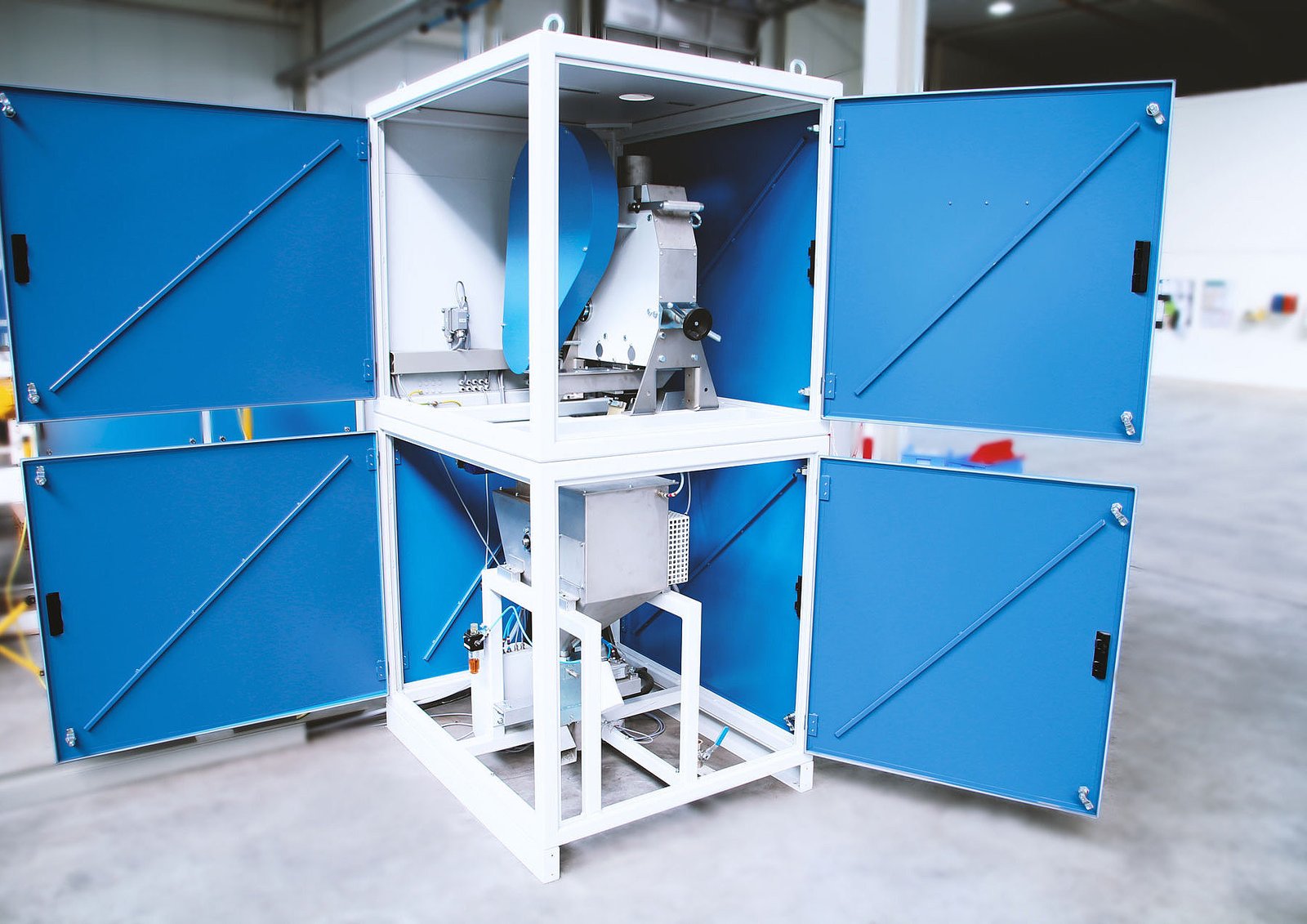

For clinker sizes up to 90 mm, a jaw crusher can be built into the HR-LKC instead of the mortar. If only small sample volumes are taken, a vibrating chute for spreading out the material as well as a sample splitter can be omitted. In this case, the small version of the HR-LKC with integrated mortar crusher and sending and receiving unit is an option.
Numerous configurations
If necessary, the system can be adapted to the situation of limited installation space. For example, the crusher and splitter can be housed in an own separate casing, while material dosing and pneumatic carrier handling take place in the HR-B or HR-BM. The HR-B/ HR-BM can also be positioned at a further distance from the crusher/splitter. In this case, the material is transported to the plant station by means of a vacuum conveying system.
Design options:
- Heater for plant station
- Injector return system HR-FRG
- Cooling unit
- Jaw crusher
