The proven standard solution for powder sampling from the production process
Use
- Sampling of powder material from vertical or inclined drop chutes
Material
- Powder (cement and other, feed size max. 200 µm)
Operation mode
- Automatic
- Manual
All advantages at a glance
Standard in cement and other material types

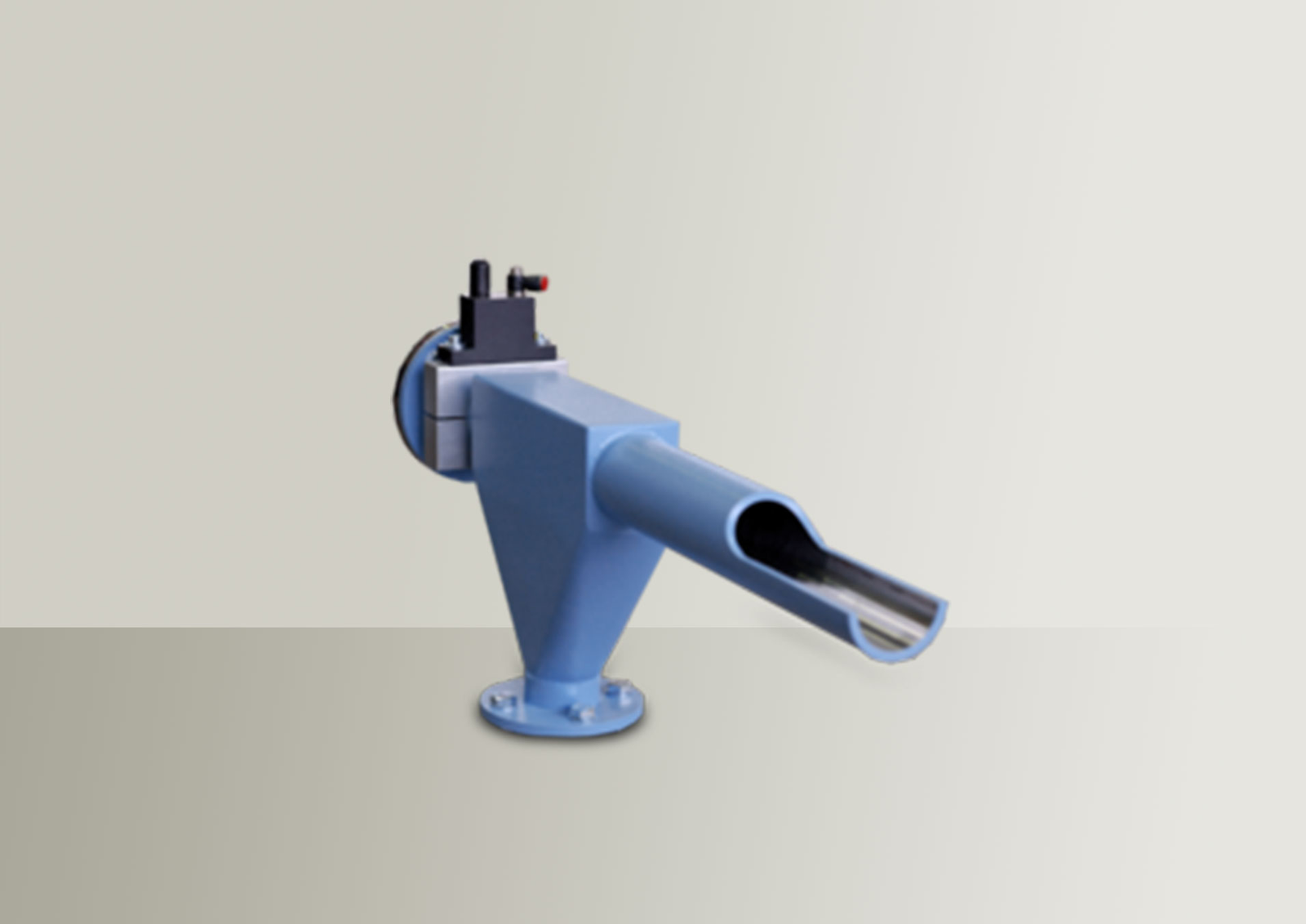

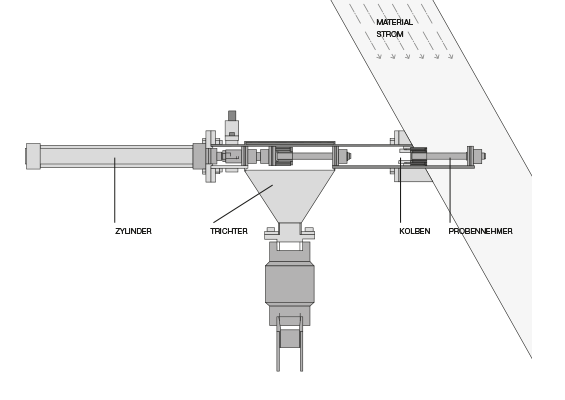

The HR-PN piston sampler is designed for the sampling of powder and fine-grain material from vertical or inclined drop shafts. A pneumatic operated sampling piston is moved into the material flow and retrieves a precise sample quantity defined by the volume of the piston. The sample is transported by tube systems or vibratory chutes to the downstream components.
Flexible at use
Usually, the sampler HR-PN is linked to the plant station HR-BM. Here, the sample can be collected within the mixer. Alternatively, the material can be filled directly into a pneumatic carrier or cup for transportation into the laboratory. Optionally, the sample can be filled into a collecting container without plant station. The sampling cycle is controlled by the PLC of the plant station.
Design options:
- Plastic collecting container (10 l) with filling level sensor
