The stand-alone solution for the preparation of combustion samples – simple and safe
Application
- Punching of stampings from disc or tab samples for combustion analysis
Materials
- Disc specimens up to 40 mm diameter
- Lug specimens up to 35 mm wide, lug up to 35 mm length, up to 5 mm thick (may vary depending on material hardness)
Operating mode
- Semi-automatic
All advantages at a glance:
Semi-automatic variant

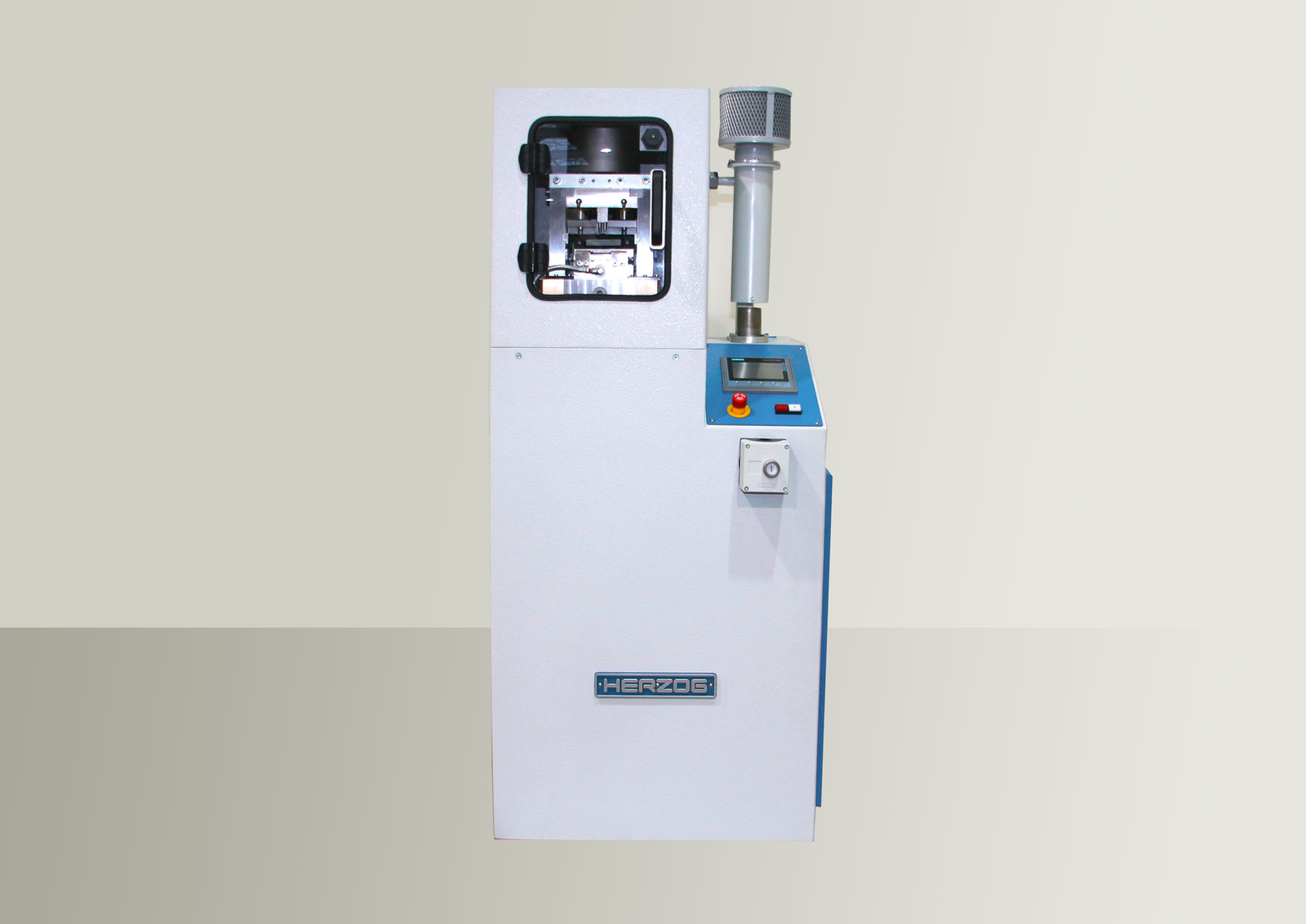

With the HUST-MAN, Herzog also offers a semi-automatic stand-alone machine for punching samples. Disc specimens with a diameter of up to 40 mm and a thickness of approx. 4-5 mm or lug specimens are inserted into the punching device by hand and the safety cover is closed. The punching process is started by pressing the start button. The punched out analysis pieces are pneumatically transported away from the punching area and collected in a collection container. The specimen is removed by hand.
Security
The machine is completely closed and soundproofed. The input flap is protected by safety switches.
