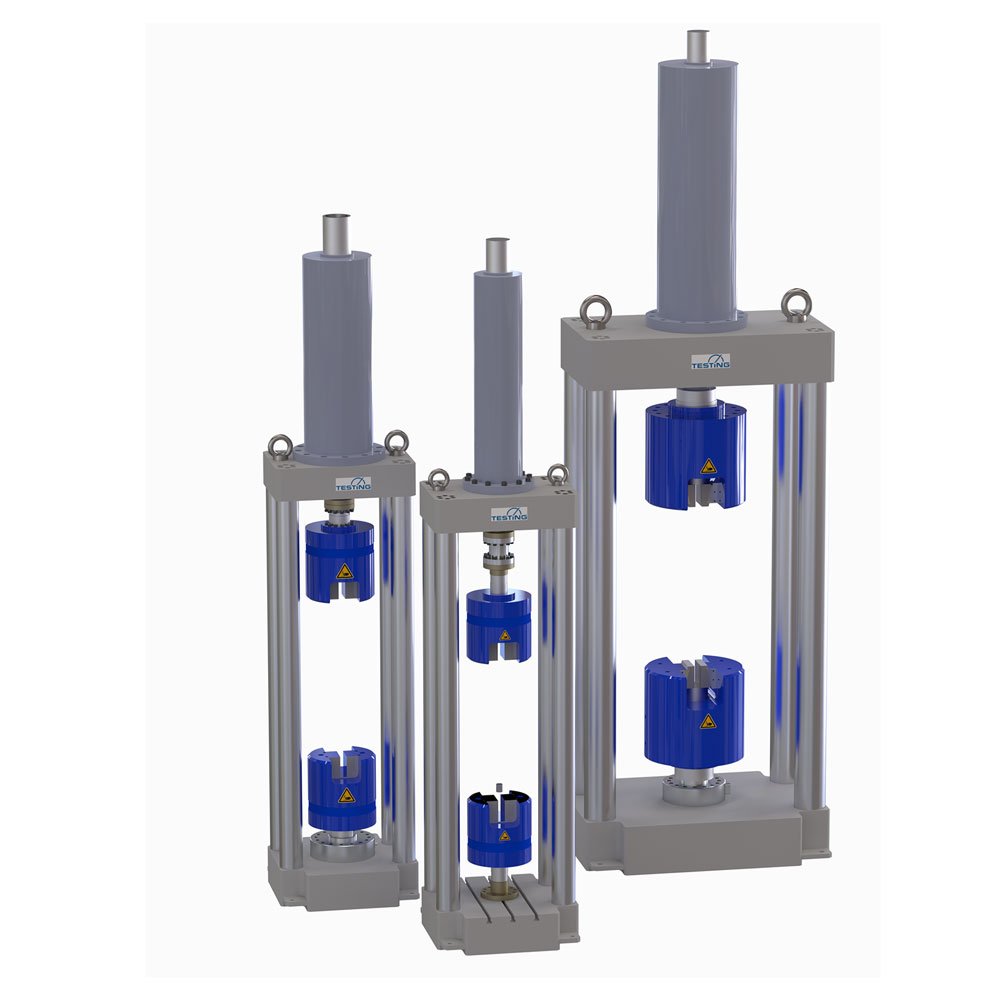

Universal compression/flexural and tensile testing machine,
servo-hydraulic, for force/displacement/deformation controlled testing
Order No.:
300 kN Universal Testing Machine – 13.1501.01
600 kN Universal Testing Machine – 13.1502.01
1200 kN Universal Testing Machine – 13.1503.01
2000 kN Universal Testing Machine – 13.1504.01
Numerous static and quasi-static compression, tensile, and flexural tests on mortar, steel fiber reinforced concrete, reinforced concrete, steel, polymers, etc.
Universal application in material and component testing, research and development, and quality control.
Accuracy and requirements according to EN ISO 7500-1, ASTM E4, BS1610.
Accuracy of strain measurement according to DIN EN ISO 9513, ASTM E83.
Machine frame:
torsionally rigid, four-column design with backlash-free clamped columns.
Double-acting, servo-quality cylinder (low-friction sealing system mounted on the upper crosshead, including anti-rotation device on the upper clamping head).
- Technical data
-
Item
No.Force measuring range
capacity range
class 1Test chamber height
test chamber hightWeight in
kgDimensions (
WxDxH)13.1501.01
3-300
650
1800
700 x 750 x 3100
13.1502.01
6-600
750
3600
800 x 950 x 3400
13.1503.01
12-1200
800
5200
900 x 1100 x 4200
13.1504.01
20-2000
1100
8000
1200 x 15400 x 5500
Test speed was 250 mm/m in each case.
- Body-Over-Wedge clamping heads (side load)
- The advantage of body-over-wedge clamping heads is that only minimal pre-forces are exerted
on the specimens during clamping .Clamping jaw inserts for the following sample
dimensions are included in the scope of delivery:
Flat samples:
0-10 mm, 9-18 mm, 17-26 mm, 25-36 mm;
Round samples:
Ø6-15 mm, 15-24 mm, 24-32 mm, 32-40 mm
- The test frame with control cabinet meets all safety requirements according to
DIN 51233 and all requirements according to DIN EN ISO 7500-1.
The complete machine is delivered with an EU Declaration of Conformity and operating
instructions in accordance with Machinery Directive 2006/42/EC.
The test machine can optionally
be equipped with a large, impact-resistant, transparent polycarbonate test chamber guard.
(We recommend a test chamber guard in cases of brittle, sudden fracture or splintering.)
A Doli EDCi20 controller is used as a universal digital measurement and control electronics unit for testing machines
- It is mounted in the control cabinet and can optionally be operated via remote control
- The control electronics enable fully automated test execution with predefined loading rates for force-, displacement-, and strain-controlled tests.
Sensitive and adjustable fracture detection ensures early detection of specimen failure - Communication to the PC: Ethernet port / USB 2.0
configuration. - Remote maintenance via TeamViewer function (PC required).
Expansion option: 3 iSI modules (2 onboard)
System clock: max. 2.5 kHz
Supply voltage + 24 VDC, 1.5 A
Control output ±10V
A/B Pulse sequence for controlling downstream electronics
Automatic sensor detection via
intelligent sensor connector SGS
calibration data is stored in the sensor connectors
- • Hydraulic or mechanical crosshead adjustment for adapting test chamber heights
• Test chamber guard made of impact-resistant, transparent polycarbonate with safety switch
• Axial extensometers, measuring probes and other sensors for all applications
• Video extensometers, crack width transducers, long-stroke transducers
• Separate force transducers for small force measuring ranges
• Bending and compression device, shearing d
