Article number: 1.0283
According to EN 196-9. Used to measure the heat of hydration of cement by the semi-adiabatic method.

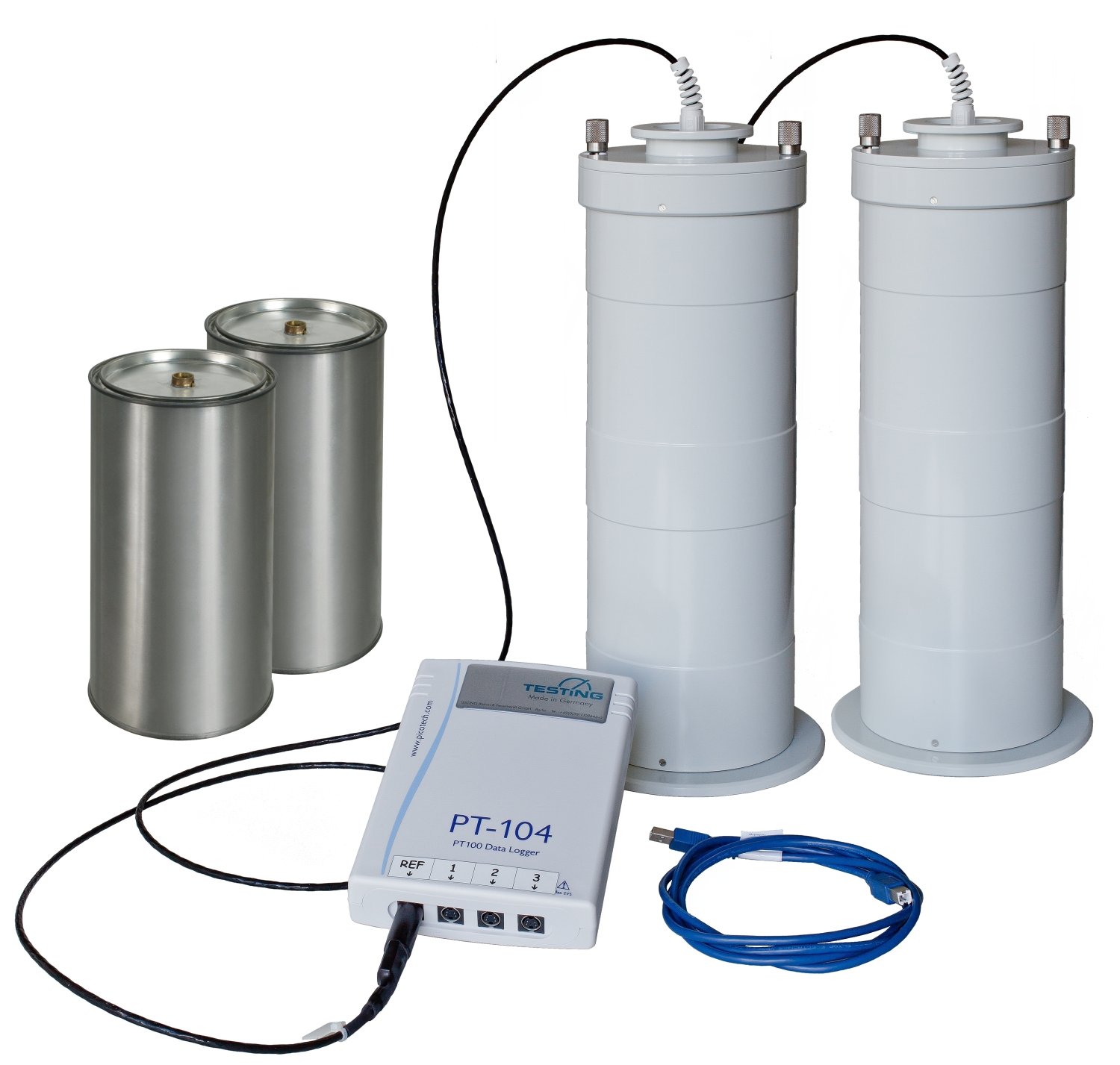

- Scope of delivery
- 1.0283.00 Test calorimeter: Including factory calibration certificate, dewar vessel and temperature sensor Pt100
1.0283.01 Reference calorimeter: Including aluminium cylinder
1.0283.02 Mortar-sample containers EN 196-9: For holding the mortar samples Volume 880 cm³ (1 unit = 50 pcs.)
1.0283.03 Temperature recording device with 4 channels* (1 channel for the reference calorimeter and 3 channels for connection for a maximum of 3 test calorimeters). For measuring, recording and transmission of temperature values, USB-Port
1.0283.04 Analysis software**: For reporting and editing the recorded and stored values and for calculation of the heat of hydration. With comprehensive functions, License required - Dimensions
- Extension for another 4 test calorimeters is possible with a second 4 channel data box (1.0283.03).
- A standard PC with monitor is required to operate this system in which is not supplied by us.
