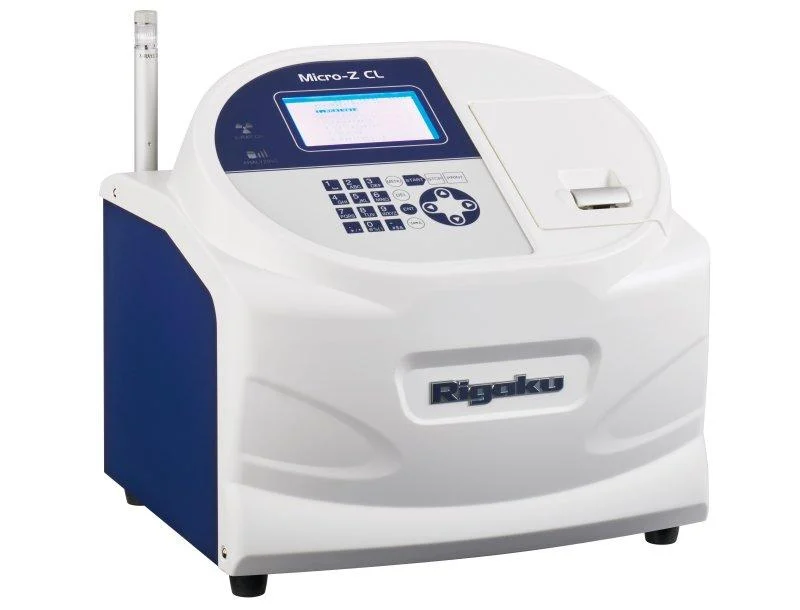

Micro-Z CL

Wavelength Dispersive X-ray Fluorescence Chlorine Analyzer

Ultralow chlorine analysis for petroleum and related products

Sulfur correction can be performed even for samples with unknown sulfur concentration for more reliable quantification performance. Expensive helium gas is not used because the partition unit between the sample and optical chamber keeps the optics in vacuum.

Micro-Z CL Features

Superior optics for chlorine analyses
Equipped with an air-cooled X-ray tube
High sensitivity using doubly curved analyzing crystal
Simple sample preparation by pouring the sample into a liquid cell. Cover with film for measurement.
Uses inexpensive, dedicated liquid cells

Micro-Z CL Specifications

X-ray tube	End window type, Pd anode
Analyzing crystal	RX9 doubly curved crystal
Detector	Sealed proportional counter
Sample chamber	Air
Optical chamber	Vacuum
Power requirements	Single phase 100-120 V 15A 50/60 Hz Single phase 220-240 V 10 A 50/60 Hz
Ambient temperature	15~30°C
Humidity	Less than 75% RH
