Mortar mixer TESTING, 5 l, dust extraction

Mortar mixer TESTING, 5 l, dust extraction

Categories: , , , , , , , , ,
Facebook
Twitter
LinkedIn
WhatsApp

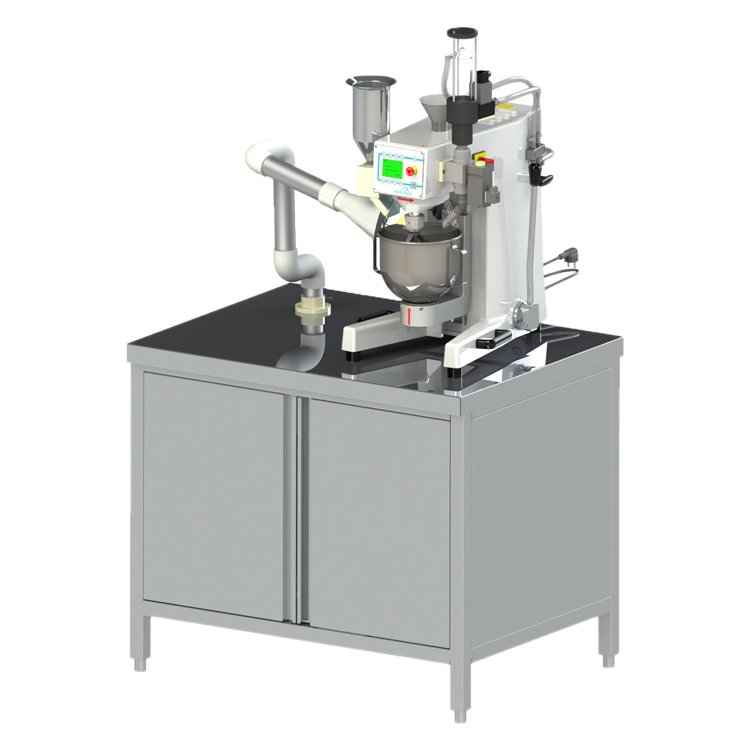

MM5-moertelmischer-wasserdurchlauf-staubabsaugung

Product Details

Article number: 1.0206.01

According to EN 196 (go to ASTM-variation).

Necessary accessories

1.0206.05 stainless steel cabinet, as base, two doors

Designed to accomodate water pumping unit, water tank and the dust-extraction system

Technical data
5 liter capacity
Automatic program control, sand feeder, water dosing system and dust extraction system
Manual supply of cement
Integrated dust extraction system
Heavy-duty design, made of aluminium and gray cast-iron parts
Mixing bowl and stirrer are made of stainless steel
Fully automatic sand feeder, water dosing system and operation of the stored mixing programs:
P1 according to EN 196-1, EN 413
P2 according to EN 480;
P3 according to EN 196-3
P4 according to EN 196-9
Two mixing speeds:
140 ± 5 rpm, 285 ± 10 rpm
110 – 230 V / 50 – 60 Hz / 0,37 kW
Dimensions
Cabinet: (W x D x H) = 1000 x 750 x 850 mm
Weight: 70 kg

1.0206.01-operating_instructions-1-mortar-mixer-5-liter-v5-engl.pdf
