Mortar mixer TESTING, progr.

Mortar mixer TESTING, progr.

Categories: , , , , , , , , ,
Facebook
Twitter
LinkedIn
WhatsApp

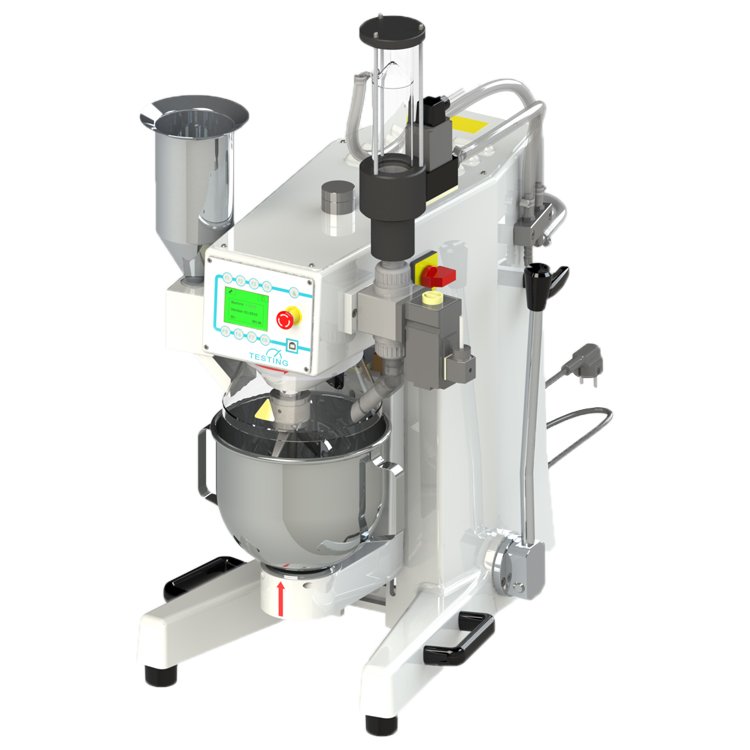

MM7-moertelmischer-sand-wasserzulauf

Product Details

Necessary accessories
1.0206.02 stainless steel cabinet, one-door
As base for the unit, including the necessary installations of water pump and the water tank
Technical data
5 litres capacity
Manual supply of cement
Heavy-duty design, made of aluminium and gray cast-iron parts
Fully automatic sand feeder, water dosing system and operation of the stored mixing programs:
P1 according to EN 196-1, EN 413
P2 according to EN 480
P3 according to EN 196-3
P4 according to EN 196-9
Two mixing speeds:
140 ± 5 rpm, 285 ± 10 rpm
110 – 230 V / 50 – 60 Hz / 0,37 kW
Dimensions
Mortar mixer weight: 70 kg
Cabinet: (W x D x H) = 600 x 750 x 850 mm
Weight: 38 kg

1.0206-operation-manual-mortar-mixer-5-liter-en.pdf
