High-performance Direct Excitation EDXRF Spectrometers
Powerful, non-destructive qualitative and quantitative elemental analysis

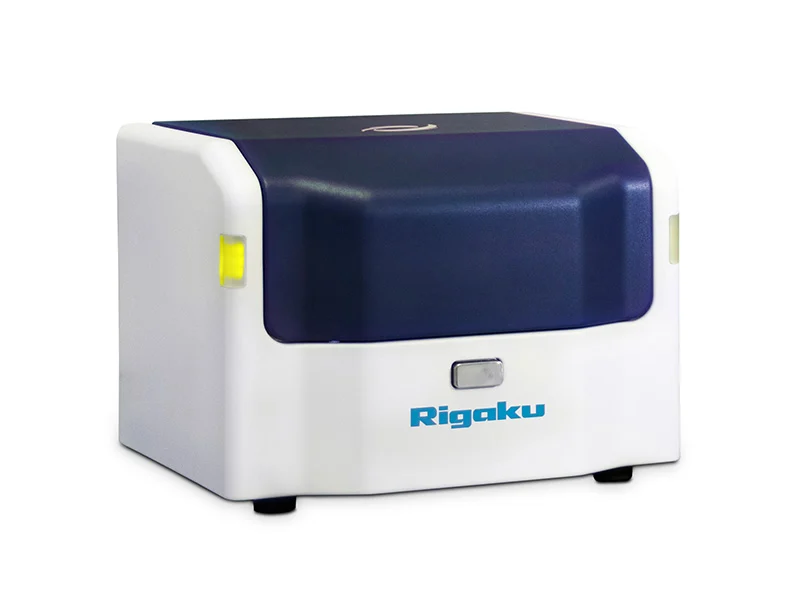

The Rigaku NEX DE Series are high-performance, direct excitation EDXRF spectrometers that deliver exceptional elemental analysis capabilities. Utilizing a high-powered X-ray tube, these instruments provide superior analytical performance, including higher count rates, improved precision, and the ability to analyze even challenging materials with ease. This versatility allows the NEX DE Series to address a wide range of applications, from demanding quality control needs to those requiring small spot analysis. The series includes NEX DE and NEX DE VS.
NEX DE Series Overview
Empowering your analysis with high-performance EDXRF
The NEX DE and NEX DE VS models deliver high-performance results when analysis time or sample throughput is critical. They are designed for speed and precision, important for high-volume analytical labs or fast-paced settings.
They have a 60 kV, 12 W X-ray tube, single and multilayer tube filters, and a high-performance silicon drift detector (SDD) that supports count rates over 500K cps. The high-count rates provide low limits of detection and excellent spectral resolution, and high-throughput measurements are obtained with various interchangeable automatic sample changers. These features enable high-precision analytical results in the shortest possible measurement times.

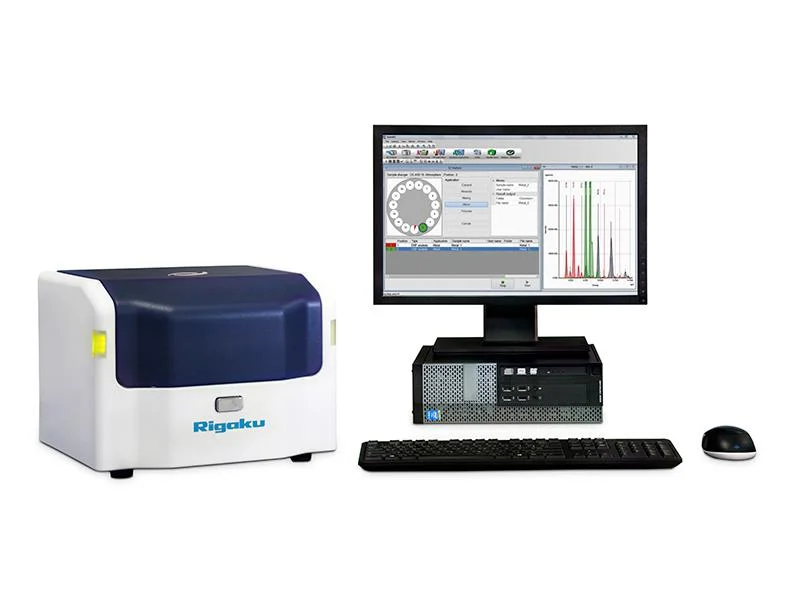

Additionally, these instruments are packaged with QuantEZ software designed to simplify method development and maximize your time. The intuitive instrument control, simple menu navigation, and EZ Analysis interface streamline routine operations and allow you to create new methods using a simple flow bar wizard. These systems are well-suited for exploration, research, bulk RoHS inspection, education, forensics, and industrial and production monitoring applications.
Small spot EDXRF measurements
For your small spot analysis needs, the NEX DE VS model features a high-resolution camera and automated collimators to allow for precise positioning of samples to analyze 1 mm, 3 mm, and 10 mm spot sizes. The instrument’s large sample chamber accommodates samples up to 30 cm in diameter and 10 cm tall, and the Point Analysis interface and integrated backlit camera allow easy sample positioning. NEX DE VS is an excellent option for measuring coatings on smaller parts, screening small samples for electronic waste initiatives, or investigating the identification of foreign matter of unknown composition.
NEX DE Series Features
- Rapid, non-destructive elemental analysis
- Multi-element capabilities, from ppm to percent levels
- Measurement of all elements from sodium (Na) to uranium (U)
- Multi-application versatility, including solids, liquids, alloys, powders, and thin films
- 60 kV X-ray tube for wide elemental coverage
- High-performance SDD for superior data
- Small spot analysis, 1 mm, 3 mm, and 10 mm (NEX DE VS model)
- Powerful, easy-to-use QuantEZ software with multilingual user interface
- Multiple automated tube filters for enhanced sensitivity
- Advanced RPF-SQX Fundamental Parameters software featuring Rigaku Scattering FP
- Low cost of ownership, self-installed and maintained
- See Specifications for options
NEX DE Series Specifications
| Technique | Direct excitation energy dispersive X-ray fluorescence (EDXRF) | |
|---|---|---|
| Benefit | High-performance EDXRF systems offering enhanced sensitivity, speed, and flexibility
Small spot analysis capabilities using high-resolution camera, automatic collimators, and user-friendly Point Analysis screen (NEX DE VS) |
|
| Technology | EDXRF using a high-performance silicon drift detector (SDD) | |
| Attributes | 60 kV 12 W X-ray tube, high-performance SDD, analyze Na to U | |
| Software | QuantEZ for control of spectrometer functions and data analysis | |
| Options | Vacuum (NEX DE model), helium purge, automatic sample changers, single-position sample spinner, external PC with Microsoft Windows operating system, UPS, RPF-SQX Fundamental Parameters with Rigaku Scattering FP, SureDI support for 21 CFR Part 11 compliance, other software features | |
| Dimensions | 356 (W) x 260 (H) x 351 (D) mm | |
| Mass | Approx. 27 kg (core unit) | |
| Power requirements | 1Ø, 100 – 240 V, 1.5 A (50/60 Hz) | |
| Warranty | 2 years | |
