Refrigerated cooling Thermogravimetric-Differential Scanning Calorimeter (TG-DSC)
Enables low-temperature measurements from -40°C and controlled cooling beyond conventional limits

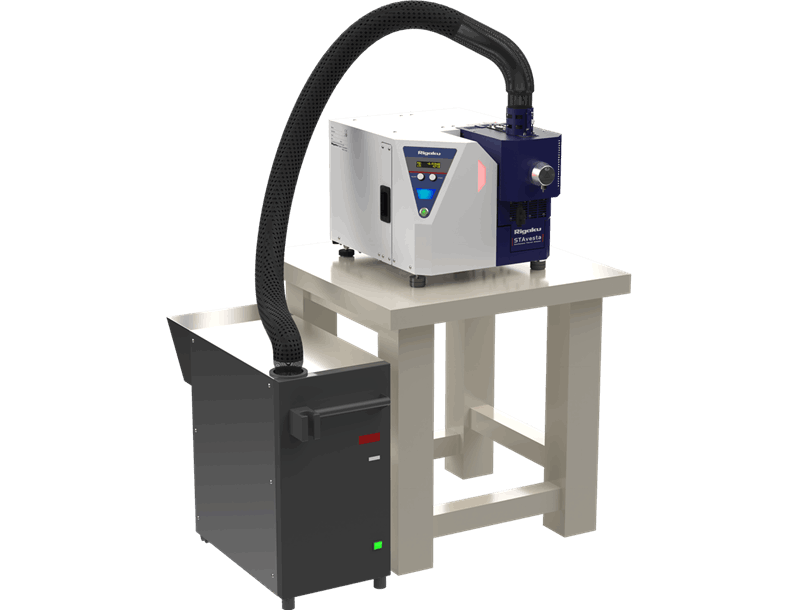

Refrigerated Cooling STAvesta Overview
For details on the basic performance of STAvesta, please refer to the main STAvesta page.
In gas adsorption studies using CO₂ and similar gases, lower temperatures generally increase the amount of gas adsorbed. Therefore, measurements below room temperature are often required. STAvesta/LR meets this need by enabling evaluation from as low as -40°C, making it possible to analyze gases that are difficult to adsorb at ambient temperatures and to more accurately assess the performance of adsorbent materials.
The unit also allows heating up to 700°C, making it suitable for pretreatment processes such as gas desorption from materials. By utilizing programmable heating and cooling sequences, both pretreatment and adsorption/desorption analysis can be performed in a single continuous run.
In addition, the optional automatic sample changer allows for automated, continuous measurement of multiple samples.
Refrigerated Cooling STAvesta Features
- High-precision horizontal differential triple-coil balance for accurate correction
- Compatible with a wide range of furnaces
- Standard furnace, high-temperature furnace, sample observation furnace, indirectly heated furnace, HUM furnace, refrigerated cooling furnace
- Extensive measurement system lineup to meet diverse analytical needs
Refrigerated Cooling STAvesta Specifications
| Model name | Thermo plus EVO3 STAvesta Refrigerated Cooling Simultaneous Thermal Analyzer |
|
|---|---|---|
| Technology | Thermogravimetry-Differential Scanning Calorimeter (TG-DSC) | |
| Measurement temperature range | Measurement temperature range -40 to 700°C | |
| Heating range(max) | 20°C/min | |
| Cooling rate | 5°C/min up to 0°C 10°C/min up to 100°C |
|
| Sample amount (max) | 1g (90 μL) | |
| TG range | ± 500 mg | |
| DSC range | ± 600 mW (100°C) ± 1,400 mW (1,000°C） ± 3,000 mW (1,500°C） |
|
| DTA range | ± 1,000 μV | |
| Measurement atmosphere | Dry gas (Simulated air, inert gas N₂, Ar, He) | |
| Gas flow type | Two-way type Protection tube atmospheric gas (simulate air, inert gas) 50 to 1000 mL/min Electric furnace purge gas (simulate air, inert gas) 200 mL/min |
|
| Options | Automatic sample changer (Sample: 52, reference: 3, calibration sample: 5) Power ON/OFF unit Refrigerated cooling safety cover |
|
| Dimensions | STAvesta 412(W) x 422(H) x 601(D)(mm) 412(W) x 705(H) x 601(D)(mm) (with ASC) Refrigerator 295(W) x 570(H) x 500(D)(mm) |
|
| Mass | STAvesta 50 kg 60 kg (with ASC), 66 kg (with ASC and safety cover) Refrigerator 61 kg |
|
| Power requirements | STAvesta 1Ø, AC100-120 V/200-240 V, 50/60 Hz, 15 A Refrigerator 1Ø, AC100 V, 50/60 Hz, 15 A |
|
