Sample observation DSC

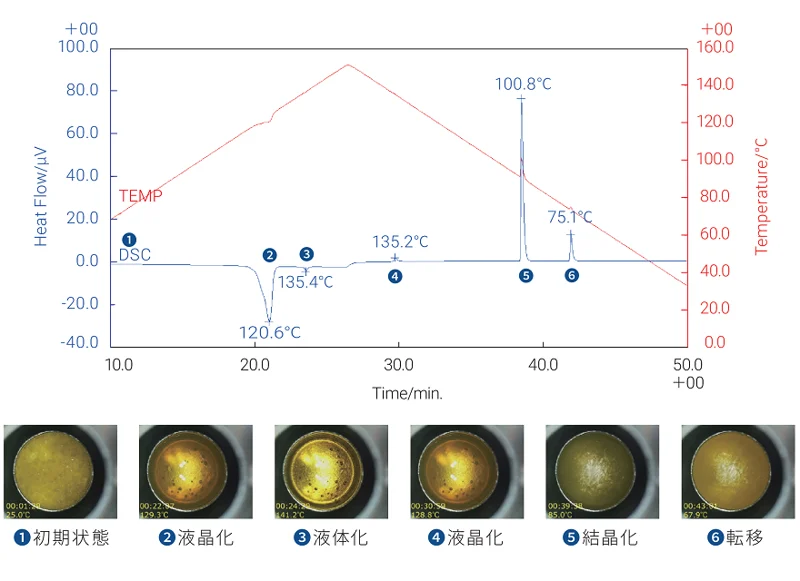

Any sample changes during measurement can be observed as they happen. The analysis results and sample images can be studied together, leading to new insights.

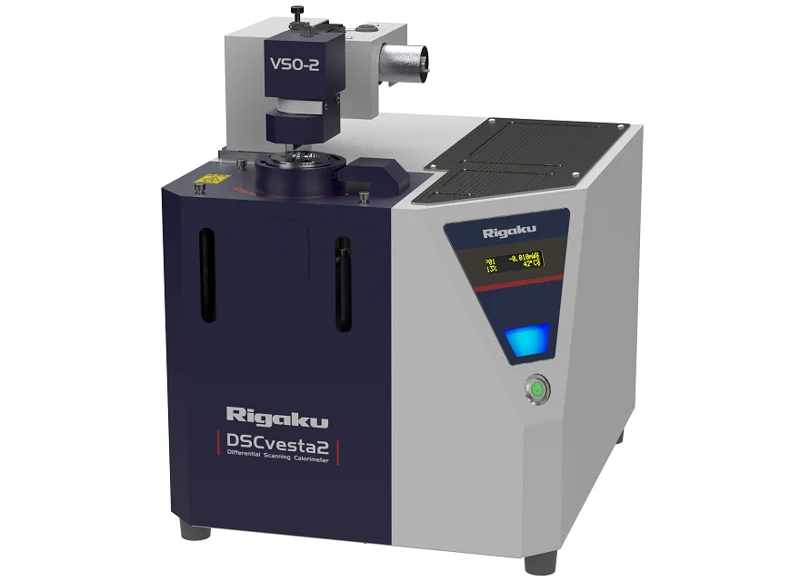

The differential scanning calorimeter with visual sample observation capability allows real-time observation and recording of sample changes from room temperature up to 725°C, utilizing a built-in microscope unit. Connecting optional cooling units enables measurements from -70°C, facilitating image capture in temperature ranges below 0°C. This setup enables observation of changes in sample shape, color, and fluidity, aspects that are often challenging to measure with DSC alone.
Sample Observation DSCvesta2 Overview
Easy-to-install microscope
The microscope is easy to attach and detach, allowing it to be retracted while maintaining its adjusted position when not in use.
Various cooling options
Three different cooling units can be selected depending on your measurement temperature range and temperature control performance. This allows for the acquisition of observation images during measurements in temperature regions below 0°C
- Refrigerated cooling: -95°C to 725°C
- LN₂ auto-filling cooling: -150°C to 725°C
- Circulator cooling: -10°C to 725°C
Compact automatic sample changer

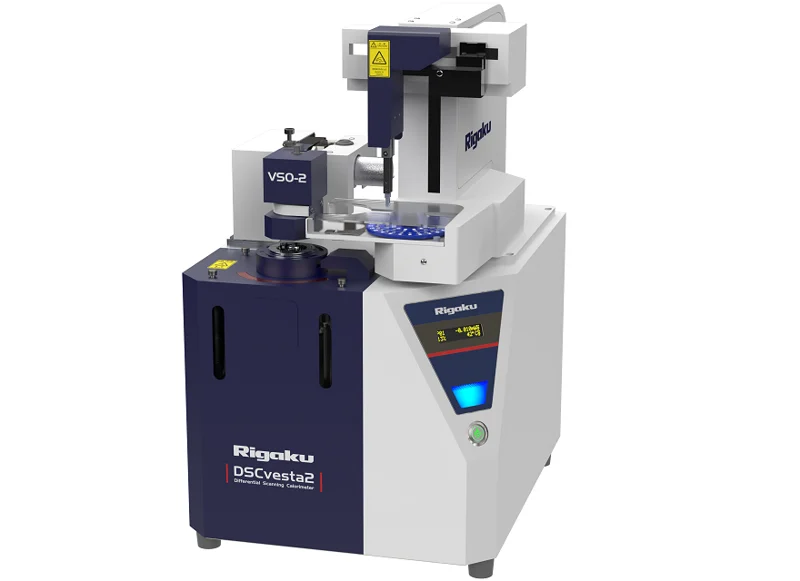

The automatic sample changer (ASC) holds up to 52 samples, 3 reference samples and allows for 1,000 consecutive measurements, ensuring high throughput.
Sample observation software
The thermal analysis measurement data and observation image data are correlated, enabling analysis operations with various functions provided in the analysis window of the measurement and analysis software. These functions include measurement length capabilities, displaying average RGB values for specified areas as color information, and other analytical operations.
Sample Observation DSCvesta2 Features
- Easy-to-install microscope
- Compact automatic sample changer
- Real-time observation and recording of sample change
- Various cooling options
- Sample observation software
Sample Observation DSCvesta2 Specifications
| Measurement principle | Heat flux type | |
|---|---|---|
| Measurement temperature range | -70℃ to 725℃ Cooling unit is required for temperatures below room temperature that can be selected according to the measurement temperature range Inert gas flow is required for measurements above 600°C |
|
| DSC scale | ±1,000 mW | |
| Heating rage(max) | 150℃/min When using a cooling unit, it varies depending on the cooling unit |
|
| Noise level (RMS) | 0.1 μW | |
| Measurement atmosphere | Air, inert gas | |
| Sample amount (max) | 90 μL | |
| Light | Epi-illumination LED built-in illumination | |
| Options | Automatic sample changer (Samples: 52, Reference samples: 3) Cooling unit (Refrigerated cooling, LN₂ auto-filling cooling, Bath circulator cooling) Safety cover |
|
| Dimensions | 380(W) x 503(H) x 509(D) mm 380(W) x 632(H) x 509(D) mm (with ASC) |
|
| Mass | 37 kg 47 kg (with ASC) |
|
| Power requirements | 1Ø, AC100-120 V/200-240 V, 50/60 Hz, 5 A | |
