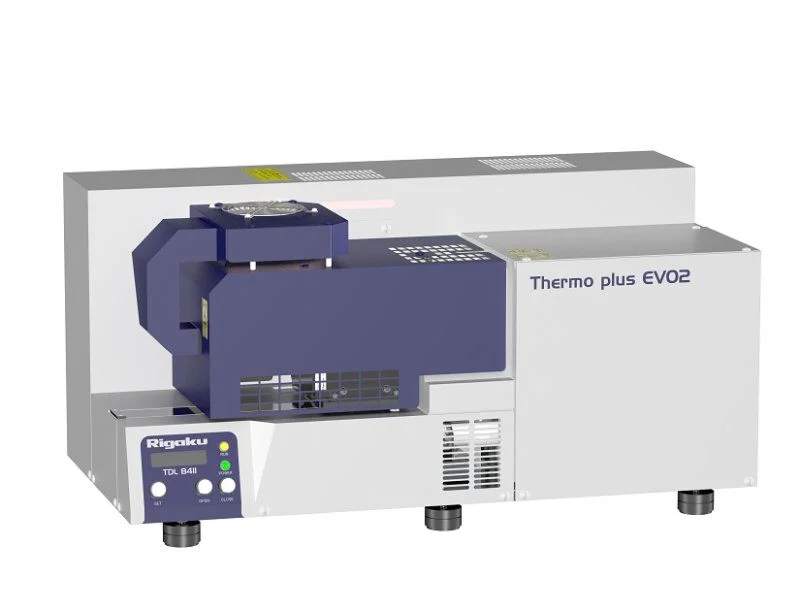

TDL8411

Thermal Dilatometer

Detects thermal expansion and contraction changes within samples with high reproducibility.

Utilizing a differential expansion method that cancels thermal expansion and contraction caused by the detection mechanism, this instrument enables precise and reproducible measurements, even for low-expansion materials or thin samples. An optional auto-sample changer can also be installed, contributing to energy savings and high throughput. Additional features include a built-in air-cooling fan to shorten cooling time after measurement completion and an automatic sample length measurement function.

TDL8411 Features

Uses the differential expansion method to cancel thermal expansion and contraction caused by the detection mechanism

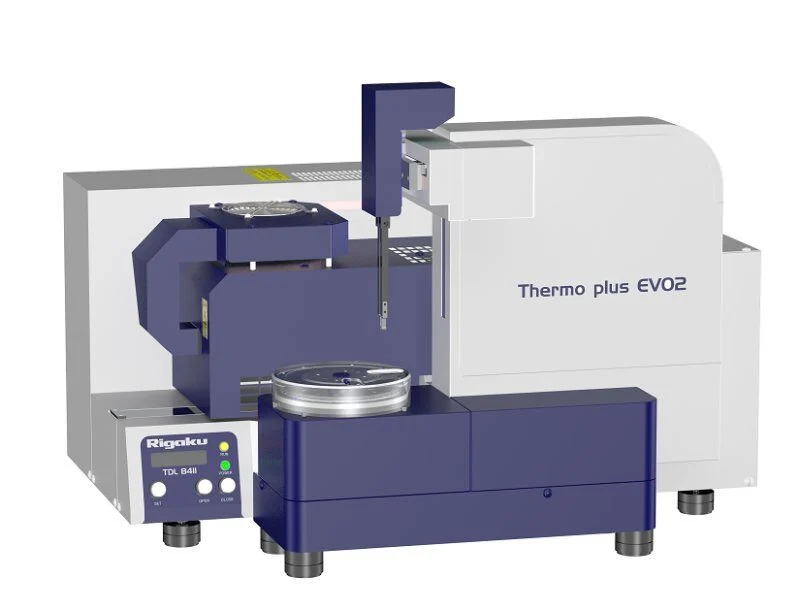

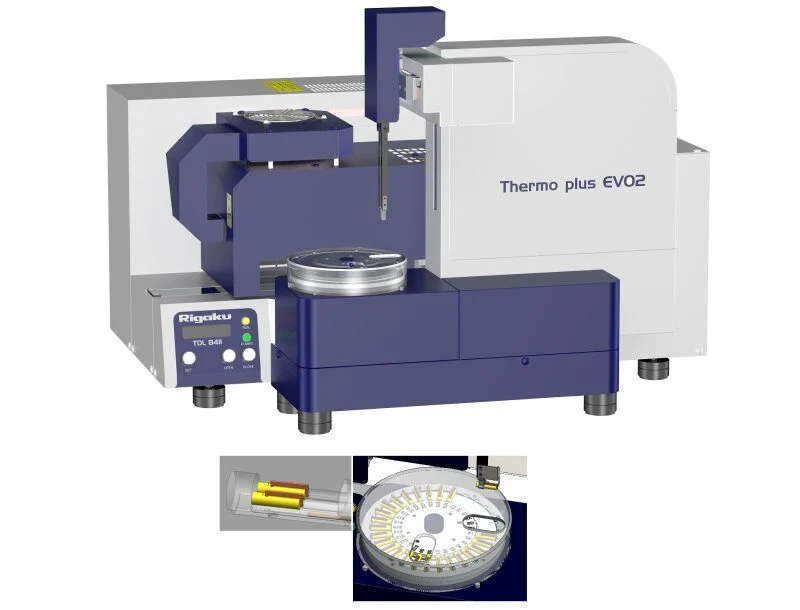

Energy-efficient and high throughput (a compact auto-sample changer accommodating up to 25 samples can be added)

Built-in air-cooled fan to reduce cooling time after measurement completion

Correction software based on the measured values of samples with known expansion coefficients

Automatic sample length measurement function

TDL8411 Specifications

Model name	Thermo plus EVO2 TDL8411
Technique	Thermal dilatometry
Measurement method	Compression loading
Method	Differential expansion method
Type	Standard	High temperature
Measurement temperature range	Room temperature to 1100°C	Room temperature to 1500°C
Support tube and detection rod material	SiO₂	Al₂O₃
Sample size	5 mm O.D., 10 to 20 mm in length
Maximum load	500 mN
Heating range(max)	40°C /min
Full scale	5000 μm
Measurement atmosphere	Air, inert gas
Automatic sample changer	Samples: 25

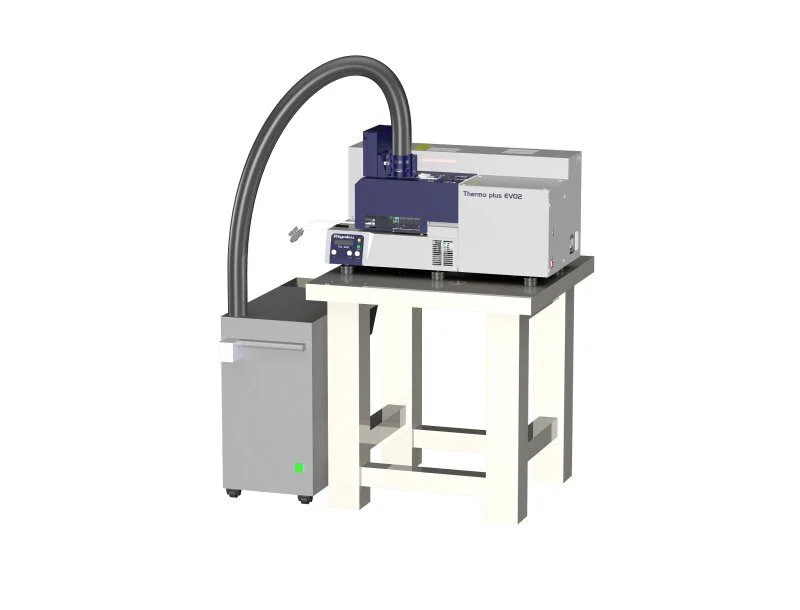

Options	Automatic sample changer Cooling unit (Refrigerated cooling)
Dimensions	702(W) x 356(H) x 362(D)(mm) 702(W) x 496(H) x 521(D)(mm) (with ASC)
Mass	28 kg 44 kg (with ASC)
Power requirements	1Ø, AC100-120 V/200-240 V, 50/60 Hz, 15 A
