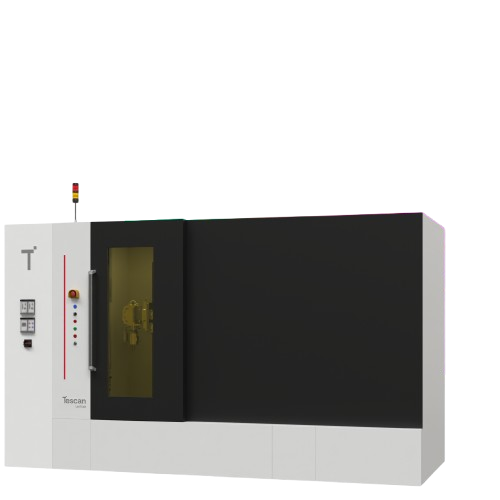

Tescan UniTOM® XL

Categories: Analytical Solutions, Biotechnology, Computed Tomography, Floor Standing CT Equipment, Food & Agriculture, Forensics, Life & Science, Mining & Minerals, Nanotechnology & Material Sciences, Oil & Gas, Partners, Product, Research & Academia, Sectors, TESCAN

Product Details

Tescan UniTOM® XL, and its smaller version, CoreTOM® are designed for research environments where temporal resolution, imaging flexibility, and experimental throughput matter. A high-power X-ray source, fast large-field detector, and automated multi-sample workflows work together to keep your lab focused on insight, not setup. This results in faster scans, richer data, and true 4D visualization of materials in action.

High temporal resolution for dynamic, in situ, and continuous 3D imaging

Large-sample and multi-scale capability with a spacious scanning envelope

Optimized throughput and reproducibility through automated batch scanning

Seamless workflow control with Acquila™ and Panthera™ software integration

WHERE TESCAN UNITOM® XL MAKES THE DIFFERENCE

High Temporal Resolution without Compromise

Capture real-time sample changes with continuous 4D scanning at temporal resolutions under three seconds, without sacrificing image quality or stability.

Optimized Throughput for Shared Facilities

Maximize productivity through automated batch scanning and rapid acquisition workflows. Tescan UniTOM® XL supports multiple users and high daily sample volumes with consistent results.

Flexible Imaging for Every Sample

From centimeter-scale components to fine structural details, the versatile sample stage and ten motorized axes accommodate a broad range of sample sizes and orientations.

True Multi-Scale Imaging

Volume of Interest Scanning (VOIS) enables detailed high-resolution imaging within larger samples — providing both context and clarity in a single workflow.

In Situ and Dynamic Experiment Capability

Perform uninterrupted insitu studies with slip-ring technology and optional external connection interfaces, supporting mechanical, thermal, or chemical testing during live scanning.

Seamless Workflow Integration

Acquila™ and Panthera™ software environments manage acquisition, reconstruction, and visualization — delivering complete experimental control from setup to analysis.

Reliable, Non-Destructive Analysis

Generate repeatable, quantitative 3D and 4D datasets without altering the sample, ensuring structural integrity for ongoing or correlative studies.

Tescan Acquila™ and Panthera™ Software Ecosystem

AUTOMATION THAT STREAMLINES 4D IMAGING WORKFLOWS

Tescan UniTOM® XL integrates seamlessly with the Acquila™ and Panthera™ software environment, providing coordinated control of acquisition, reconstruction, and visualization. Dynamic CT experiments may run without interruption, with reconstruction and analysis carried out alongside acquisition to maintain workflow efficiency, ensuring uninterrupted operation and maximum throughput.

The software suite offers automated workflow management, live monitoring, and real-time visualization in an intuitive interface that reduces setup time and ensures reproducible results. For dynamic or in situ studies, Acquila™ and Panthera™ synchronize imaging with external rigs and detectors to maintain full experimental control throughout the 4D imaging process.

Tescan UniTOM® HR 2 Applications

Tescan UniTOM® XL in Materials Science

High-resolution, non-destructive imaging for structural and dynamic analysis

Tescan UniTOM® XL in Semiconductors

High-resolution 3D and 4D micro-CT, from packages to complete electronic assemblies

Tescan UniTOM® XL in Batteries

High-resolution 3D and 4D micro-CT for battery structure, operation, and degradation

Tescan UniTOM® XL in Life Science

Versatile 3D micro-CT for biological, clinical, forensic, and natural history research

Tescan UniTOM® XL in Geoscience

High-resolution characterization of geological samples, from 3D pore networks to 4D fluid flow
