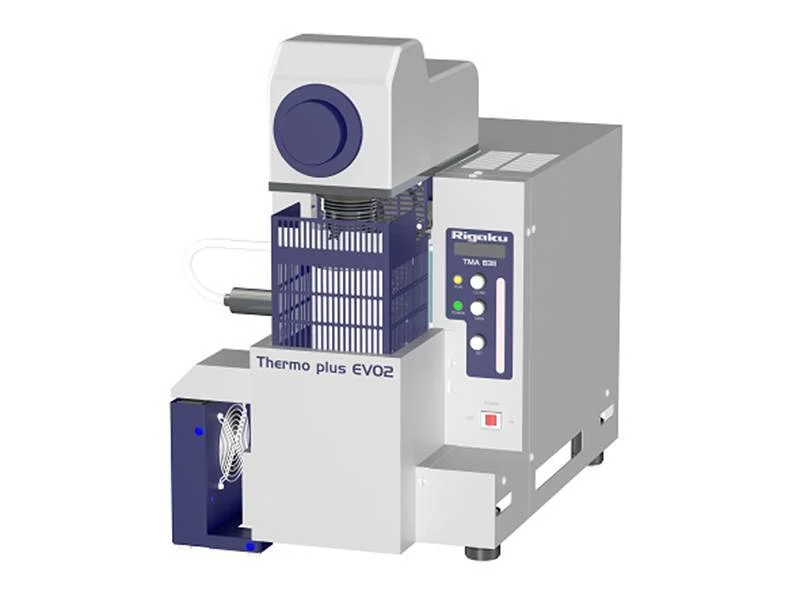

TMA8311

Thermomechanical Analyzer

Measurement of a mechanical property change with respect to temperature

TMA is technique in which a non-oscillatory load is applied such as in compression, tension or bending, measuring the changes in the sample shape when the sample is heated or cooled. The TMA method includes measurement modes such as compression loading method, tensile loading method, penetration method and 3-point bending based on the sample shape and the objective of the measurement. TMA is widely used to measure the thermal expansion ratio and softening temperature of a sample.

TMA8311 Overview

Rigaku’s TMA adopts the differential expansion principle that cancels the thermal expansion or shrinkage generated from the detection mechanism itself. In addition to constant load, the load control can be set to two types: constant rate loading mode and sine-wave cyclic loading mode.

Sample controlled TMA (SCTMA), where the shrinkage rate controls the temperature, can be installed as an option that is effective for the simulation of sintering in ceramics, production of sintered materials with suppressed grain growth.

TMA8311 Features

High-sensitivity, high-precision measurement by the differential method

Multi-measurement system that excels in expandability

Flexible handling of various sample sizes

Notable enhancement of heating and cooling rates enabled by a compact electric furnace

Simple sample setting mechanism, the first of its kind in differential TMA

Safety foremost emphasized on the entire system

Different measurement methods

Compression loading method
Tensile loading method
Penetration method
High-sensitivity differential penetration method

Measuring temp. range

Standard model: Ambient to 1100°C
High-temperature model: Ambient to 1500°C
Low-temperature model: -150 to 600°C

TMA8311 Specifications

Technique	Thermomechanical analyzer
Benefit	Measurement of a mechanical property change with respect to temperature
Technology	Differential expansion principle where the thermal expansion or shrinkage generated from the detection mechanism itself can be canceled
Core attributes	Multi-measurement system that excels in expandability
Computer	External PC
Core dimensions	380 (W) x 580 (H) x 580 (D) (mm)
Mass	30 kg (core unit)
Power requirements	1Ø, AC100-120 V/200-240 V 50/60 Hz 15 A
