The benchtop solution for sample preparation- perfect pellets at the press of a button
Use
- Preparation of pressed pellets in steel rings (40 or 51.5 mm diameter) or aluminum cups, free pressing for analysis by X-ray fluorescence and diffractometry
Material
- Different materials, raw meal, clinker, cement, slag, ores, oxidic material, ferroalloys (feed size 100µm)
Operation mode
- Semi-automatic
All advantages at a glance
Efficient pellet preparation

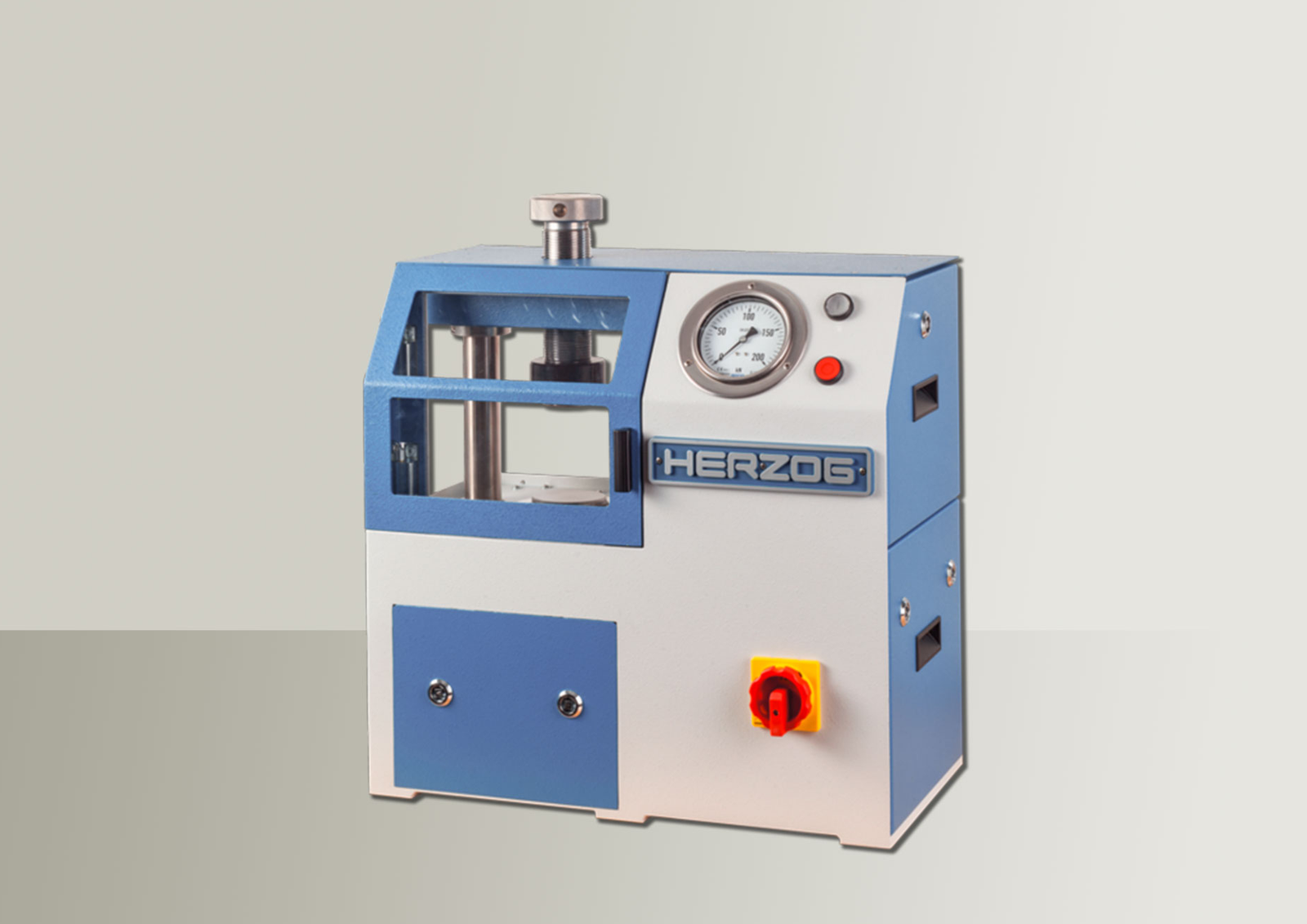

The TP 20 E is the bench-top laboratory press for easier and more efficient preparation of pressed pellets for XRF analysis. The semiautomatic TP 20 E produces perfect pellets at the press of a button.
Improved operator comfort – Increased efficiency
The pressure is built up automatically using a hydraulic aggregate instead of a hand pump. This means a significant reduced physical workload, more comfortable working conditions and efficiency enhancement for the operator.
Easy to use – Safe to handle

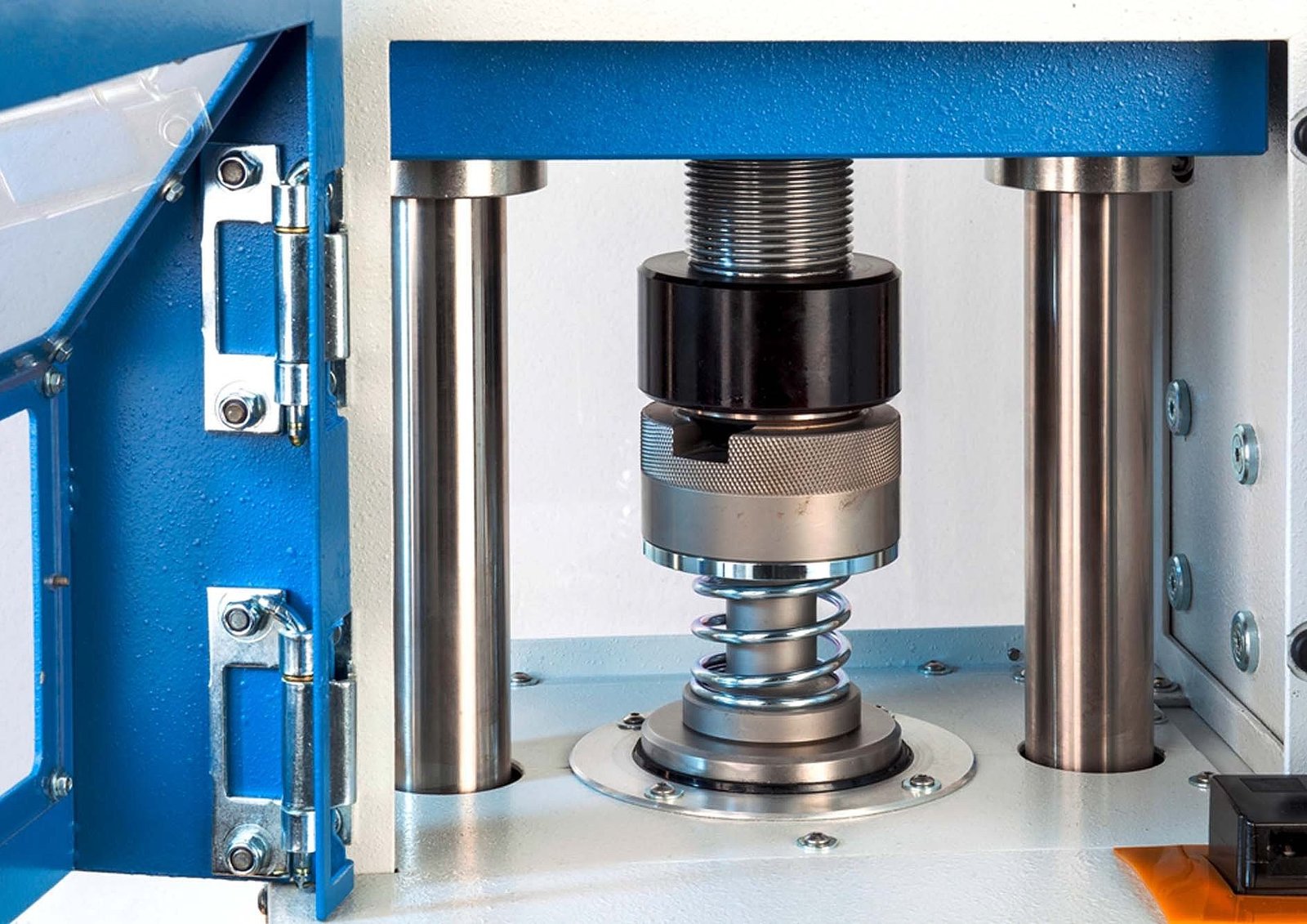

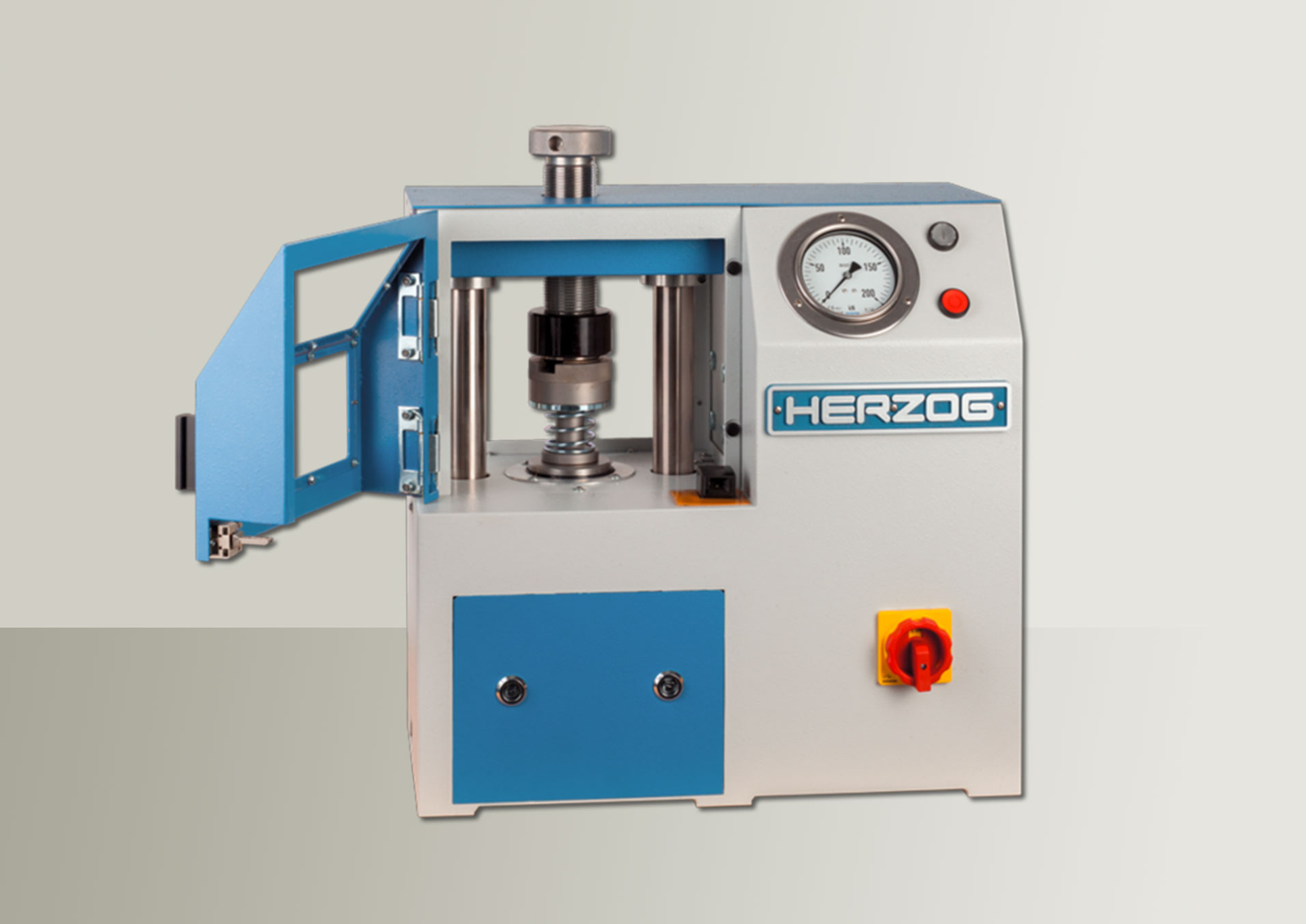

The sample material is filled into the press tool manually. The operator inserts the press tool in the machine and closes the safety input/output flap. The machine will not start until the flap is closed.
By pushing the ‘start’ button, the piston moves out until it achieves its maximum pressure force of 200 kN and the motor stops. The hydraulic system keeps the pressure until the operator pushes the ‘stop’ button to let the piston move backwards.
For safety reasons, it is not possible to open the input/output flap during the complete process. The flap is released as soon as the piston is retracted completely. Then the press tool with the pressed pellet can be removed and the machine is ready for the next sample.

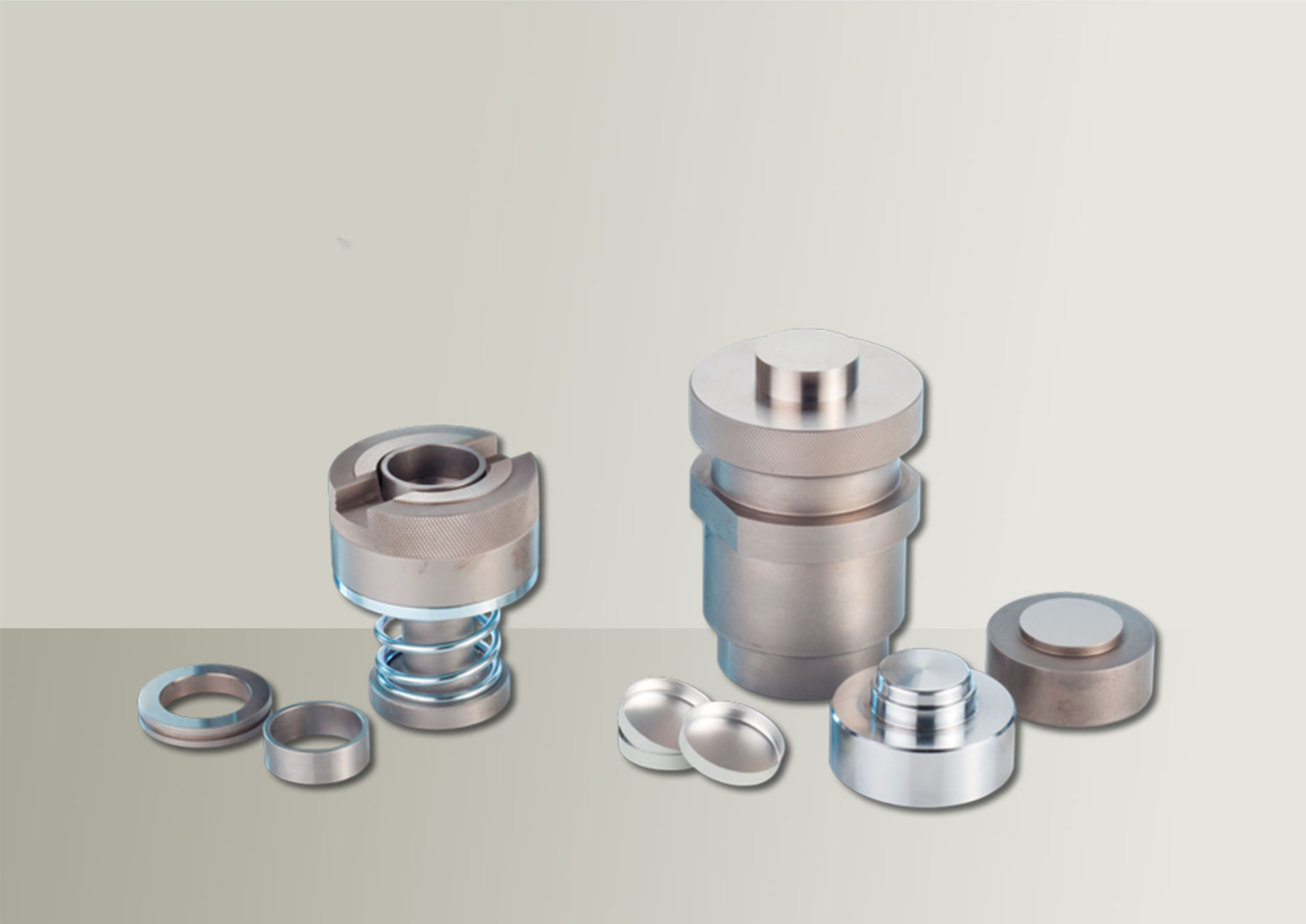

Design options:
- Press tool 40 mm diameter for free pressing
- Press tool 40 mm in aluminium cups
- Press tool 40 mm for pressing in steel rings
- Press tool 51.5 mm for pressing in steel rings
- Further tools on request
- Ring cleaning device
