The economic solution for pellet preparation- proven technology at the highest quality standard
Use
- Preparation of pressed pellets in steel rings (40 or 51.5 mm diameter) or aluminum cups, free pressing for analysis by X-ray fluorescence and diffractometry
Material
- Different materials,e.g., raw meal, clinker, cement, slag, ores, oxidic material, ferroalloys (feed size 100µm)
Operation mode
- Manual
All advantages at a glance
Flexibility

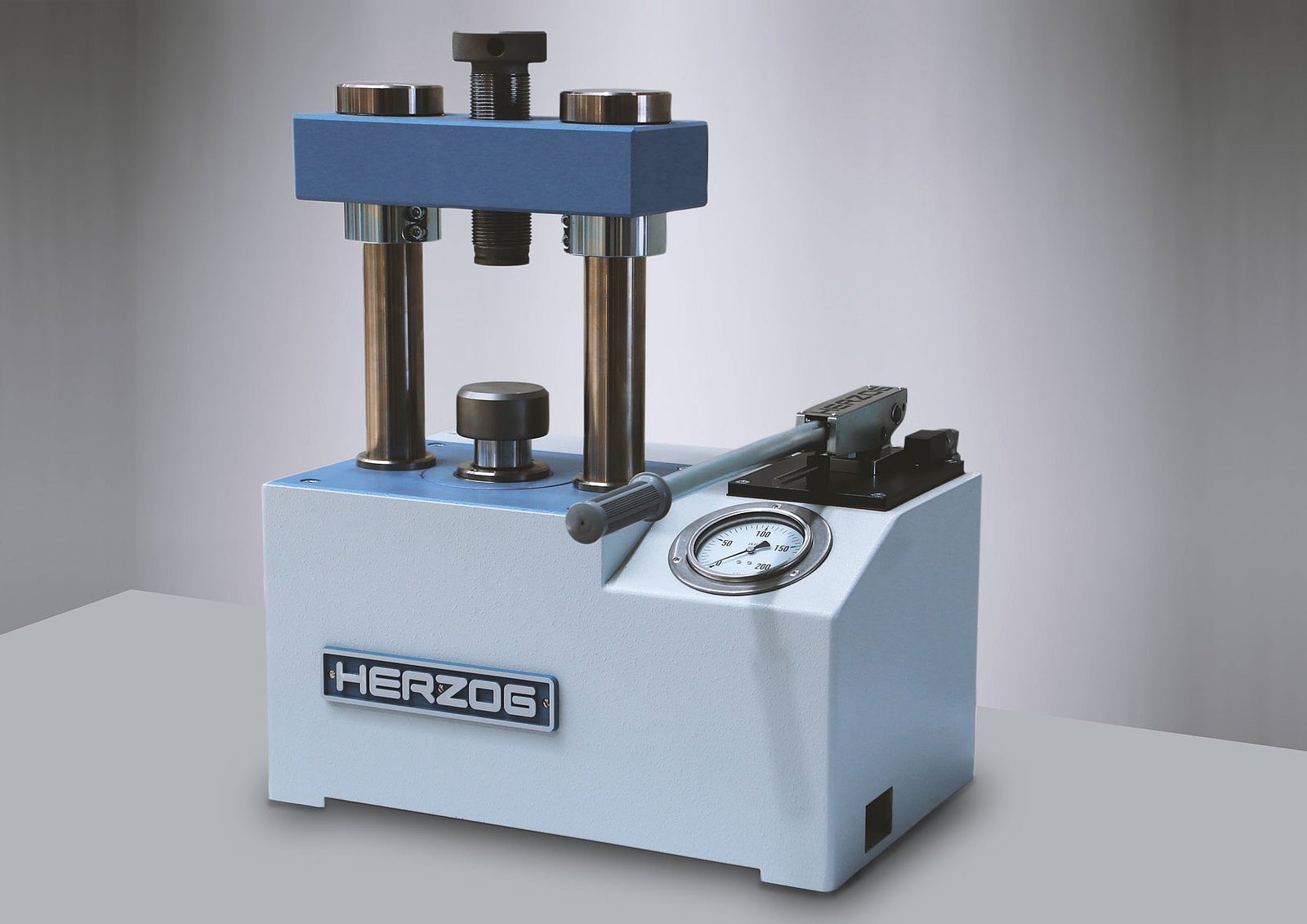

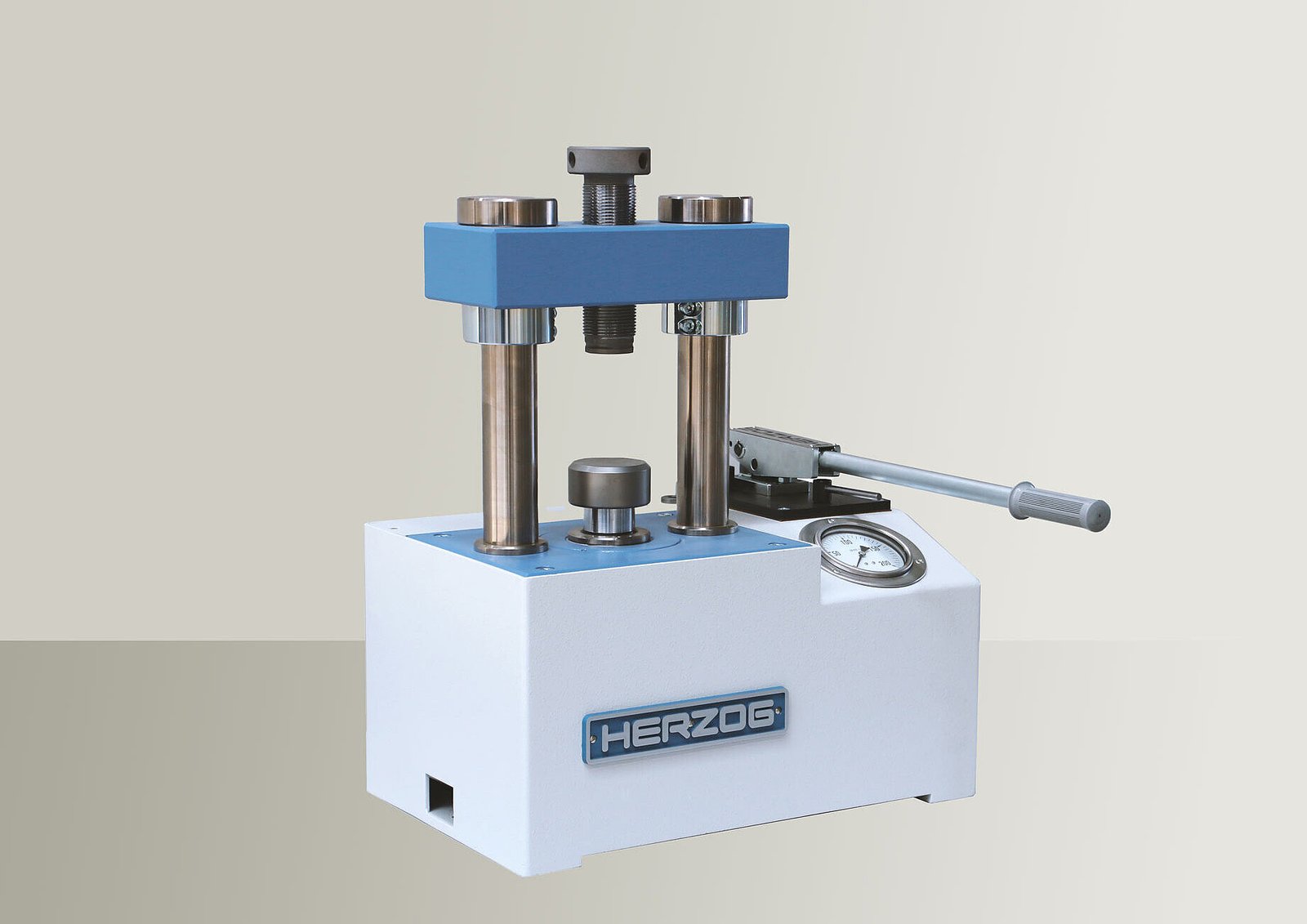

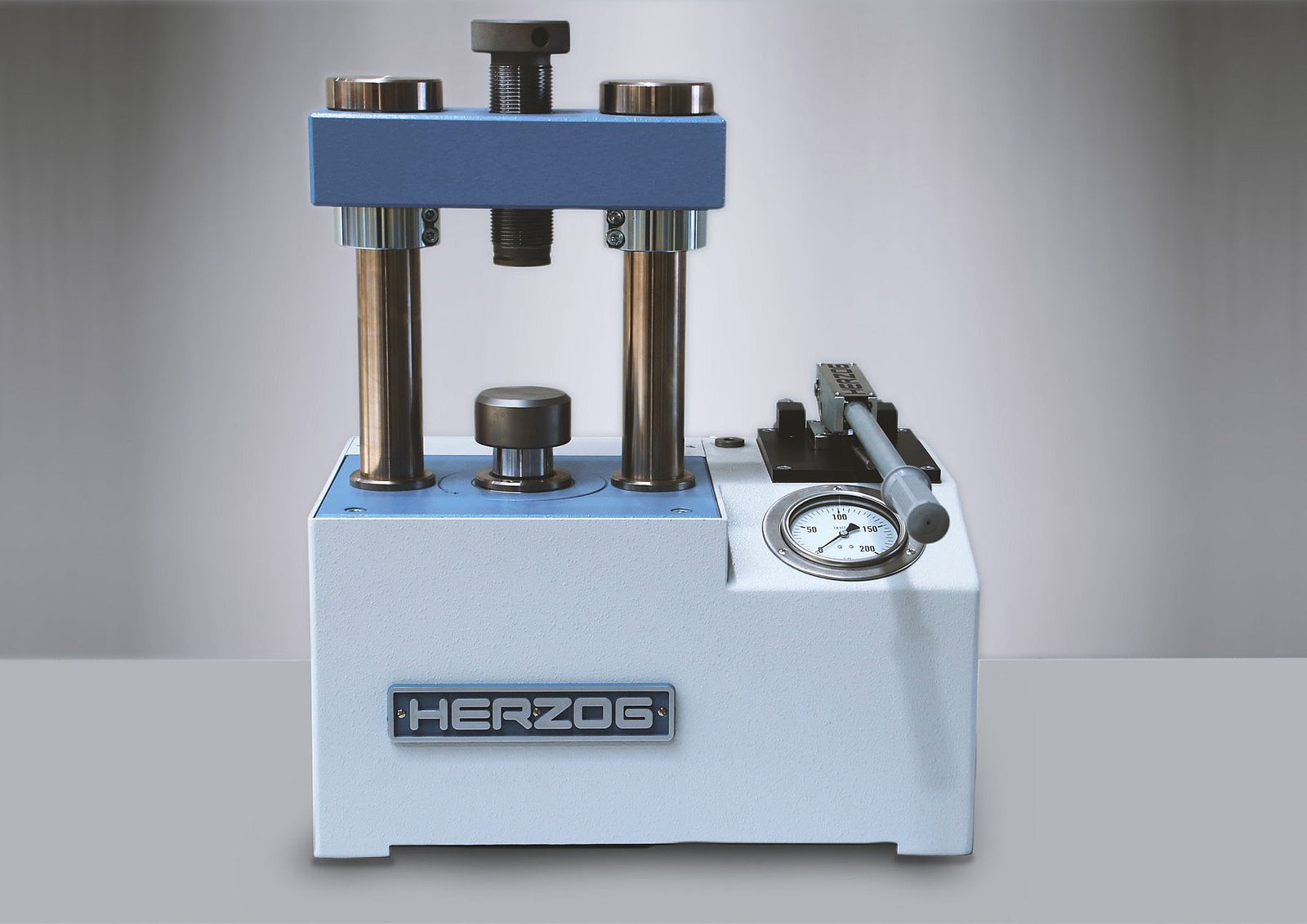

Pellets can be pressed into steel rings or into aluminum cups. Furthermore, pressed pellets can be produced by free pressing. For each type of pellet, the TP can be equipped with the proper pressing tool. The machine is available as a a variant with maximum press forces of 200 kN (TP 20) and 400 kN (TP40).
Economic solution
Due to its low level investment and maintenance costs as well as the long service life, the TP is the perfect solution for the economic operation of your laboratory.
Easy handling
Each tool can be changed very easily. The hydraulic pump is operated by a hand lever. The direction of movement of the plunger is reversed by switching over the valve to permit simple access to the dies installed.
The threaded spindle serves as a counter-bearing to absorb the compacting pressure and to reduce the no-load stroke.
Easy operation with TP/2d
The additional intermediate cross beam in the TP/2d allows the upper traverse to be swiveled to the side. This allows the pressing tool to be positioned in the machine and filled there. This makes the machine even easier, more effective, and more ergonomic to operate.
Design options:
- Press tool 40 mm diameter for free pressing
- Press tool 40 mm in aluminum cups
- Press tool 40 mm for pressing in steel rings
- Press tool 51.5 mm for pressing in steel rings
- Ring cleaning device manual (separate)
