Sequential Wavelength Dispersive XRF Spectrometer for Large Samples
Elemental analysis of solids, liquids, powders, alloys and thin films
Rigaku’s unique ZSX Primus 400 sequential wavelength dispersive X-ray fluorescence (WDXRF) spectrometer was specifically designed to handle very large and/or heavy samples. Accepting samples up to 400 mm diameter, 50 mm thick and 30 kg mass, this system is ideal for analyzing sputtering targets, magnetic disks, or for multilayer film metrology or elemental analysis of large samples.

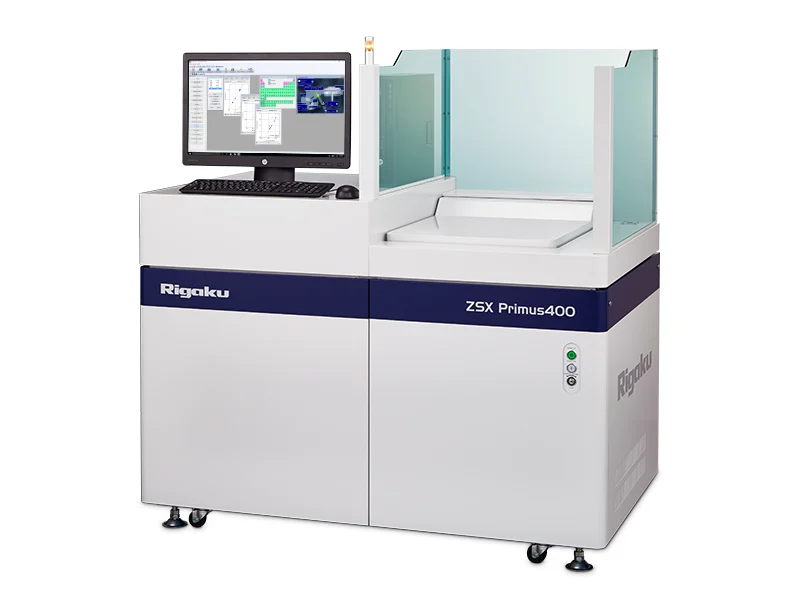

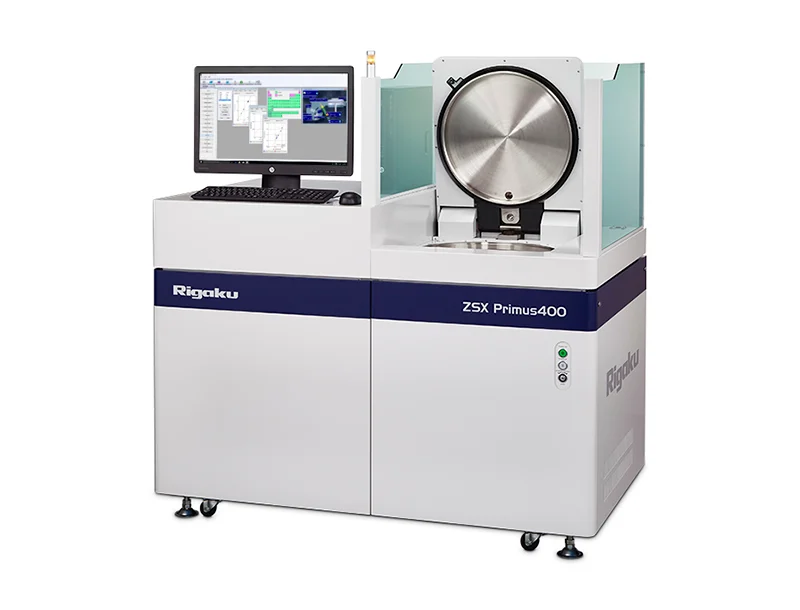

ZSX Primus400 Overview
XRF with customized sample adapter system

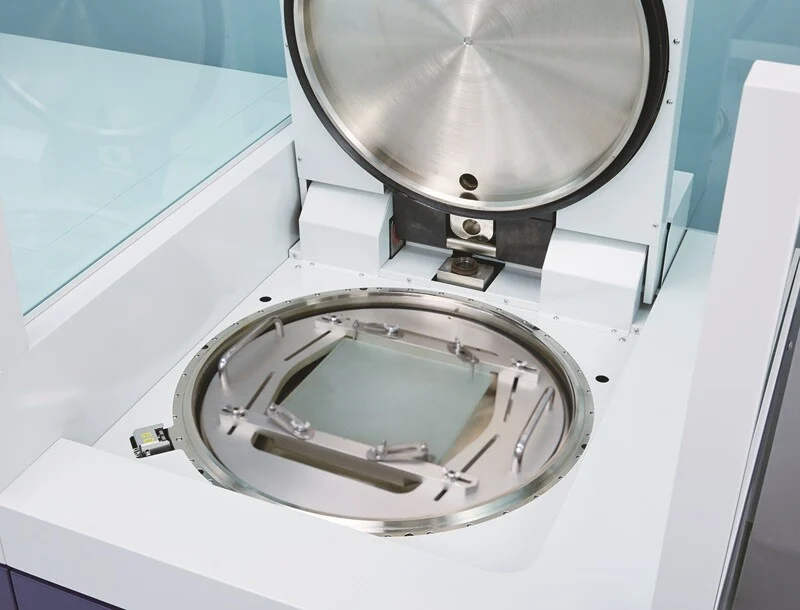

Having the versatility to adapt to your specific sample types and analysis needs, this WDXRF spectrometer is adaptable to various sample sizes and shapes using optional (made to order) adapter inserts. With a variable measurement spot (30 mm to 0.5 mm diameter, with 5-step automatic selection) and mapping capability with multi-point measurements to check for sample uniformity, this uniquely flexible instrument can dramatically streamline your quality control processes.
XRF with available camera and special lighting
Optional real-time camera allows the analysis area to be viewed within software. The operator has complete certainty as to what is being measured.
Traditional WDXRF analytical capabilities
All analytical capabilities of a traditional instrument are retained in this “large sample” variant. Analyze beryllium (Be) through uranium (U) with high-resolution, high-precision WDXRF spectroscopy, from solids to liquids and powders to thin films. Analyze wide composition ranges (ppm to tens of percent) and thicknesses (sub Å to mm). Optionally available is diffraction peak interference rejection, for optimal results for single-crystal substrates. Rigaku ZSX Primus 400 wavelength dispersive X-ray fluorescence (WD-XRF) spectrometer complies with industry standards SEMI and CE.
ZSX Primus 400 applications
- Sputtering target composition
- Isolation films: SiO2, BPSG, PSG, AsSG, Si₃N₄, SiOF, SiON, etc.
- High-k and ferro-dielectric films: PZT, BST, SBT, Ta₂O₅, HfSiOx
- Metal films: Al-Cu-Si, W, TiW, Co, TiN, TaN, Ta-Al, Ir, Pt, Ru, Au, Ni, etc.
- Electrode films: doped poly-Si (dopant: B, N, O, P, As), amorphous-Si, WSix, Pt, etc.
- Other doped films (As, P), trapped inert gas (Ne, Ar, Kr, etc.), C (DLC)
- Ferroelectric thin films, FRAM, MRAM, GMR, TMR; PCM, GST, GeTe
- Solder bump composition: SnAg, SnAgCuNi
- MEMS: thickness and composition of ZnO, AlN, PZT
- SAW device process: thickness and composition of AlN, ZnO, ZnS, SiO₂ (piezo film); Al, AlCu, AlSc, AlTi (electrode film)
ZSX Primus 400 accessories
- Sample camera with special lighting allows the analysis point to be viewed on screen
- Diffraction interference rejection provides accurate results for single-crystal substrates
- Fundamental Parameters software for thin film analysis
ZSX Primus400 Features
- Large sample analysis ∘ Up to 400 mm (diameter) ∘ Up to 50 mm (thickness) ∘ Up to 30 kg (mass)
- Sample adapter system ∘ Adaptable to various sample sizes
- Measurement spot ∘ 30 mm to 0.5 mm diameter ∘ 5-step automatic selection
- Mapping capability ∘ Allows multipoint measurements
- General purpose ∘Analyze Be – U ∘ Elemental range: ppm to % ∘ Thickness range: sub Å to mm
- Diffraction interference rejection (option) ∘ Accurate results for single-crystal substrates
- Compliance with industry standards ∘ SEMI, CE marking
- Small footprint ∘ 50% footprint of the previous model
- Sample view camera (option)
ZSX Primus400 Specifications
| Technique | Wavelength dispersive X-ray fluorescence | |
|---|---|---|
| Benefit | Elemental analysis of solids, liquids, powders, alloys and thin films | |
| Technology | Tube below sequential WDXRF | |
| Attributes | 3 or 4 kW sealed X-ray tube, 48-position autosampler, Be to U, vacuum, r-θ stage/mapping | |
| Options | He-flush Additional analyzing crystals Various sample holders Camera |
|
| Computer | External PC, MS Windows OS, ZSX software | |
| Dimensions | 1376 (W) x 1439 (H) x 890 (D) mm | |
| Mass | Approx. 800 kg (core unit) | |
| Power requirements | 3Ø, 200 VAC 50/60 Hz, 8 kW | |
